Remove/Install WiFi Antenna In Right Of Instrument Panel - AR82.85-P-0014MFA
Model 118, 177, 243, 247 with code 548 (Connect 20 MID (NTG6))
Model 118, 177, 243, 247 with code 549 (Connect 20 HIGH (NTG6))
Model 118, 177, 247 with code 547 (Connect 20 Entry (NTG6))

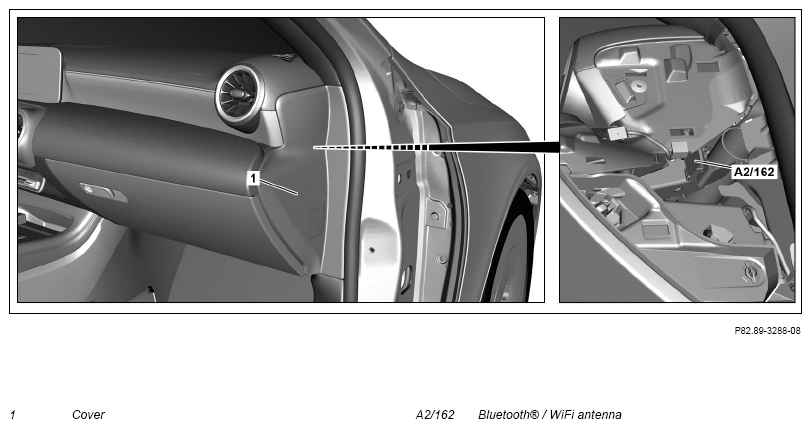

Fig 1: WiFi Antenna In Right Of Instrument Panel Components Location - Model 247 With Code 547; 548; 549 (Shown On Model 177.0)
Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Unclip trim (1) at right. | Fig 2 | |
| 3 | Unclip Bluetooth®/WiFi antenna (A2/162) carefully from the holder. | ||
| 4 | Release and disconnect electrical connector from Bluetooth®/WiFi antenna (A2/162). | ||
| 5 | Install in the reverse order. |
