Remove/Install WiFi Antenna In Left Of Instrument Panel - AR82.85-P-0012MFB
Model 243, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove left trim from instrument panel. | Fig 2 | |

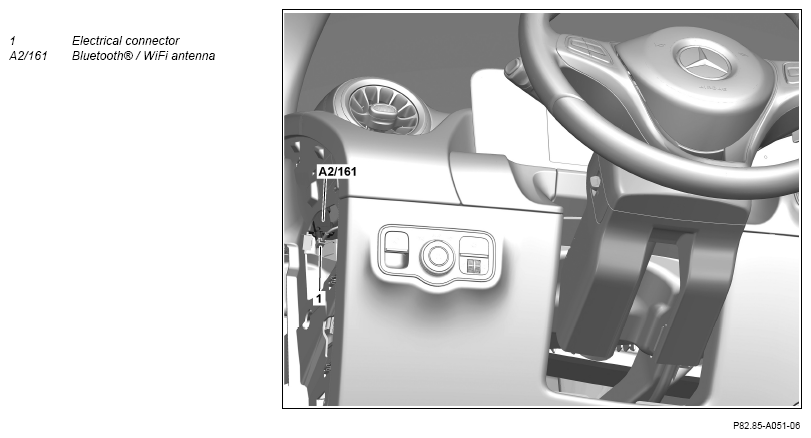

| 3 | Carefully unclip the Bluetooth®/WiFi antenna (A2/161) from the holder. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 4 | Release and disconnect electrical connector (1) from Bluetooth®/wi-fi antenna (A2/161). | ||
| 5 | Install in the reverse order. |
