Remove/Install WiFi Antenna In Center Of Instrument Panel - AR82.85-P-0013MFB

Model 243, 247 with code 549 (Connect 20 HIGH (NTG6))

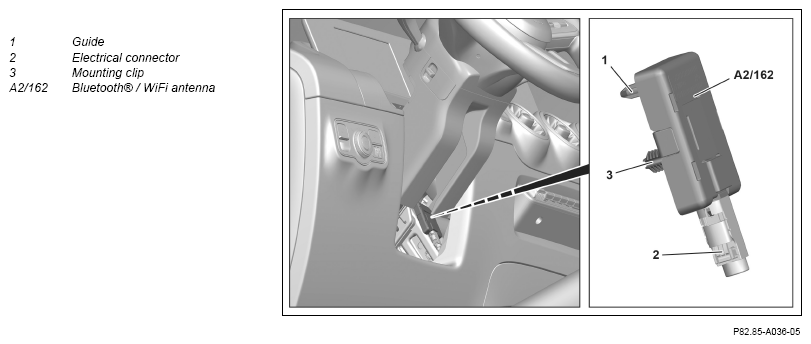

Fig 1: WiFi Antenna In Center Of Instrument Panel Components Location - Model 247 With Code 549

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Move steering wheel to uppermost position.
2	Release and disconnect electrical connector (2).
3	Remove Bluetooth®/WiFi antenna (A2/162) with retaining clip (3).	Check guide (1) is correctly seated. Dismantling tool	Fig 2
4	Install in the reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
