Remove/Install Telephone Antenna Splitter - AR82.70-P-8956MFA
Model 118, 177, 247 with code 503 (Remote-controlled parking)
Model 118, 177, 247 with code 899 (Multifunction telephony)
Model 118, 177, 247 with code B24 (Remote control for Auxiliary heating)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000MFA | |

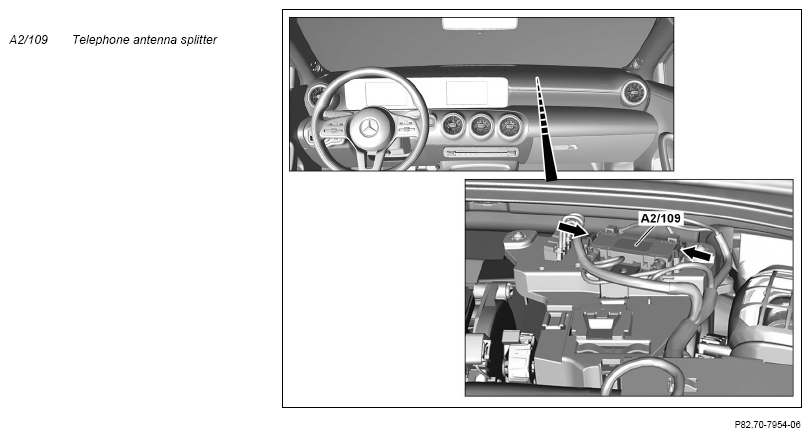

| 2 | Unclip telephone antenna splitter (A2/109) at arrows. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 3 | Unlock and disconnect electrical connectors at telephone antenna splitter (A2/109) and remove telephone antenna splitter (A2/109). | ||
| 4 | Install in the reverse order. |
