Remove/Install SDARS Antenna - AR82.62-P-0015MFB
Model 177.0, 243, 247 with code 536 (Sirius satellite radio complete system)

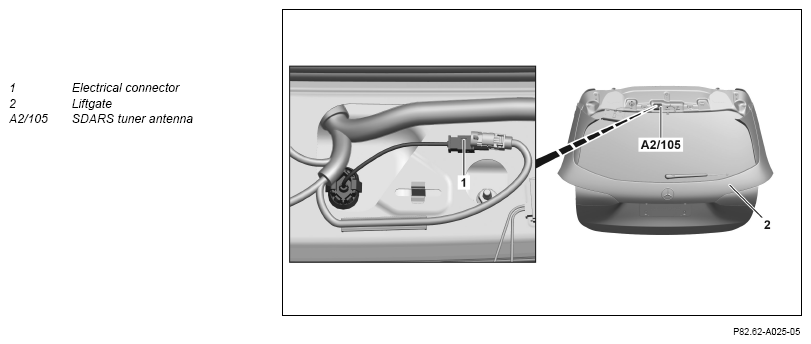

Shown on model 247.0 with code 536 (SIRIUS satellite radio)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center rear spoiler. | Model 177.0, 247.0/7 with code 536 (Sirius satellite radio complete system) | AR72.20-P-4000MFA |
| Model 243, 247.6 with code 536 (Sirius satellite radio complete system) | AR72.20-P-4000MFD | ||
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unclip SDARS tuner antenna (A2/105) from tailgate (2) and remove outwards. | ||
| 4 | Install in the reverse order. |
