Remove/Install Emergency Call System Antenna - AR82.95-P-0017MFX
Model 243.6, 247.6 with code 362 (HERMES communications module LTE)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove luggage compartment trim on left side. | AR68.30-P-4805MFX | |

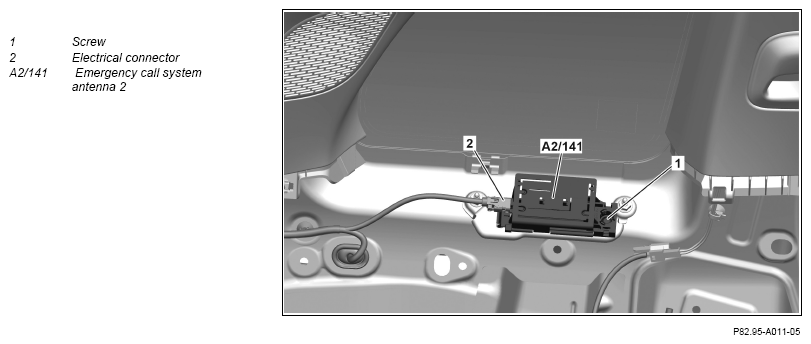

| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Remove screw/bolt (1). | ||
| 5 | Remove emergency call system antenna 2 (A2/141). | ||
| 6 | Install in the reverse order. |
