Antenna System, Detailed Information - GF82.62-P-0020A
Model 118.6
Model 177.0
Model 243, 247
Overview:
This document contains information on:
- Overview of system components
- Telephone antennas connection
- Emergency call system antennas connection
- GPS antenna connection
- Rear window antennas connection
- Windshield antennas connection
- Rear spoiler antenna connection

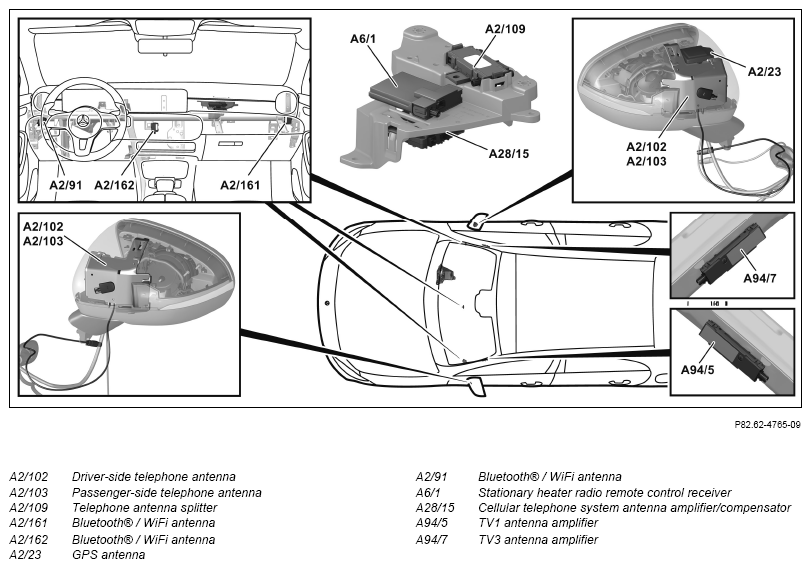

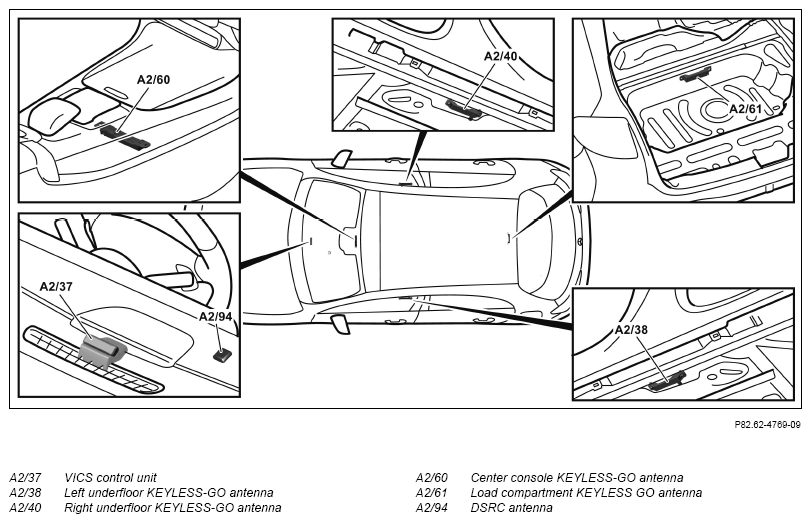

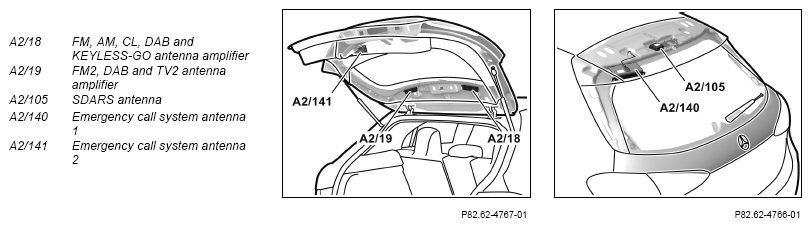

Overview of system components
In the following, the locations of system components of the antenna system are shown.
| Antenna | Function | Item | SA code |
|---|---|---|---|
| Driver's side telephone antenna (A2/102) | Telephone, stationary heater | Driver-side outside mirror | B24 (Remote control for stationary heater)/899 (Multifunction telephony) |
| Front passenger side telephone antenna (A2/103) | Telephone, stationary heater | Passenger-side outside mirror | B24 (Remote control for stationary heater)/899 (Multifunction telephony) |
| Emergency call system antenna 1 (A2/140) | Emergency call | Rear spoiler, on left | 362 (HERMES LTE) |
| Emergency call system antenna 2 (A2/141) | Emergency call | Model 243.6, 247.6: under left rear side window | 362 (HERMES LTE) |
| Except model 243.6, 247.6: On holder in left tailgate | |||
| GPS antenna (A223) | Navigation | Passenger-side outside mirror | 355 (Extended functions MBUX)/362 (HERMES LTE) |
| SDARS antenna (A2/105) | Radio mode | Rear spoiler, center | 536 (SIRIUS satellite radio) |
| Left underbody KEYLESS-GO antenna (A2/38) | KEYLESS-GO | Underbody in area of left B-pillar | 889 (KEYLESS-GO) |
| Right underbody KEYLESS-GO antenna (A2/40) | KEYLESS-GO | Underbody in area of right B-pillar | 889 (KEYLESS-GO) |
| Center console KEYLESS-GO antenna (A2/60) | KEYLESS-GO | Center console | 889 (KEYLESS-GO) |
| Load compartment KEYLESS-GO antenna (A2/61) | KEYLESS-GO | Front of load compartment well | 889 (KEYLESS-GO) |
| VICS control unit (A2/37) | Navigation | Instrument panel center | 498 (Japan version) |
| DSRC antenna (A2/94) | Toll system | Instrument panel center | 498 (Japan version)/835 (Additional parts for South Korea vehicles) |
| Bluetooth®/WiFi antenna (A2/91) | Telephone, media mode, internet | Driver's side cockpit crossmember | - |
| Bluetooth®/WiFi antenna (A2/161) | Telephone, media mode, internet | Front passenger side cockpit crossmember | 548 (Connect 20 MID (NTG6))/549 (Connect 20 High (NTG6)) |
| Bluetooth®/WiFi antenna (A2/162) | Telephone, media mode, internet | Instrument panel center | 549 (Connect 20 High (NTG6)) |
| Rear window antenna | Radio mode, TV mode, KEYLESS-GO, central locking system | Rear window | - |
| Windshield antenna | TV mode | Windshield | 865 (TV tuner) |
| Rear spoiler antenna | Radio mode | Rear spoiler | - |
| Receiver, antenna splitter, amplifier, compensator | Function | Item | SA code |
|---|---|---|---|
| Stationary heater radio remote control receiver (A6/1) | Stationary heater | Instrument panel center | B24 (Remote control for stationary heater) |
| Telephone antenna splitter (A2/109) | Telephone, stationary heater | Instrument panel center | B24 (Remote control for stationary heater)/899 (Multifunction telephony) |
| Cellular telephone system antenna amplifier/compensator (A28/15) | Telephone | Instrument panel center | 899 (Multifunction telephony) |
| TV1 antenna amplifier (A94/5) | TV mode | Left A-pillar | 498 (Japan version) + 865 (TV tuner) |
| TV3 antenna amplifier (A94/7) | TV mode | Right A-pillar | 498 (Japan version) + 865 (TV tuner) |
| FM, AM, ZV, DAB and KEYLESS-GO antenna amplifier (A2/18) | Radio mode, KEYLESS-GO, central locking system | Rear-end door, at top right | - |
| FM2, DAB and TV2 antenna amplifier (A2/19) | Radio mode, TV mode | Rear-end door, at top left | - |
Telephone antennas connection
The driver's side telephone antenna (A2/102) and front passenger side telephone antenna (A2/103) are connected to the telephone antenna splitter (A2/109). Depending on the vehicle equipment, the antenna connection may differ:
- Vehicles with code 899 (Multifunction telephony) or
with code B24 (Remote control for stationary heater):
Directly to the mobile phone cradle control unit or to the stationary heater radio remote control receiver (A6/1) via a simple telephone antenna splitter (A2/109)
- Vehicles with code 899 (Multifunction telephony) and
with code B24 (Remote control for stationary heater):
To the mobile phone cradle control unit and to the stationary heater radio remote control receiver (A6/1) via a 2-way telephone antenna splitter (A2/109)
On vehicles with code 899 (Multifunction telephony), the antenna signal is amplified to the mobile phone cradle control unit by the cellular telephone system antenna amplifier/compensator (A28/15).
Emergency call system antennas connection
Emergency call system antenna 1 (A2/140) and emergency call system antenna 2 (A2/141) are directly connected to the telematics services control unit.
GPS antenna connection
Depending on the vehicle equipment, the following GPS antenna (A2/23) connections are possible:
- Vehicles with code 362 (HERMES LTE):
Directly to the telematics services control unit
If the vehicle is also equipped with code 355 (MBUX extended functions): The antenna signal is forwarded to the multimedia system control by a GPS splitter integrated into the telematics services control unit.
- Vehicles without code 362 (HERMES LTE) but with code 355 (Extended functions MBUX):
Directly to multimedia system control
Rear window antennas connection
The antennas in the rear window are connected via 2 antenna amplifiers:
- FM, AM, ZV, DAB and KEYLESS-GO antenna amplifier (A2/18)
- FM2, DAB and TV2 antenna amplifier (A2/19)
Windshield antennas connection
The antennas in the windshield are connected via 2 antenna amplifiers:
- TV1 antenna amplifier (A94/5)
- TV3 antenna amplifier (A94/7)
Rear spoiler antenna connection
The antennas in the rear spoiler are connected via FM, AM, CL, DAB and KEYLESS-GO antenna amplifier (A2/18).
| Additional base function | |||
| KEYLESS-GO antenna, basic function | GF80.61-P-2001A |
