Side Wall Reinforcement Partial Installation - Ar63.20-P-0861-04MFA
Model 177.0
Model 247.0/6/7
The following operation steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.
The superordinate service document as well as the safety information in the service document must be observed.

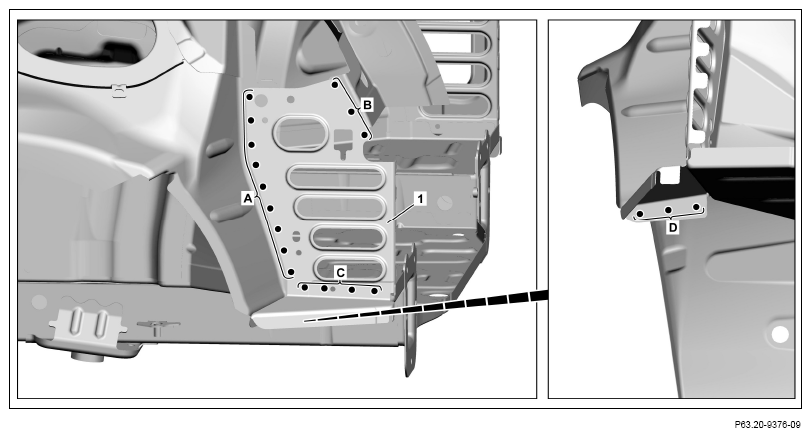

Shown on model 177.0
- Install side wall reinforcement (1) and fix in place.
- Side wall reinforcement (1)
(areas A, B, C and D).
