Rear Longitudinal Member For Installation Preparation - Ar64.20-P-1200-23MFF

Model 177.0, 247.0/6/7

with code U54 (Compound-link axle)

except code U55 (Multi-link axle)

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Mark separating point on rear seat reinforcement (3) and separate (area A).

   Transfer separating point from vehicle.

2. Grind mating surface on rear seat reinforcement (3) down to bare metal in cross-hatched area.
3. Remove grinding dust.
4. Apply zinc dust paint in cross-hatched area.

   Courtesy of MERCEDES-BENZ USA

5. Grind mating surfaces on the cover (4) down to bare metal in the cross-hatched areas.
6. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

7. Install, fit and fix in place covers (5.1, 5.2) at rear longitudinal member (1).
8. Mark position of cover (5.1) relative to cover (5.2).
9. Remove covers (5.1, 5.2).
10. Grind covers (5.1, 5.2) on both sides down to bare metal and coat on insides with zinc dust paint (area D).
11. Align cover (5.1) to cover (5.2) at the marked position and fix in place.
12. Covers (5.1, 5.2) (area D).

    Courtesy of MERCEDES-BENZ USA

13. Grind mating surfaces on covers (5.1, 5.2) down to bare metal in cross-hatched areas.
14. Remove grinding dust.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

15. Grind mating surfaces on rear longitudinal member (1) down to bare metal in cross-hatched areas.
16. Apply 2-component adhesive in cross-hatched areas to rear longitudinal member (1) (areas B₁ and B₂ ).
17. Remove grinding dust.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

18. Assemble, fit and fix in place rear longitudinal member (1) and covers (5.1, 5.2).
19. Rear longitudinal member (1) and covers (5.1, 5.2) (areas C₁ , C₂ , C₃ , C₄ , C₅ and C₆ ).

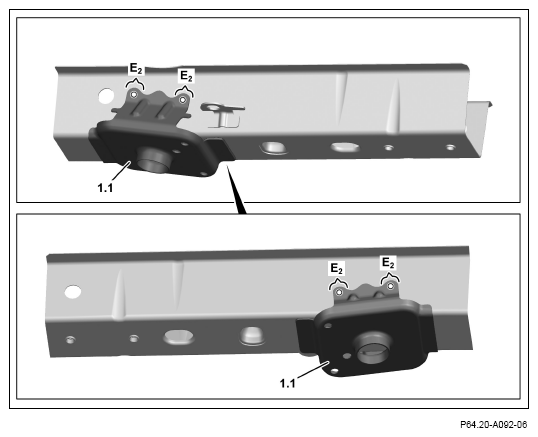

20. Drill off rivets on suspension strut support (1.1) with Ø 6.5 mm (areas E₂ ).
21. Remove suspension strut support (1.1).

    Courtesy of MERCEDES-BENZ USA

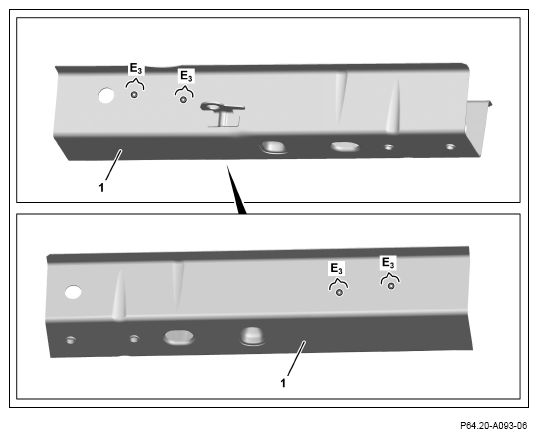

22. Longitudinal member (1) (areas E₃ ).
23. Surface-grind plug welds on longitudinal member (1) (areas E₃ ).

    Courtesy of MERCEDES-BENZ USA

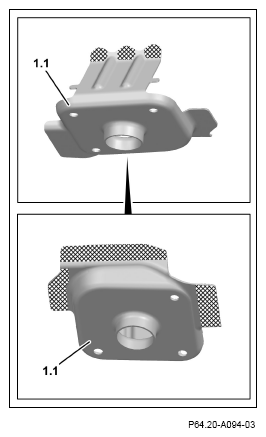

24. Grind mating surfaces on suspension strut support (1.1) down to bare metal on inside in cross-hatched areas.
25. Remove grinding dust.

Observe preliminary treatment of bonding surface.
