Determine Remaining Distance Of Brake Pads - AP42.10-P-4253-03EW
Model all (CAR)
Model 453
Model 461, 463
In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is less than the next service interval, premature brake show or brake pad replacement should be recommended to the customer. The remaining distance determined is to be understood as being a reference value as the future driving style and operating conditions of the vehicle are not taken into consideration when calculating the remaining distance. The actual remaining distance can therefore be shorter or longer. Per axle, the brake pad with the least lining thickness is to be used for determining likely remaining distance.
If the wear limit of the brakepads has been reached, the brakepads must be replaced.
There are 2 different methods available to calculate the remaining distance:
- Method 1: Calculation without consideration of last brake pad replacement.
- Method 2: Calculation with consideration of last brake pad or brake show replacement. When calculating in accordance with method 2 the vehicle-specific service conditions, starting from the last brake shoe or brake pad replacement, are taken into consideration.
Shown on model 223.063

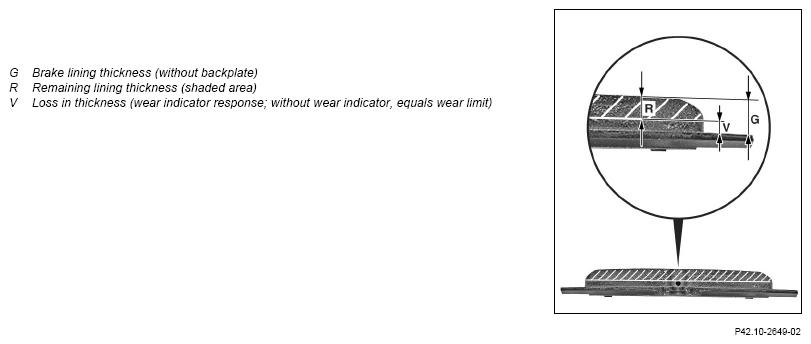

Shown on brake pad
Calculation as per Method 1 (for disk brakes only)
Comment: The values given in parenthesis are for an example calculation only, the actual values have to be determined on the vehicle or taken from the vehicle-specific test value tables!
Given:
- G = Brake lining thickness determined at the vehicle (8 mm)
- V = Value to be taken from vehicle-specific test value tables, row "Wear indicator response", or from row "Wear limit" if no wear indicator is present (3 mm).
- VF = deterioration factor:
- Front axle 4.000 km/1_mm brake lining
- Rear axle 6.000 km/1_mm brake lining
Wanted: RS = remaining distance
Formula: RS = (G - V) * VF
Example, front axle: RS = (8_mm - 3_mm) * 4, 000 km = 20, 000 km
Example, rear axle: RS = (8_mm - 3_mm) * 6, 000 km = 30, 000 km
Calculation according to method 2
Comment: The values given in parenthesis are for an example calculation only, the actual values have to be determined on the vehicle or taken from the vehicle-specific test value tables!
Previous work: Determine kilometer reading at the last brake shoe or brake pad replacement (Digital Service Booklet (DSB) - if available for vehicle and in market, vehicle history, etc.).
Given:
- BN = New dimension for brake lining thickness (value to be taken from vehicle-specific test value tables, row "Brake lining, new") (12.5 mm)
- G = Brake lining thickness determined at the vehicle (8 mm)
- KA = Current kilometer reading (95, 000 km)
- KB = Kilometer reading at last brake pad or brake shoe replacement (70, 000 km)
- V = Value to be taken from vehicle-specific test value tables, row "Wear indicator response", or from row "Wear limit" if no wear indicator is present (3 mm).
Wanted: RS = remaining distance
Formula: RS = ((KA - KB)/(BN - G)) * (G - V)
Example: RS = ((95, 000 km - 70, 000 km)/(12.5 mm - 8 mm)) * (8 mm - 3 mm) = 27, 777 km
