Notes On Installing Brake Wear Indicator Contact Sensors - AH42.10-P-0003-01CW

Model 117, 118, 156, 166, 167, 172, 176, 177, 204, 205, 207, 212, 217, 218, 222, 231, 242, 243, 246, 247, 292, 463

The following variants are available on the front axle:

• One brake lining wear sensor on right side of vehicle.
• Two brake lining wear sensors on right side of vehicle.

The following variants are available on the rear axle:

• No brake lining wear sensor on right side of vehicle.
• One brake lining wear sensor on right side of vehicle.

When replacing the brake lining of the brake lining wear sensor, install it at the same position again.

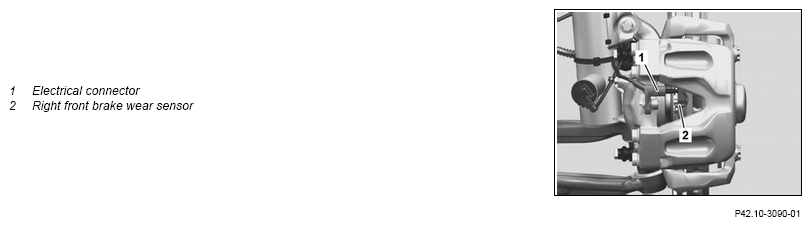

Route or install the front right brake lining wear sensor line (2) or the electrical connector (1), as shown.

Shown on front axle on model 204.041

Courtesy of MERCEDES-BENZ USA

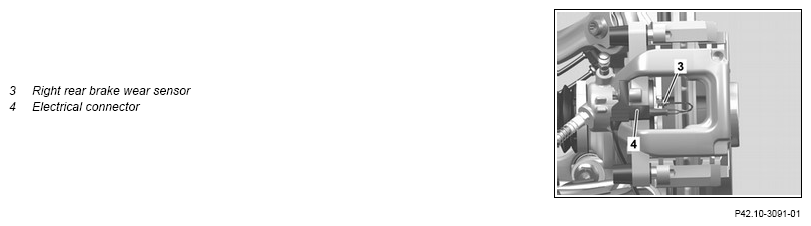

Route or install the rear right brake lining wear sensor line (3) or the electrical connector (4), as shown.

Shown on rear axle on model 204.041

Courtesy of MERCEDES-BENZ USA

For reasons of replacement part simplification, install the brake linings so that the brake lining wear sensors can be reinstalled at the corresponding assembly positions.

The corresponding assembly position of the brake lining wear sensors is specified in the list below.

Courtesy of MERCEDES-BENZ USA

Front axle version 5

• Model 117 with engine 270, 651
• Model 156 with engine 270, 651
• Model 166 with engine 276, 278, 642, 651
• Model 172 with engine 152, 271, 276, 651
• Model 176 with engine 270, 651
• Model 177 with engine 260, 608, 282
• Model 204 with engine 156, 271, 272, 642, 646, 651
• Model 205 with engine 177, 264, 274, 276, 626, 651, 654
• Model 207 with engine 271, 272, 642
• MODEL 212 with ENGINE 156, 271, 272, 642, 651
• Model 218 with engine 157, 276, 642, 651
• Model 242 with engine 270, 651
• MODEL 246 with ENGINE 270, 651
• Model 463 with engine 176, 656

Front axle, version 6

• Model 117 with engine 133
• Model 156 with engine 133
• Model 166 with engine 157
• Model 176 with engine 133
• Model 205 with engine 177
• Model 207 with engine 273
• Model 212 with engine 273
• Model 217 with engine 156, 278, 279
• MODEL 218 with ENGINE 278
• Model 222 with engine 276, 278, 651
• MODEL 231 with ENGINE 157, 276, 278, 279
• Model 242 with engine 133
• Model 292 with engine 157
• Model 463 with engine 177

Rear-axle version 9

• Model 166 with engine 157, 276, 278, 642, 651
• Model 172 with engine 152, 271, 276, 651
• Model 204 with engine 156, 272, 642, 651
• Model 205 with engine 177, 264, 274, 276, 626, 651, 654
• Model 207 with engine 271, 272, 273, 642
• Model 212 with engine 156, 271, 272, 273, 642, 651
• MODEL 217 with ENGINE 157, 278, 279
• Model 218 with engine 157, 276, 278, 642, 651
• Model 222 with engine 276, 278, 651
• MODEL 231 with ENGINE 157, 276, 278, 279
• Model 292 with engine 157, 276, 278, 642
• Model 463 with engine 176, 177, 656
