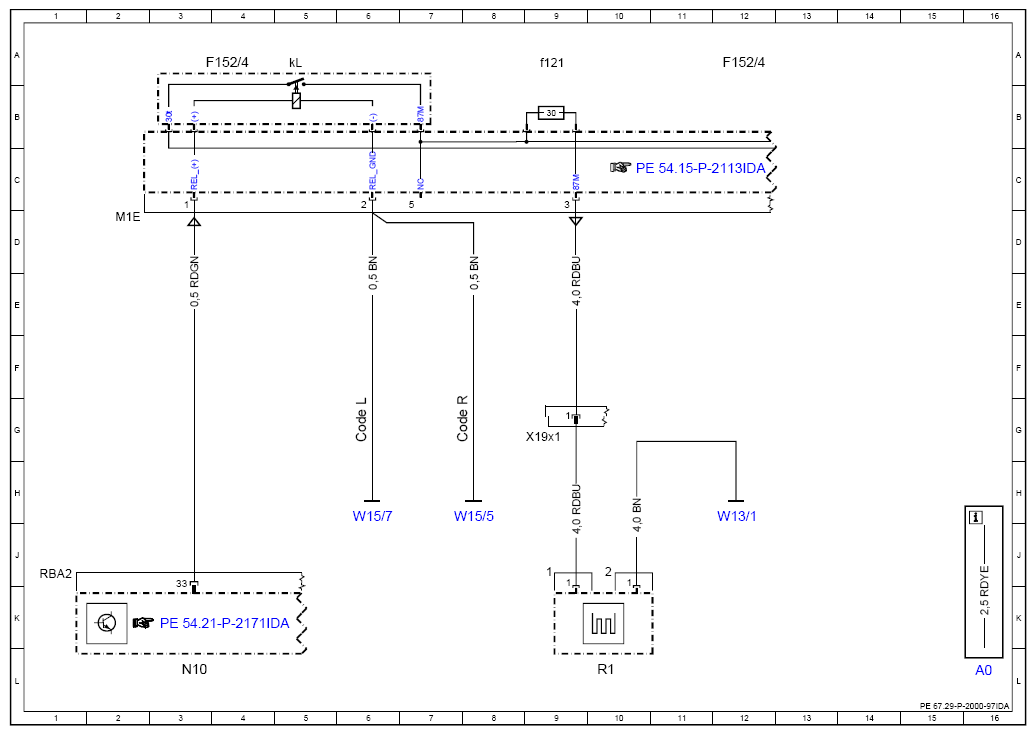

Electric Wiring Diagram For Heated Rear Window - PE67.29-P-2000-97IDA
Model 247 HeaterR1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 16L |
| Code L | LEFT-HAND DRIVE | 6G |
| Code R | RIGHT-HAND DRIVE | 8G |
| F152/4 | Vehicle interior fuse and relay module | 4A |
| F152/4 | Vehicle interior fuse and relay module | 12A |
| F152/4f121 | Fuse 121 | 9A |
| F152/4kL | Heated rear window relay | 5A |
| N10 | Central control module | 3L |
| R1 | Rear window heater | 10L |
| W13/1 | Ground point (left rear window heater) | 12H |
| W15/5 | Left front footwell ground point | 8H |
| W15/7 | Right front footwell ground point | 6H |
| X19x1 | Rear window heater electrical connector | 9G |
