Remove/Install Front Door Panel - AR72.10-P-6575MFA
Model 118, 177, 247
Shown on left Front door
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Open side window of Front door. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove screw/bolts (2). | ||
| 4 | Unclip door trim (1) for Front door all around and remove until the electrical connectors are accessible. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|

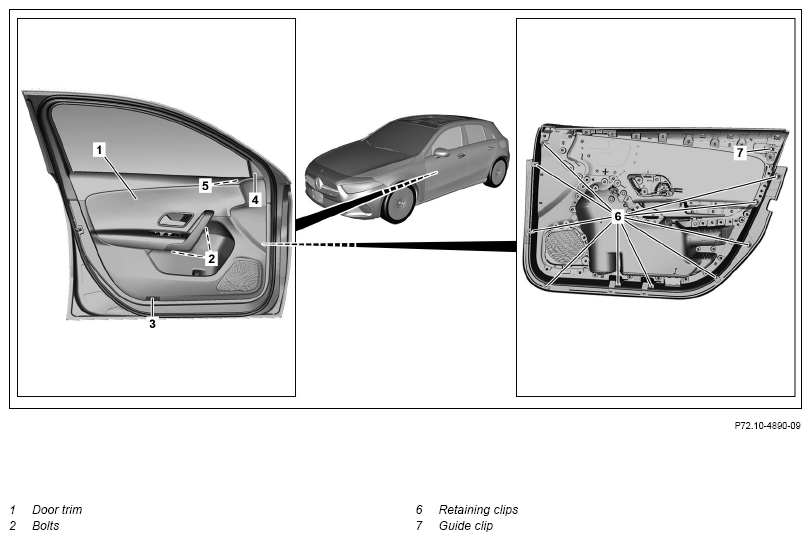

| Fig 1 | |||
| 5 | Release and disconnect electrical connect of door trim (1). | ||
| 6 | Unhook wire from inside door opener. | ||
| 7 | Remove door trim (1) at Front door. | Pay attention to audible engagement of guide clip (7). |
|
| 8 | Install in the reverse order. |
