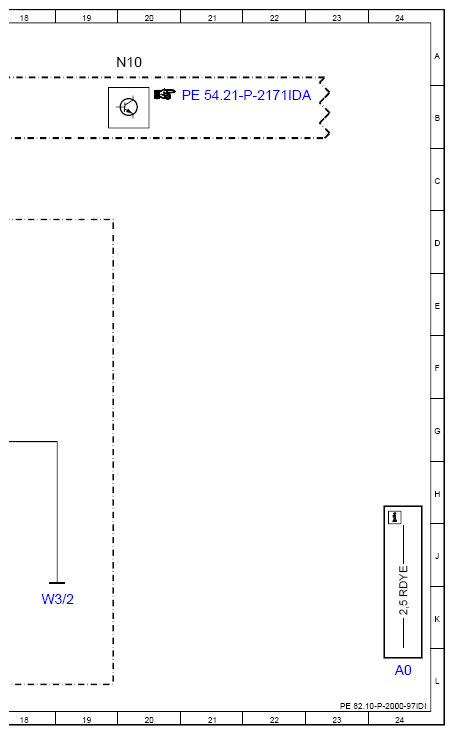

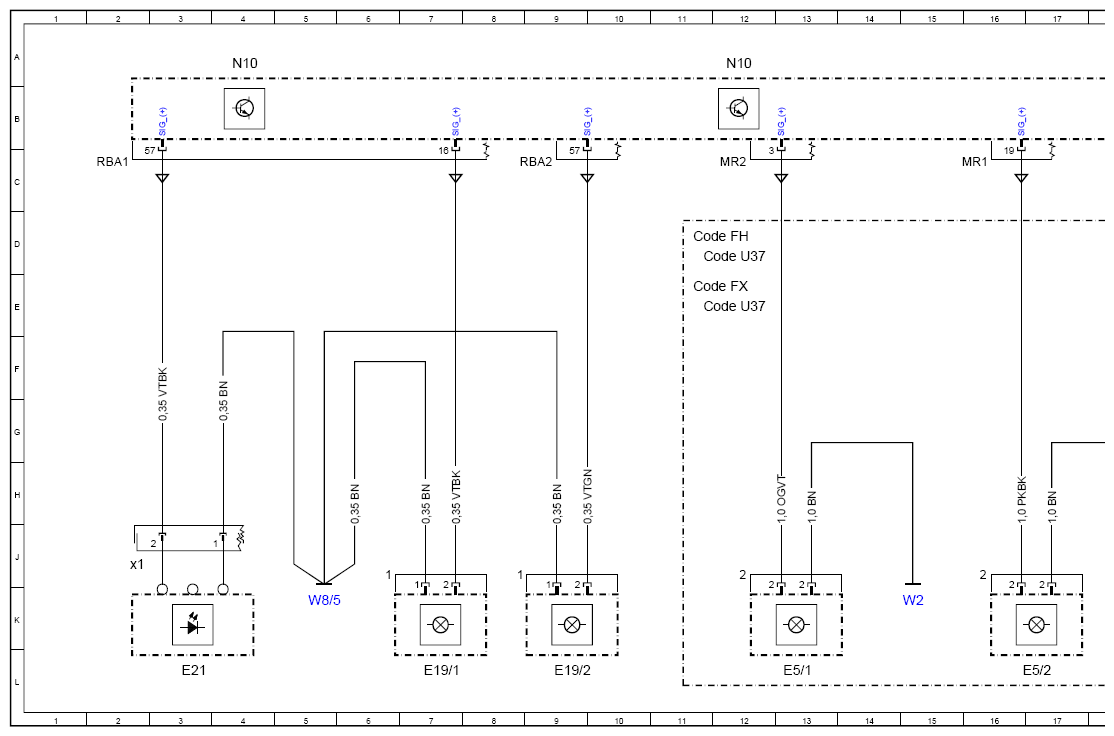

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97IDI
Model 247 License plate lamp, brake lamp center, liftgate warning/ambient lamp
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 24L |
| Code FH | HATCHBACK | 11D |
| Code FX | Special version | 11E |
| Code U37 | Front fog lamp | 11D |
| Code U37 | Front fog lamp | 11E |
| E19/1 | Left license plate lamp | 7L |
| E19/2 | Right license plate lamp | 9L |
| E21 | Center stop lamp | 3L |
| E21x1 | Center brake lamp electrical connector | 2J |
| E5/1 | Left fog lamp | 13L |
| E5/2 | Right fog lamp | 17L |
| N10 | Central control module | 4A |
| N10 | Central control module | 12A |
| N10 | Central control module | 20A |
| W2 | Right front engine compartment ground point | 15K |
| W3/2 | Left front wheel arch ground point | 18K |
| W8/5 | Right tailgate ground point | 5K |
