Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97IDB
Model 247
with code 613 (headlights left-hand-traffic) Headlamp E2, part LED
Model 247
with code 620 (Right-hand traffic headlamps) Headlamp E2, part LED
| Code: | Designation: | Position: |
|---|---|---|

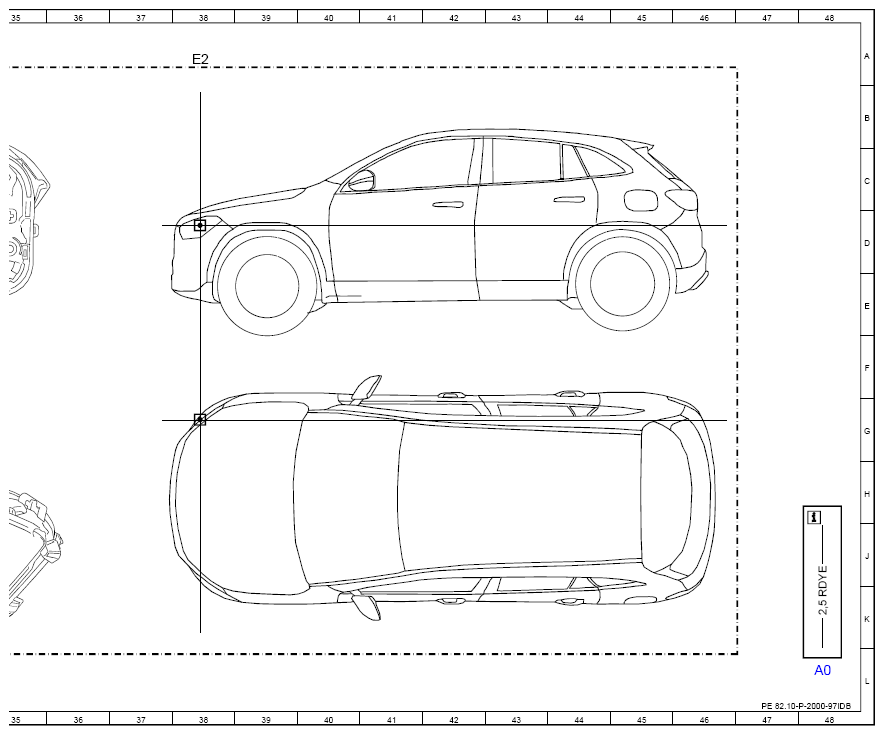

| A0 | Use of wiring diagrams | 48L |
| Code 460 | Canada version | 12D |
| Code 460 | Canada version | 20D |
| Code 494 | USA version | 12D |
| Code 494 | USA version | 20D |
| Code L | LEFT-HAND DRIVE | 16F |
| Code R | RIGHT-HAND DRIVE | 13F |
| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 33A |
| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 38A |

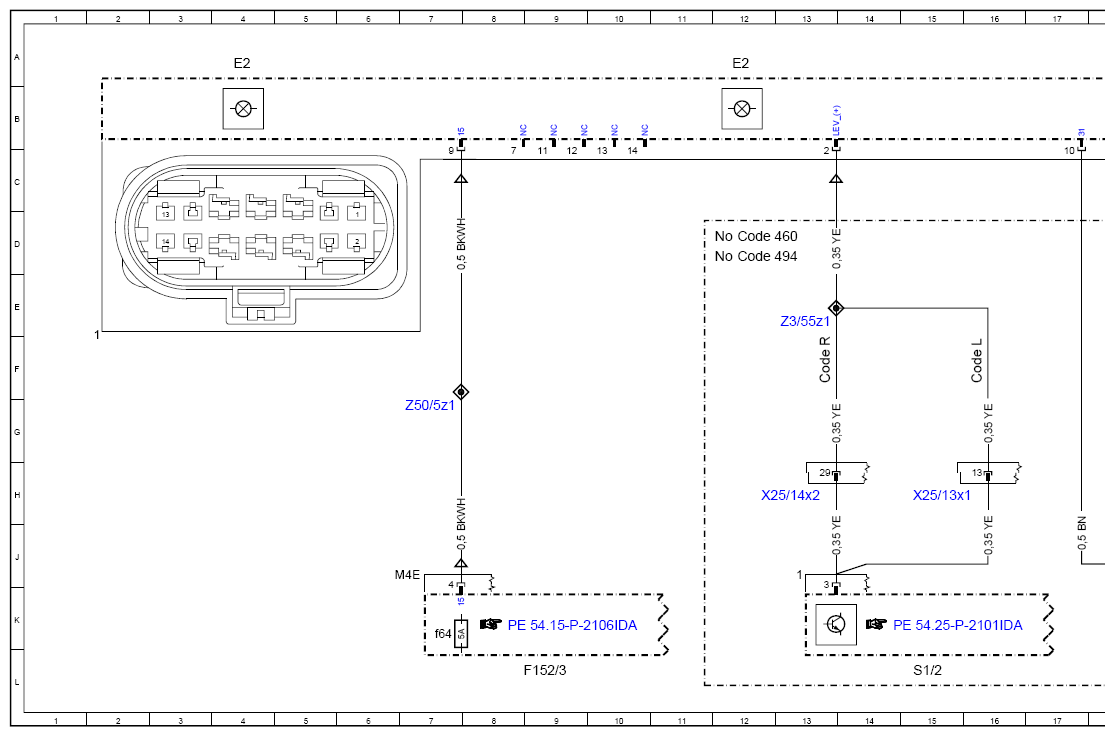

| F152/3 | Engine compartment fuse and relay module | 9L |
| F152/3f64 | Fuse 64 | 7K |

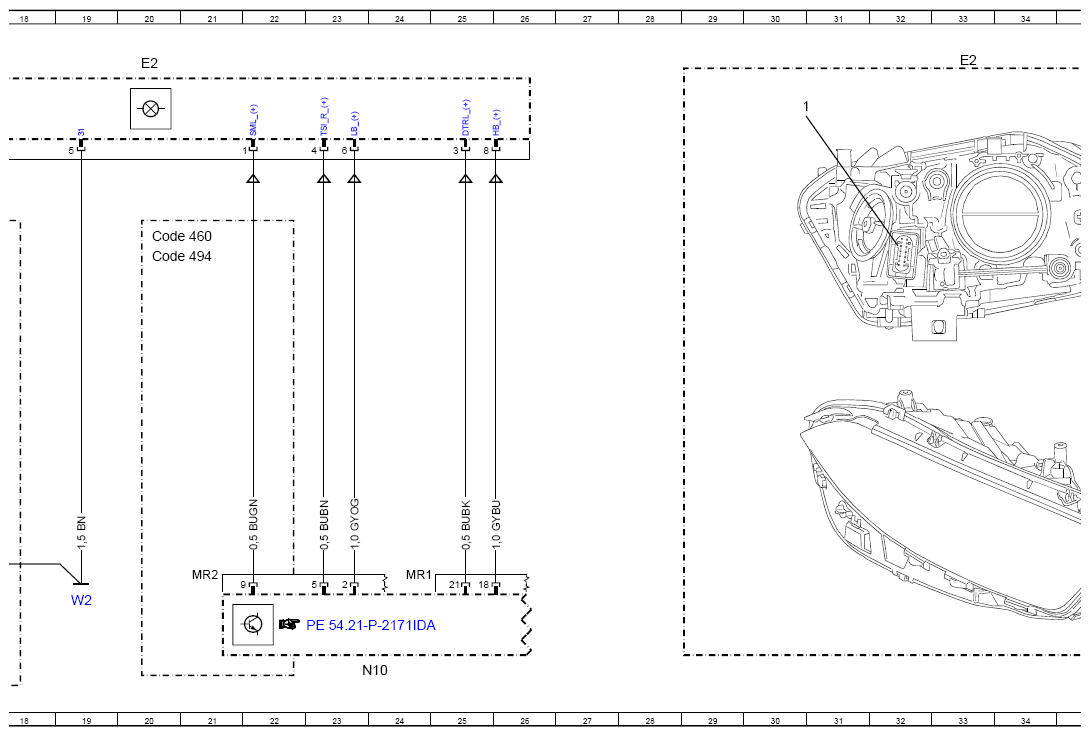

| N10 | Central control module | 24L |
| S1/2 | Exterior lights and electric parking brake switch group | 15L |
| W2 | Right front engine compartment ground point | 19K |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 15H |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 12H |
| Z3/55z1 | Voltage supply connector sleeve | 13E |
| Z50/5z1 | Tml. 15 connector sleeve | 7G |
