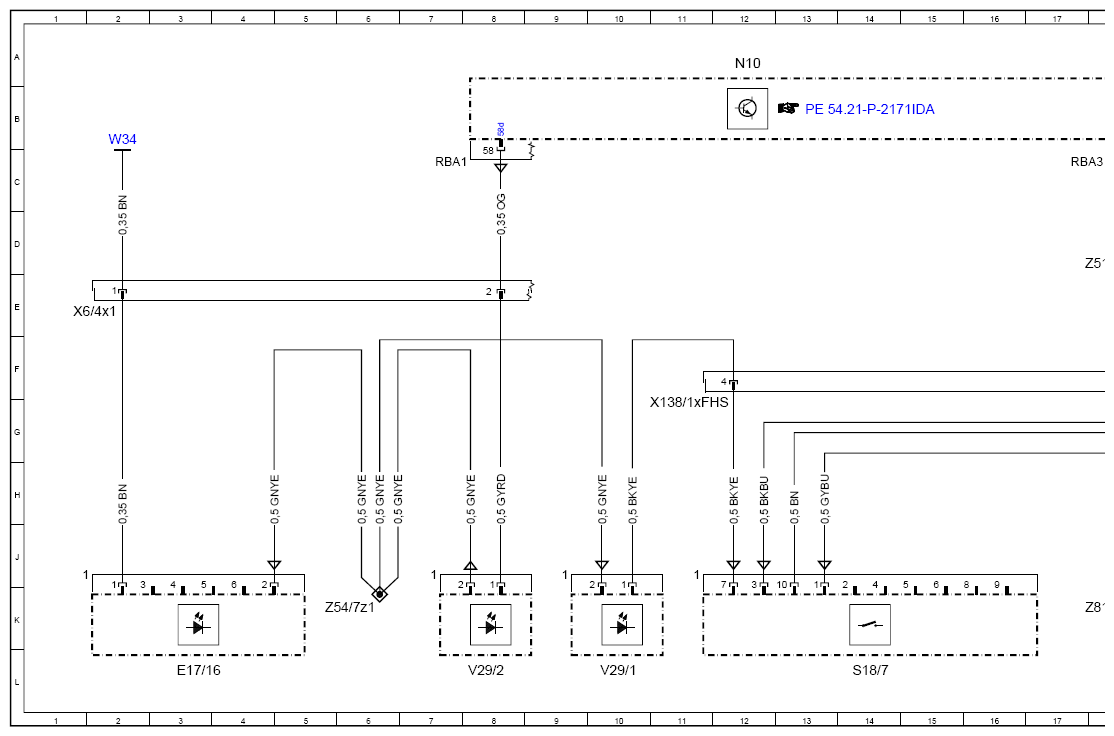

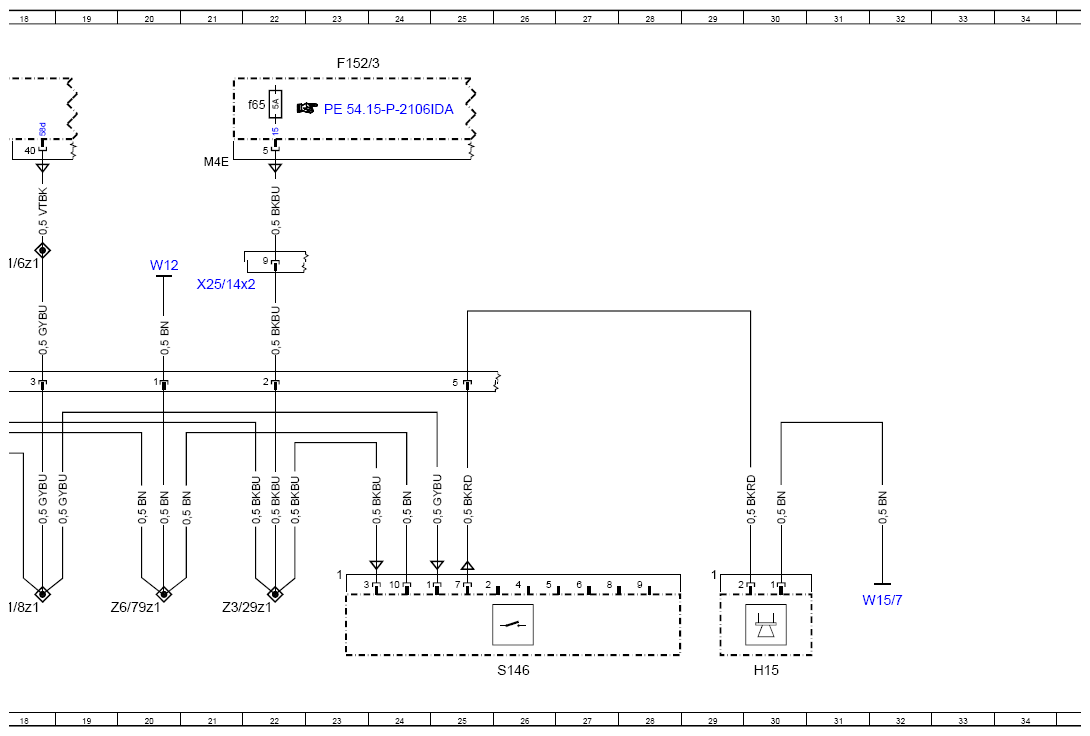

Wiring Diagram For Driving School Vehicle - PE82.25-P-2004-97IDA
Model 247 with code U63 (Driving school package)
| Code: | Designation: | Position |
|---|---|---|

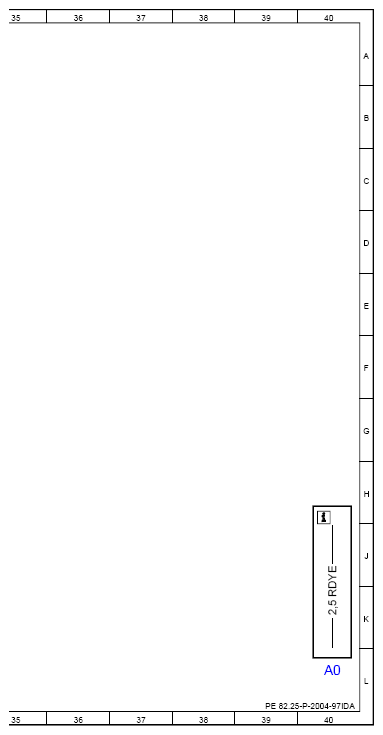

| A0 | Use of wiring diagrams | 40L |
| E17/16 | Left front footwell lamp | 3L |
| F152/3 | Engine compartment fuse and relay module | 23A |
| F152/3f65 | Fuse 65 | 22B |
| H15 | Pedal operation monitor buzzer | 30L |
| N10 | Central control module | 12A |
| S146 | Pedal operation monitor switch | 26L |
| S18/7 | Footwell illumination switch | 14L |
| V29/1 | Footwell illumination diode 1 | 10L |
| V29/2 | Footwell illumination diode 2 | 8L |
| W12 | Left center console ground point | 20D |
| W15/7 | Right front footwell ground point | 32K |
| W34 | Left footwell ground point | 2B |
| X138/1xFHS | Front center console electrical connector | 11G |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 21E |
| X6/4x1 | Driving school package electrical connector | 1E |
| Z3/29z1 | Voltage supply connector sleeve | 22K |
| Z51/6z1 | Circuit 58d connector sleeve | 18D |
| Z54/7z1 | Voltage supply connector sleeve | 6K |
| Z6/79z1 | Ground connection connector sleeve | 20K |
| Z81/8z1 | Circuit 58d connector sleeve | 18K |
