Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97IDA
Model 247 with code 897 (Front wireless telephone charging)
Control unit N123/8
Model 247 with code 899 (Multifunction telephony)
Control unit N123/8
| Code: | Designation: | Position |
|---|---|---|

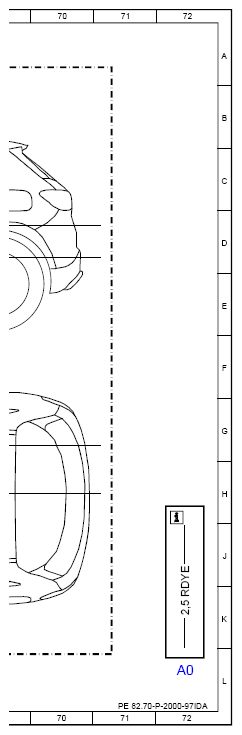

| A0 | Use of wiring diagrams | 72L |
| A2/109 | Telephone antenna splitter | 16L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 4A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 12A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 64A |
| CAN A | Telematics CAN | 40K |

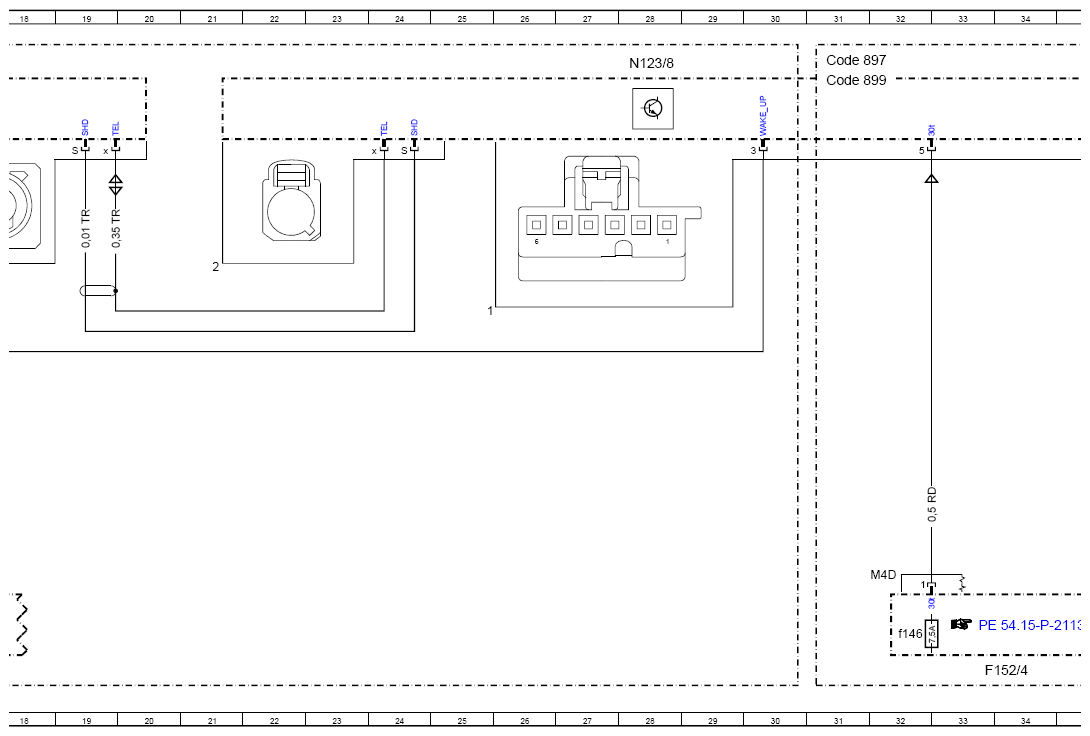

| Code 897 | Wireless mobile phone charging | 31A |

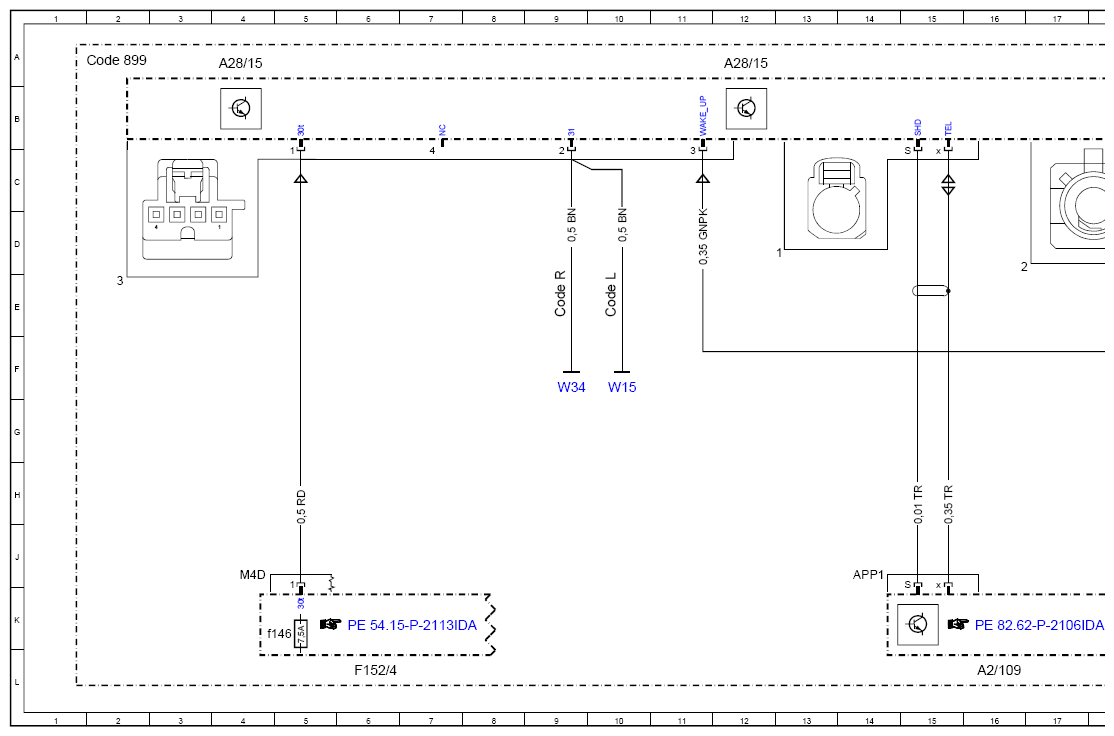

| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 31A |
| Code L | LEFT-HAND DRIVE | 10E |
| Code L | LEFT-HAND DRIVE | 37E |
| Code R | RIGHT-HAND DRIVE | 9E |
| Code R | RIGHT-HAND DRIVE | 37E |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4 | Vehicle interior fuse and relay module | 34L |
| F152/4f146 | Fuse 146 | 5K |

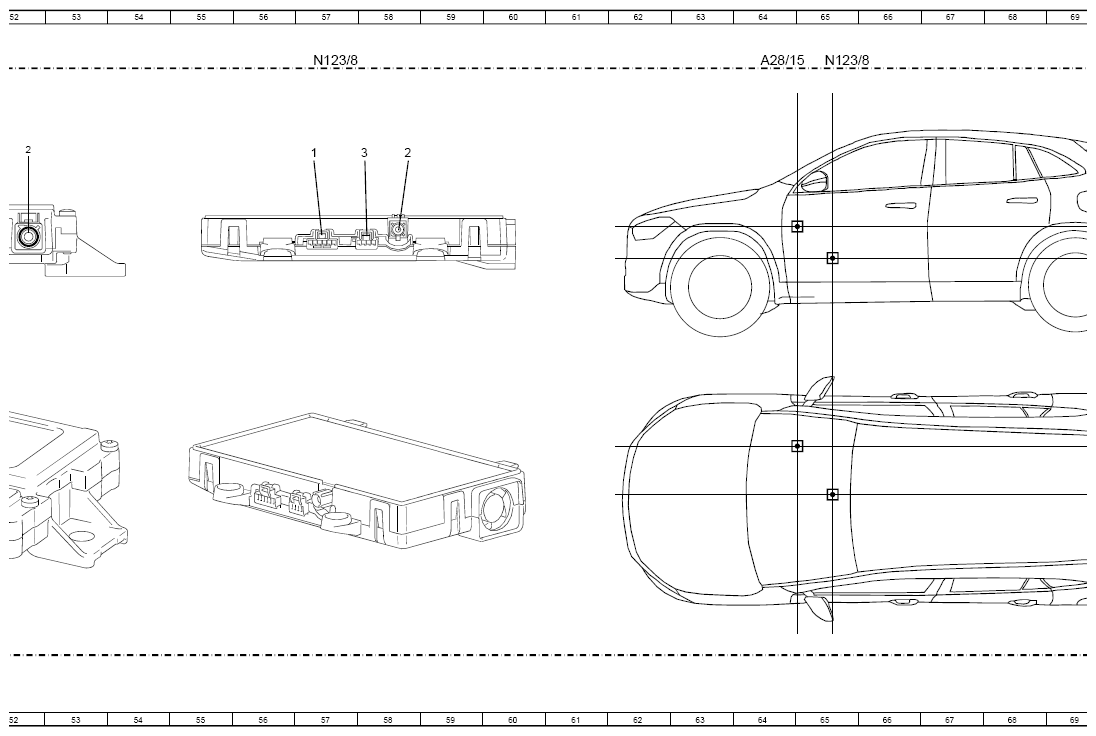

| N123/8 | Mobile phone cradle control unit | 28A |
| N123/8 | Mobile phone cradle control unit | 36A |
| N123/8 | Mobile phone cradle control unit | 57A |
| N123/8 | Mobile phone cradle control unit | 51A |
| N123/8 | Mobile phone cradle control unit | 65A |
| W12 | Left center console ground point | 37F |
| W12/1 | Right center console ground point | 37F |
| W15 | Right front footwell ground point | 10F |
| W34 | Left footwell ground point | 9F |

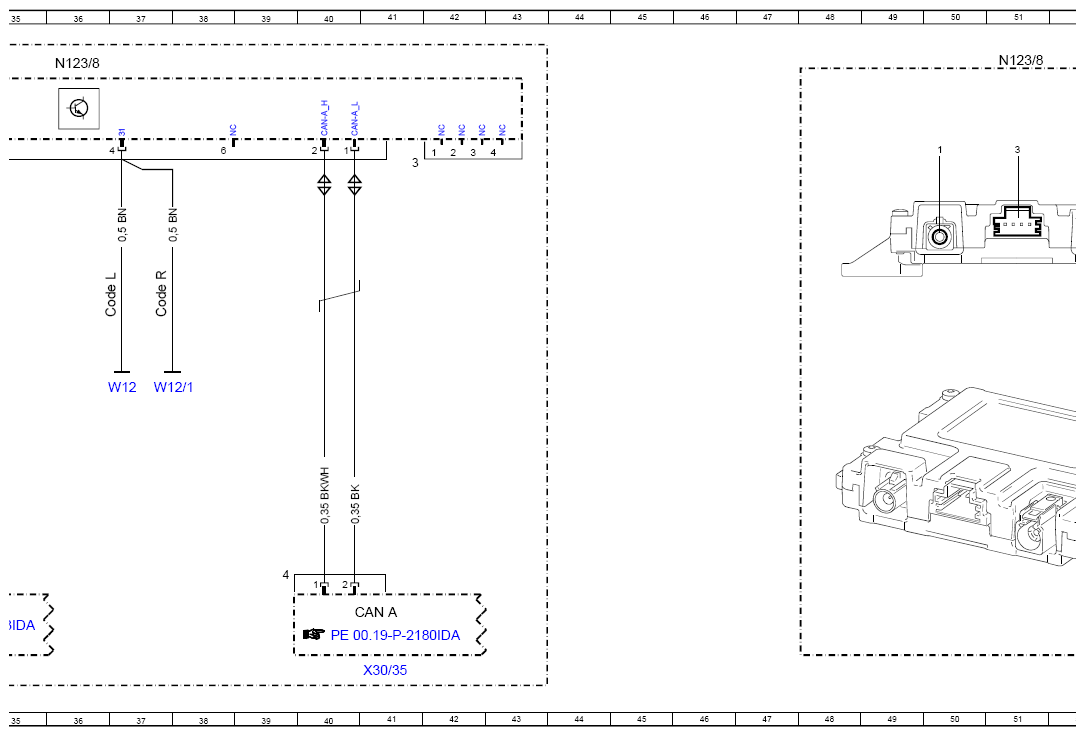

| X30/35 | Telematics CAN potential distributor (CAN A) | 41L |
