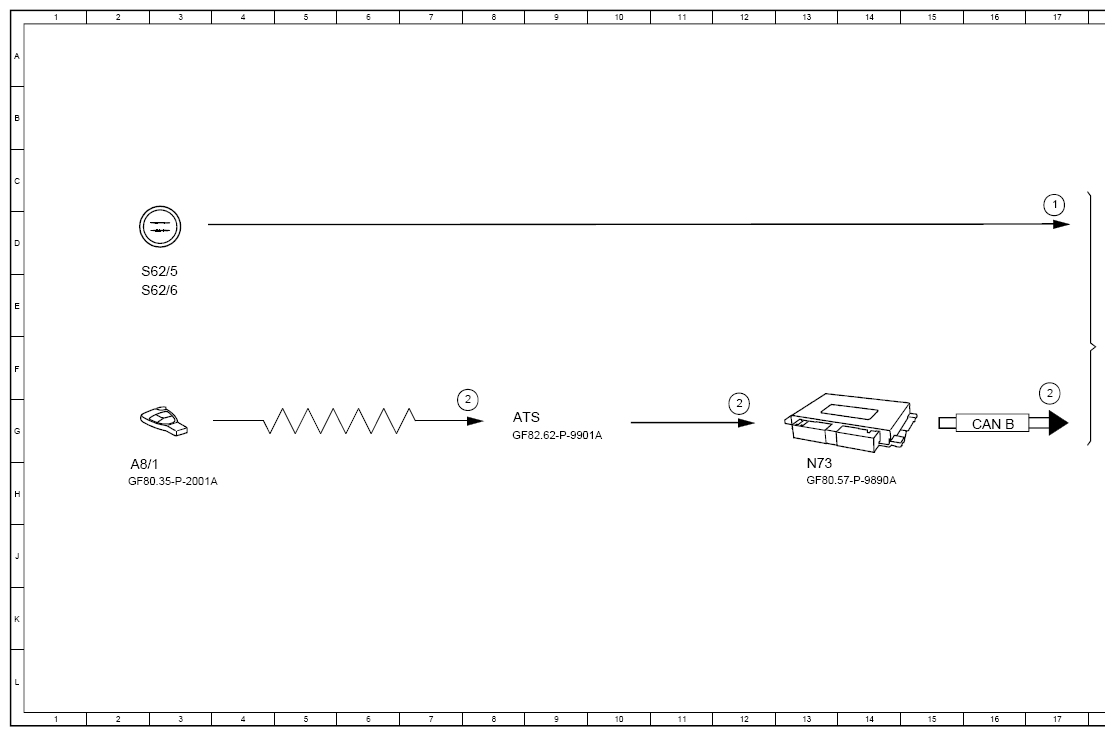

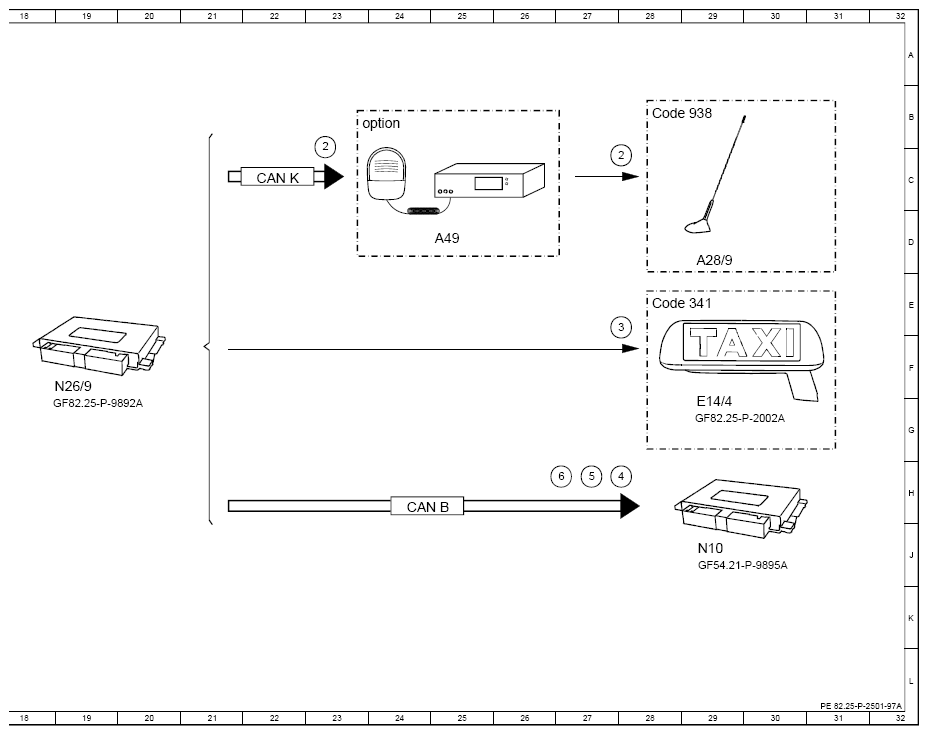

Trigger Taxi Emergency Alarm, Function Schematic - PE82.25-P-2501-97A
Model 247 up to model year 2023
with code 934 (Taxi emergency alarm unit)
with code 965 (Taxi/rental car - electrical pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 17D |
| 2 | Emergency alarm, signal | 17G |
| 2 | Emergency alarm, signal | 23B |
| 2 | Emergency alarm, signal | 12G |
| 2 | Emergency alarm, signal | 8G |
| 2 | Emergency alarm, signal | 27C |
| 3 | Roof sign lamp, actuation | 27E |
| 4 | Switch on exterior lights, request | 27H |
| 5 | Interior lamp, request | 26H |
| 6 | Fanfare horns, request | 26H |
| A28/9 | Two-way radio roof antenna | 29D |
| A49 | Two-way radio | 25D |
| A8/1 | Transmitter key | 2H |
| ATS | Antenna system | 8G |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 24H |
| CAN K | Multifunction CAN | 22C |
| Code 341 | Taxi roof sign | 28E |
| Code 938 | Hands-free two-way radio | 28B |
| E14/4 | Roof sign I amp | 29G |
| N10 | Central control module | 29J |
| N26/9 | Special-purpose vehicle multifunction control unit | 19F |
| N73 | Electronic ignition switch control unit | 13H |
| S62/5 | Emergency alarm system 'Cancel' button | 3E |
| S62/6 | Emergency alarm system 'Trigger' button | 3E |
