Function Schematic For Tire Pressure Loss Warning (RDW) - PE40.15-P-2501-97A
Model 118, 177, 247 with code 477 (Tire pressure loss warner)
Model 167 with code 477 (Tire pressure loss warner)
| Code: | Designation: | Position: |
|---|---|---|

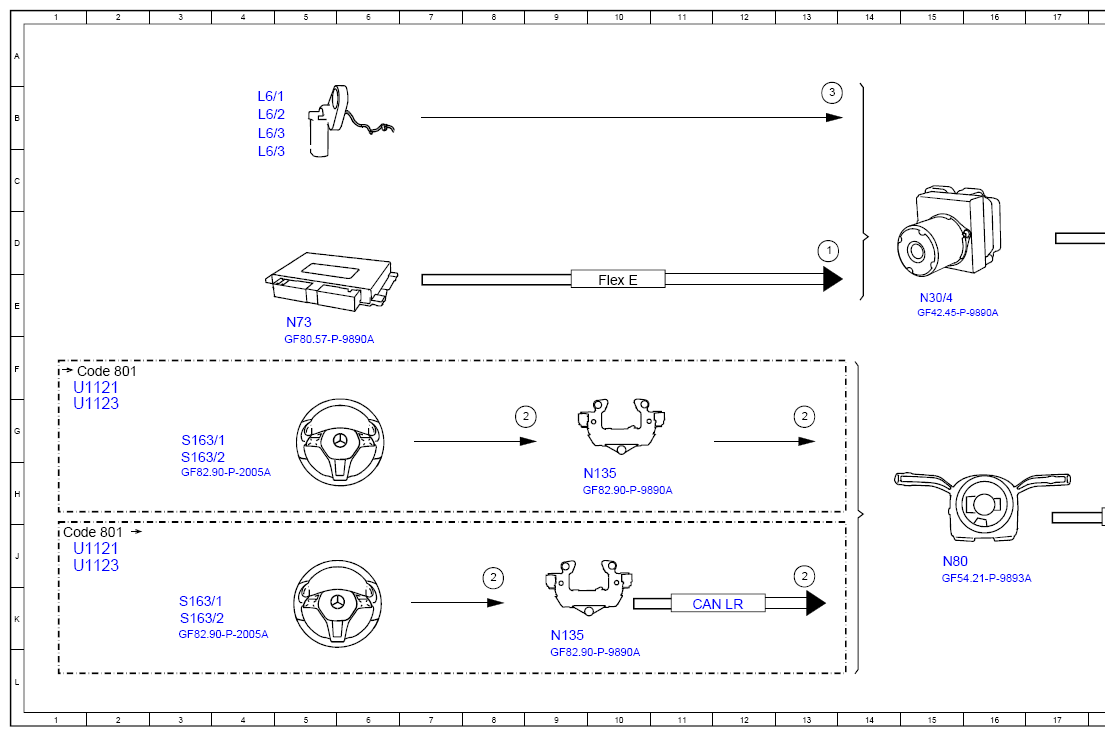

| 1 | Circuit 15, status | 13D |
| 2 | Multifunction steering wheel button group, signal | 13J |
| 2 | Multifunction steering wheel button group, signal | 9J |
| 2 | Multifunction steering wheel button group, signal | 20H |
| 2 | Multifunction steering wheel button group, signal | 9G |
| 2 | Multifunction steering wheel button group, signal | 13G |
| 3 | Wheel speed, signal | 13B |
| 4 | Tire pressure loss warning message, request | 20C |
| 4 | Tire pressure loss warning message, request | 30E |
| 4 | Tire pressure loss warning message, request | 30G |

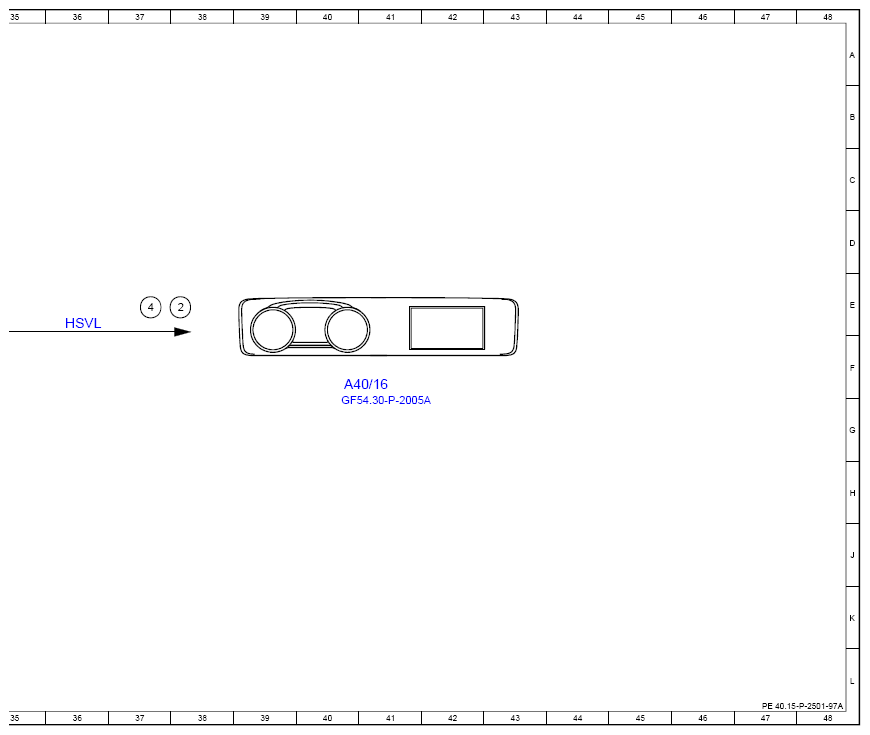

| A4/16 | Head unit/instrument cluster display cluster | 40F |

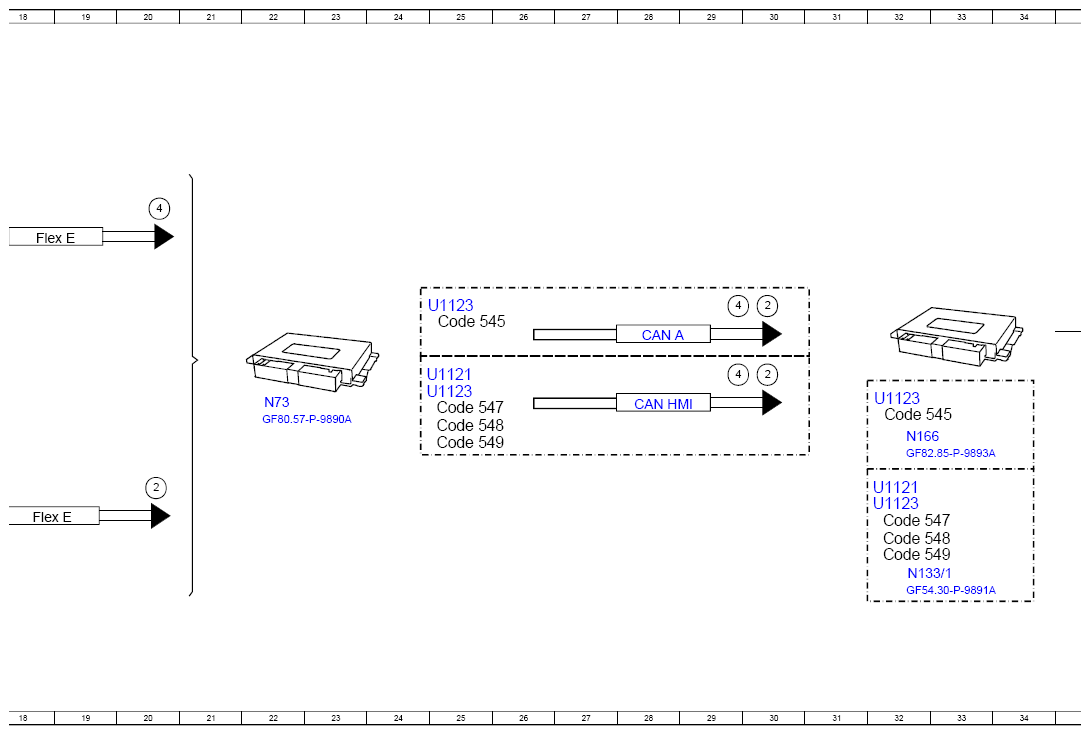

| CAN HMI | User interface CAN | 28G |
| Code 426 | 8G-DCT | - |
| Code 429 | 7G-DCT | - |
| Code 545 | Connect 5 (NTG6) | 25E |
| Code 547 | Connect 20 Entry (NTG6) | 25G |
| Code 548 | Connect 20 MID (NTG6) | 25G |
| Code 549 | Connect 20 HIGH (NTG6) | 32J |
| Flex E | Chassis FlexRay | 10E |
| Flex E | Chassis FlexRay | 18D |
| Flex E | Chassis FlexRay | 18H |
| HSVL | High-speed video link | 36E |
| L/1 | Left front axle rpm sensor | 4B |
| L/2 | Right front axle rpm sensor | 4B |
| L/3 | Left rear axle rpm sensor | 4B |
| L/3 | Left rear axle rpm sensor | 4C |
| N13/1 | Instrument cluster control unit | 32J |
| N135 | Steering wheel electronics | 9K |
| N166 | Head unit/instrument cluster control unit | 32G |
| N3/4 | Electronic Stability Program control unit | 15E |
| N73 | Electronic ignition switch control unit | 5E |
| N73 | Electronic ignition switch control unit | 22G |
| N80 | Steering column module control unit | 15J |
| S11/1 | Steering wheel downshift button | - |
| S11/1 | Steering wheel upshift button | - |
