Attaching Mercedes-Benz Quick-Clamping Devices - AR40.20-P-0230SX

Model 117, 118, 156, 166, 167, 172, 176, 177, 190, 197, 204, 205, 206, 207, 212, 213, 216, 217, 218, 221.0/1, 222, 223, 232, 242, 243, 246, 247, 253, 292, 293, 295, 297

Model 463 as of model year 2019

Shown on model 221

Courtesy of MERCEDES-BENZ USA

Shown on model 221

Courtesy of MERCEDES-BENZ USA

	Attach/remove
1	Attach quick clamping devices (01) to front and rear wheels and remove tensioning levers	Center mounting bell relative to wheel hub or rear axle shaft flange by locating the check pins in the five mounting holes (arrows) in the disk wheel.
		Quick clamping device	Fig 1
2	Attach wheel mirrors or measurement pickups

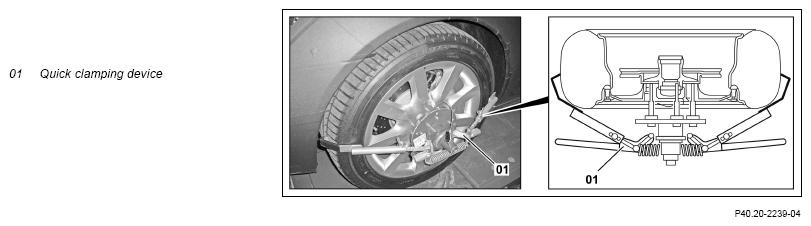

Fig 1: Identifying Quick Clamping Device (124 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
