Remove/Install Rear Axle Spring - AR32.20-P-0232MFA

Model 177, 247

with code U54 (Compound-link axle)

except code U55 (Multi-link axle)

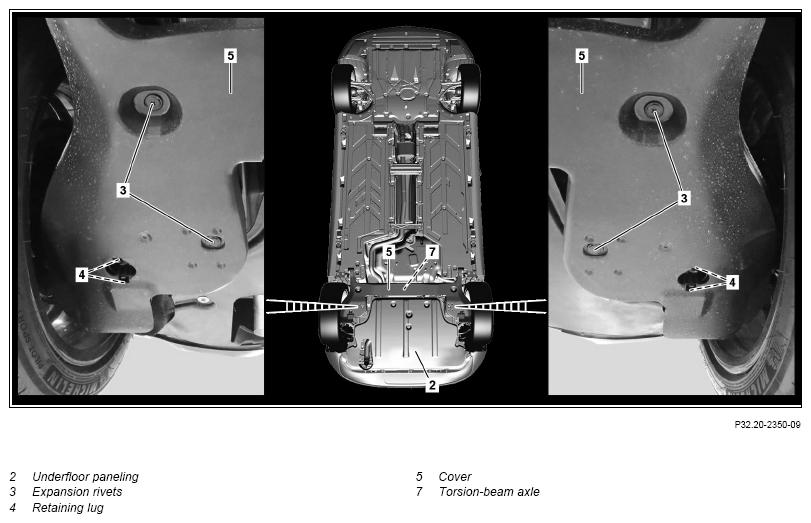

G14688743Courtesy of MERCEDES-BENZ USA
Fig 1: Rear Axle Spring Components Location - Model 247 With Code U54, Except Code U55

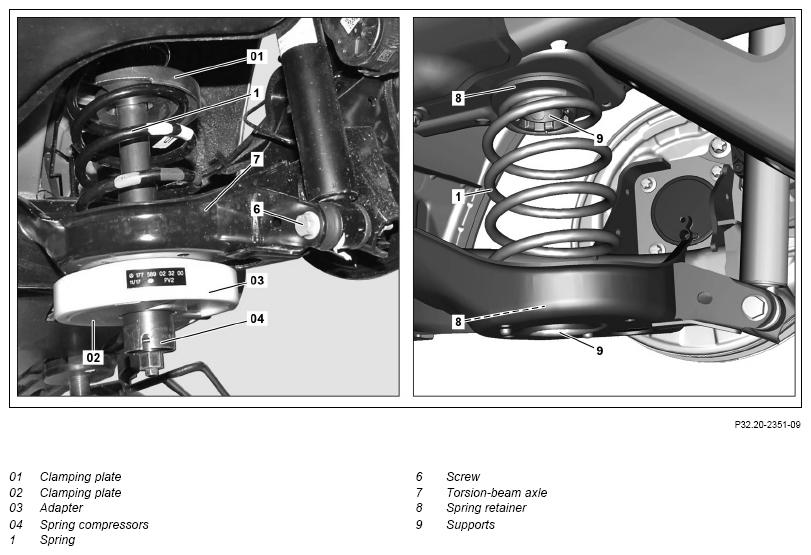

G14688744Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. AS00.00-Z-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVING Remove
1 Remove rear underfloor paneling (2).   AR61.30-P-1001MFA
2 Unclip expansion rivets (3). SPECIAL TOOL Dismantling tool Fig 2
3 Press retaining lugs (4) and remove trim (5).
4 Detach level sensor from torsion-beam axle. Model 177, 247
with code 631 (Static LED headlamps, left-hand traffic)
with code U54 (Compound-link axle) except code U55 (Multi-link axle)
Model 177, 247
with code 632 (Headlamps, LED, static, right-side traffic)
with code U54 (Compound-link axle) except code U55 (Multi-link axle)
Model 177, 247
with code 640 (SAE dynamic LED headlamps right-hand traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
Model 177, 247
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
Model 177, 247
with code 642 (Dynamic LED headlamps, right-hand traffic)
with code U54 (Compound-link axle) except code U55 (Multi-link axle)
AR82.10-P-0005MFA
5 Insert upper clamping plate (01), lower clamping plate (02) and adapters (03) into spring (1) and fit spring compressor (04). NOTES
Ensure correct seating of the clamping plates (01, 02), adapter (03) and spring compressor (04).
Otherwise correct seating of the spring (1) is not guaranteed.

    SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
    SPECIAL TOOL Tensioning device Fig 4
6 Compress left and right springs (1) with spring compressor (04). SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
    SPECIAL TOOL Tensioning device Fig 4
7 Remove screw/bolts (6).   AR32.25-P-0110MFA
8 Swing torsion-beam axle (7) downwards. IMPORTANT The spring (1), which is not removed, remains on the torsion-beam axle (7).
9 Release spring compressor (04) and remove spring (1). SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
    SPECIAL TOOL Tensioning device Fig 4
INSPECT Check
10 Check spring (1) for damage and corrosion. If the spring (1) is reused.
NOTES
Only repair paint damage using a black touch-up paint pen.
Otherwise it could lead to confusion with the color marking of the rear spring (1).
If the spring (1) exhibits damage and severe corrosion,

Replace spring (1).

11 Check upper and lower spring retainers (8) for damage. If the spring retainer (8) is reused.
If there is damage.

Replace spring retainer (8).

INSTALLING Install
12 Position spring (1) in lower and upper spring retainers (8).
13 Insert spring (1) and spring retainers (8) into mounts (9). NOTES
Ensure correct seating of the spring (1) and spring retainers (8) in the mounts (9).
Otherwise correct seating of the spring (1) is not guaranteed.

    SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
    SPECIAL TOOL Tensioning device Fig 4
14 Compress spring (1) with spring compressor (04) and swing torsion-beam axle (7) upwards IMPORTANT Swing far enough upwards until the screws (6) can be screwed in.
The spring (1) must be installed so that the single color dot points downwards.

    SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
    SPECIAL TOOL Tensioning device Fig 4
15 Counterhold nut on screw (6) and tighten. Remove/install rear shock absorber AR32.25-P-0110MFA
16 Release spring compressor (04) at both ends and remove. SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
    SPECIAL TOOL Tensioning device Fig 4
17 Remove clamping plates (01, 02) and adapters (03). SPECIAL TOOL Adapter Fig 5
    SPECIAL TOOL Clamping plates Fig 3
18 Install level sensor of torsion-beam axle. Model 177, 247
with code 631 (Static LED headlamps, left-hand traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
Model 177, 247
with code 632 (Headlamps, LED, static, right-side traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
Model 177, 247
with code 640 (SAE dynamic LED headlamps right-hand traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
Model 177, 247
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
Model 177, 247
with code 642 (Dynamic LED headlamps, right-hand traffic)
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
AR82.10-P-0005MFA
19 Install trim (5).
20 Install rear underfloor paneling (2).   AR61.30-P-1001MFA
INSPECT Check
21 Check headlamp adjustment and correct if necessary.
REFER TO MAINTENANCE   Model 247
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
AP82.10-P-8260AO
REFER TO MAINTENANCE   Model 177
with code U54 (Compound-link axle)
except code U55 (Multi-link axle)
AP82.10-P-8260N
Fig 2: Identifying Dismantling Tool (000 589 95 63 00)
G12619044Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Clamping Plates (164 589 01 63 00)
G09982164Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Tensioning Device (202 589 01 31 00)
G07078265Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Adapter (177 589 02 32 00)
G14688748Courtesy of MERCEDES-BENZ USA
