Active Roll Stabilization, Basic Function - GF32.34-P-1000A
Model all (CAR)
with code 465 (Electric Active Roll Stabilization (EARS))
Model all (CAR)
with code 470 (Semi-active roll stabilization (Semi ARS))
Model all (CAR)
with code 479 (Adjustable chassis)
Overview
This document contains information on:
- General
- Function
General
Active Roll Stabilization is achieved by chassis systems that actively influence the rolling motion of the vehicle body.
Function
In contrast to passive systems such as stabilizers or torsion bars at the front and rear axles that (statically) increase the rolling strength of the suspension, in Active Roll Stabilization, applied forces are counteracted depending on the situation.

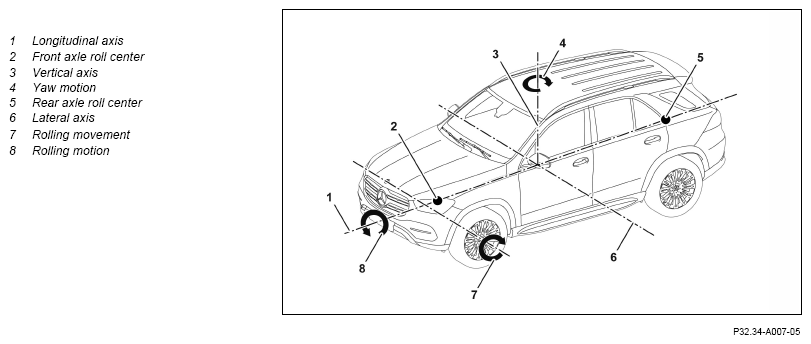

Rolling motions should always be differentiated between driver-induced and roadway-induced rolling. Driver-induced rolling is caused by steering motions which can be felt as transverse forces (yaw, rolling) on the vehicle body. Roadway-induced rolling occurs when driving over uneven roads, e.g. when driving over obstacles on one side that involve lifting and angular movements on the crossbeam or longitudinal axis (pitching/rolling).
In order to actively counteract the vehicle body's rolling motions and ensure an increase in vehicle dynamics, ride comfort and driving safety, the following systems are used:
- Electric Active Roll Stabilization (EARS)
- Semi-active roll stabilization (Semi ARS)
| Function schematics | |||
|---|---|---|---|
| Function schematic for Active Roll Stabilizator | Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) | PE32.34-P-2060-97A | |
| Model 232 with code 470 (Semi-active roll stabilization (Semi ARS)) with code 479 (Adjustable chassis) | PE32.34-P-2060-97B | ||
| Model 223 with code 465 (Electric Active Roll Stabilization (EARS)) | PE32.34-P-2060-97C | ||
| Detailed information | |||
| Active Roll Stabilization, detailed information | Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) |
GF32.34-P-1050A | |
| Model 232 with code 470 (Semi-active roll stabilization (Semi ARS)) with code 479 (Adjustable chassis) |
GF32.34-P-1050B | ||
| Components | |||
| Active roll stabilization lateral acceleration sensor, basic function | Model all (CAR) with code 465 (Electric Active Roll Stabilization (EARS)) |
GF32.34-P-2000A |
