Remove/Install Steering Wheel - AR46.10-P-0100MFA

Model 118, 177, 243, 247

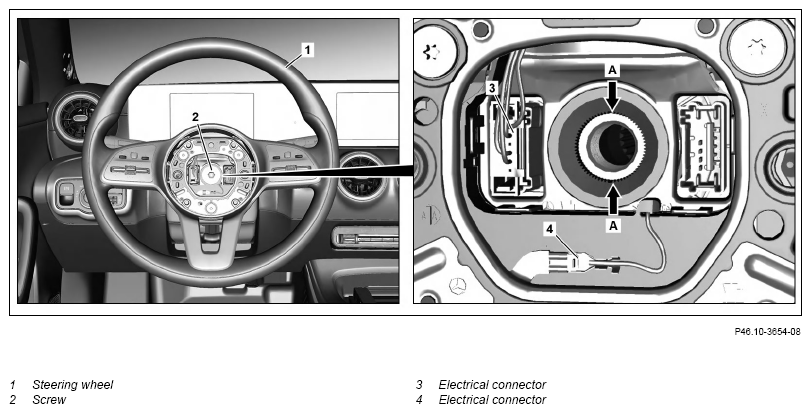

G14689060

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Turn steering wheel (1) into center position.	The front wheels must be in the straight-ahead position.
2	Remove driver airbag from steering wheel (1).		AR91.60-P-0663MFA
3	Counterhold steering wheel (1) and remove bolt (2).	replace the bolt (2).
		Screw/bolt, steering wheel to steering shaft	*BA46.10-P-1001-02F
4	Release and disconnect electrical connection (3).
5	Disconnect electrical connection (4).
6	Remove steering wheel (1).	Align recesses of the splines (arrows A) in steering wheel (1) with markings on the steering shaft.
7	Install in the reverse order.

STEERING WHEEL

Number	Designation		Model 117, 118	Model 177
BA46.10-P-1001-02F	Screw/bolt, steering wheel to steering shaft	Nm	80	80

STEERING WHEEL

Number	Designation		Model 243	Model 247
BA46.10-P-1001-02F	Screw/bolt, steering wheel to steering shaft	Nm	80	80
