Check Outside Of Vehicle In Visible Area For Signs Of Damage - AP60.00-P-0050O

Model 247

Courtesy of MERCEDES-BENZ USA

Show on model 247.0

	Damage and stress caused to paintwork by external influences		AH98.00-P-8070-02A
	Check
1	Check body and detachable parts for damage and completeness.	Dent deformation, Component missing, Crack scratch, Other damage. If problems occur, ↓ rectify the problems. After obtaining special order.

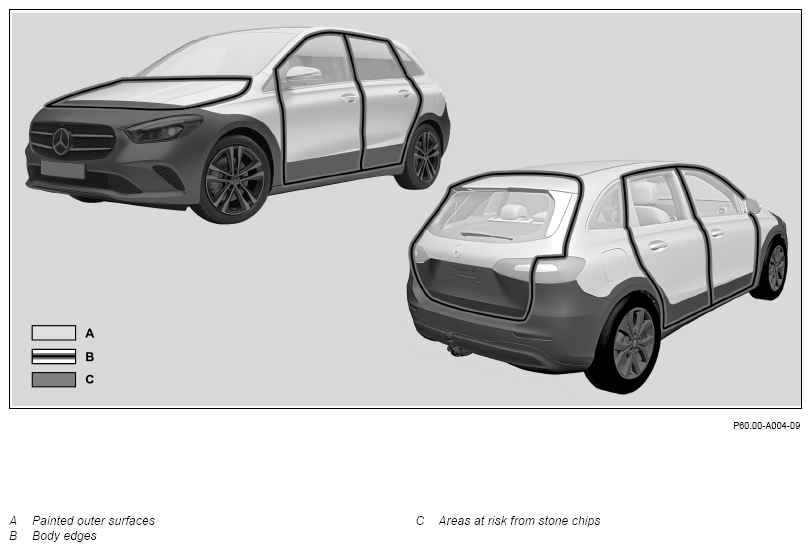

2	Check painted outer surfaces (A), body edges (B) and areas subject to stone impacts (C) for damage and check body for corrosion.	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Stone chipping, Scratch, Environmental influences, Paint peeling off. If problems occur, ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints.
			OF98.00-P-3000-01AD
		After obtaining special order.
3	Check glazing of exterior lights for damage.	Water entry, Reflector dull, Component missing, corrosion, Cracks scratches, Other damage. If problems occur, ↓ rectify the problems. After obtaining special order.
