Notes On Acoustic Foam And Structural Foam In The Vehicle - Ah60.00-P-0039-01MFA
Model 118
Model 177
Model 247
Position of acoustic foam elements (shown on left side of vehicle)
The acoustic foam elements are positioned at different heights in the area of the sidewall.
Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.

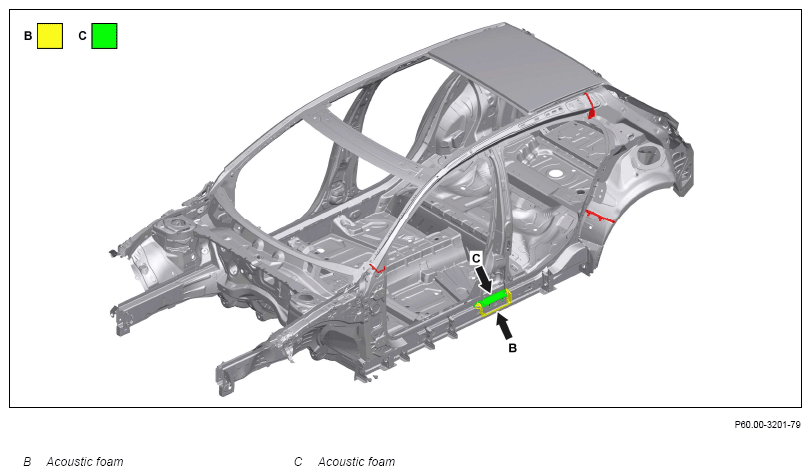

Shown on model 177.0

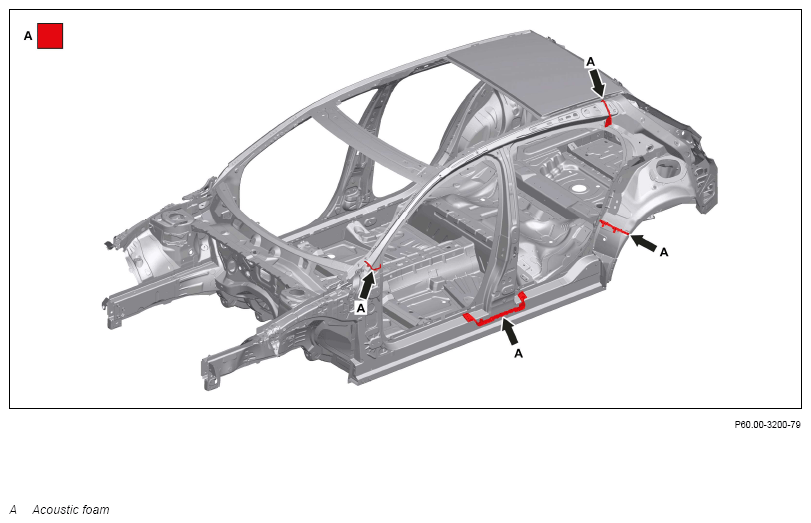

Shown on model 177.0

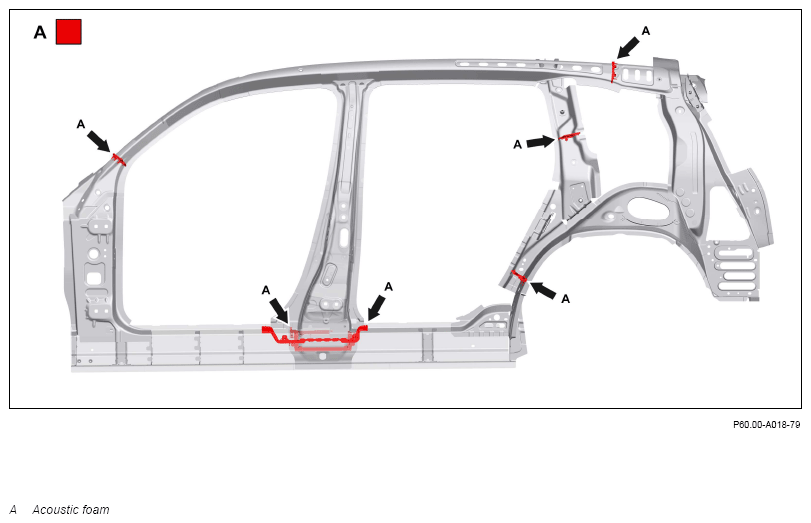

Shown on model 247.6
