Side Longitudinal Member Paneling Complete Preparation - Ar63.30-P-1041-02MFX

Model 247.6/7

The next steps are to be performed on model 247.6 on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

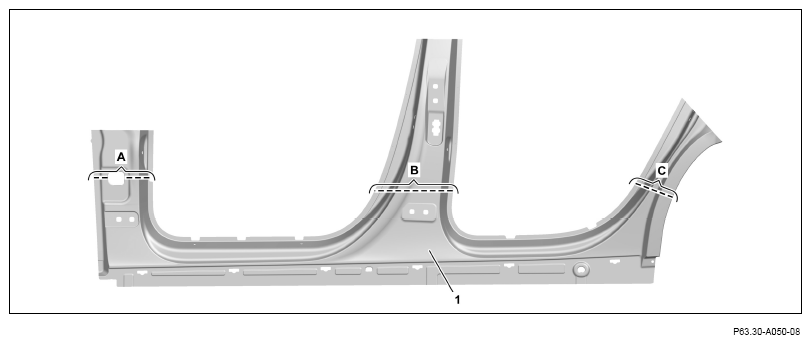

1. Mark separating points on the side longitudinal member paneling (1) and cut (areas A, B, C).

   Transfer separation points from vehicle.

   Courtesy of MERCEDES-BENZ USA

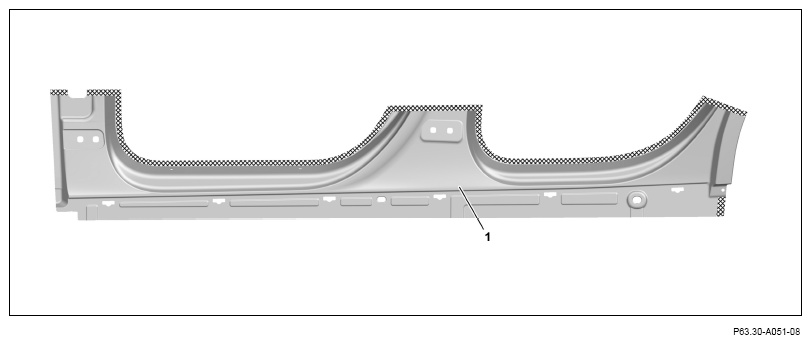

2. Grind mating surfaces on side longitudinal member paneling (1) down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

3. Remove grinding dust.
4. Coat insides of spot weld flanges with zinc dust paint.
