Rear Fender Installation - Ar63.50-P-1400-04MFC

Model 247.0/6/7

MODIFICATION NOTES

25.06.2019 Rear door to side wall Model 247.0 BE60.00-P-1011-01MA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1011-01MA Rear door to side wall Dimension "K" mm 3, 5 (+0, 5) 3, 5 (+0, 5)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1011-01MA Rear door to side wall Dimension "K" mm 3 (+0, 5)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1012-01MA Fuel filler flap/fuel filler flap hybrid to side wall (circumferential) Dimension "L" mm 2 (+1/-0, 5) 2, 5 (± 0, 5)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1012-01MA Fuel filler flap/fuel filler flap hybrid to side wall (circumferential) Dimension "L" mm 2 (+1/-0, 5)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1015-01MA Liftgate/trunk lid to side wall Dimension "O" mm 4, 5 (± 1) 5 (-1/+0, 5)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1015-01MA Liftgate/trunk lid to side wall Dimension "O" mm 5 (± 1, 5)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1016-01MA Liftgate/trunk lid to bumper at rear Dimension "P" mm 6 (± 2) 6 (± 2)
Dimension "P1" mm - 5 (-1/+2)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1016-01MA Liftgate/trunk lid to bumper at rear Dimension "P" mm 6 (± 2)
Dimension "P1" mm 4, 5 (± 1, 0)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1017-01MA Outer tail lamp to side wall Dimension "Q" mm 1, 5 (± 0, 5) 1, 5 (± 0, 5)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1017-01MA Outer tail lamp to side wall Dimension "Q" mm 1, 5 (± 0, 5)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1018-01MA Outer tail lamp to bumper at rear Dimension "R" mm 2 (± 1) 2 (± 1)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1018-01MA Outer tail lamp to bumper at rear Dimension "R" mm 2 (± 1)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1019-01MA Outer tail lamp to liftgate Dimension "S" mm 3, 5 (+1/-0, 5) 4 (± 1)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1019-01MA Outer tail lamp to liftgate Dimension "S" mm 4 (± 1)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1020-01MA Outer tail lamp to inner tail lamp/rear continuous reflector strip Dimension "T" mm 3, 5 (+1/-0, 5) 4 (± 1)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1020-01MA Outer tail lamp to inner tail lamp/rear continuous reflector strip Dimension "T" mm 4 (± 1)
For picture, see AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1023-01MA Bumper at rear to side wall Dimension "W" mm 0 (+0, 5) 0, 5 (-0, 5)
For picture, see AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1023-01MA Bumper at rear to side wall Dimension "W" mm 0 (+0, 5)
For picture, see AR60.00-P-0700-01MFA
Fig 1: Feeler Gauge (129 589 03 21 00)
G07469060Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1012-13A Blind rivet Y2 6.5 x 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1057-07A Basic body filler A 012 989 29 71
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71

IMPORTANT The next steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

  1. Install rear fender (1) and fit.
  2. Install trunk lid.
  3. Install rear bumper.
  4. Install left rear lamp.
  5. Install door seal.
  6. Install lock striker.
  7. Check gap dimensions with SPECIAL TOOL feeler gauge and adjust.
  8. Fix rear fender (1) in place.
  9. Remove lock striker.
  10. Remove door seal.
  11. Remove left rear lamp.
  12. Remove rear bumper.
  13. Remove trunk lid.

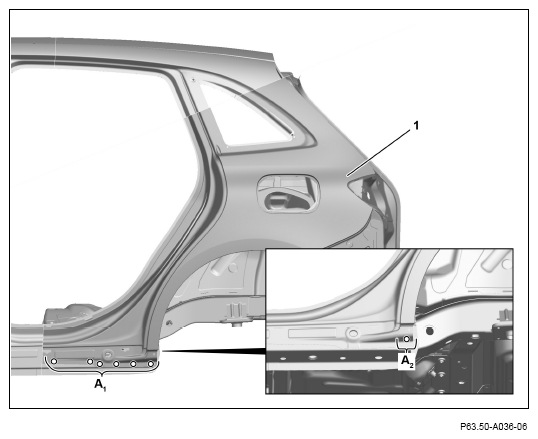

  14. Drill rivet holes on rear fender (1) with a Ø 6.7 mm bit (areas A1 and A2 ).
    G14689430Courtesy of MERCEDES-BENZ USA
  15. Remove rear fender (1).
  16. Deburr rivet holes in rear fender (1) and body on both sides.
  17. Remove drill chips.
  18. Coat insides of riveted joints with zinc dust paint.

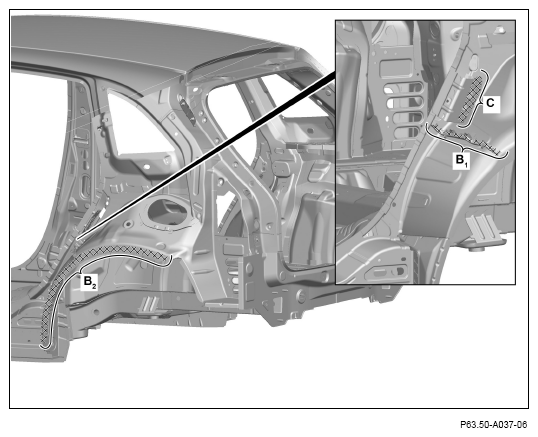

  19. Apply sealant to foam part in cross-hatched area (area B1 ).
  20. Sealant to body in cross-hatched area (area B2 ).

    IMPORTANT Observe processing specification of the sealant.

  21. Apply 2-component adhesive to body in cross-hatched area (area C).

    IMPORTANT Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    G14689431Courtesy of MERCEDES-BENZ USA
  22. Install rear fender (1) and fix in place.
  23. Rivet rear fender (1) with Ø 6.5x12, 5 mm rivets (areas D1 and D2 ).

    IMPORTANT Clamping range is between 2 mm and 5 mm.

    G14689432Courtesy of MERCEDES-BENZ USA
    G14689433Courtesy of MERCEDES-BENZ USA

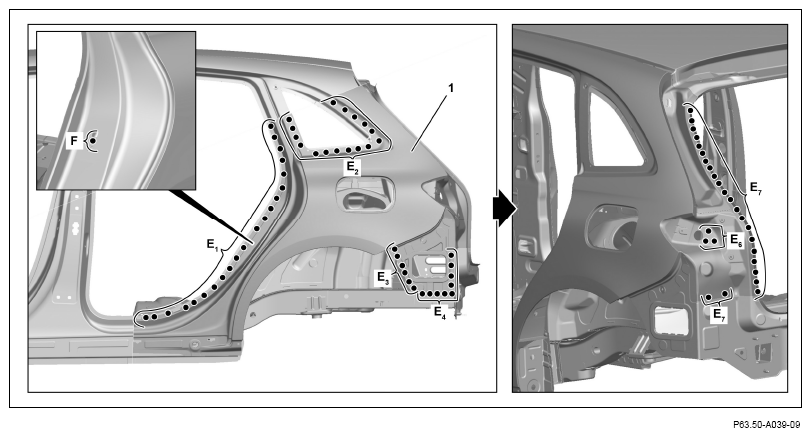

  24. Rear fender (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas E1 , E2 , E 3 E4 , E5 , E6 and E7 ).
  25. Rear fender (1) SHIELDED GAS PLUG WELD (area F).

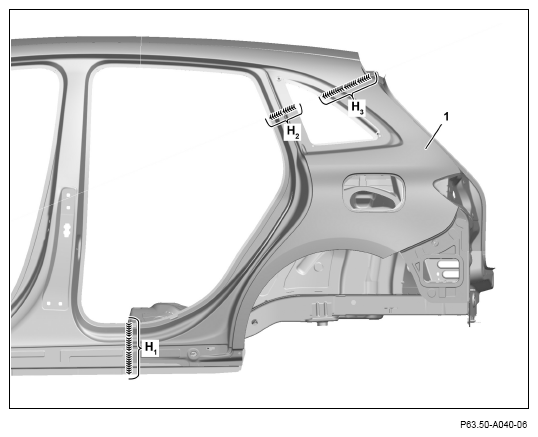

  26. Rear fender (1) SHIELDED GAS SEAM WELD (areas H1 , H2 and H 3 ).

    IMPORTANT Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

  27. Surface grind inert gas weld joints (areas H1 , H2 and H3 ).
  28. Tin-plate surfaces on rear fender (1) with body solder or use basic body filler to spackle them and grind them off (areas H1 , H2 and H 3 ).
  29. Remove solder residues or grinding dust.
    G14689434Courtesy of MERCEDES-BENZ USA
