Mount For Rear Lamp Unit Installation - Ar63.50-P-0004-03MFA

Model 177.0

Model 247.0/6/7

MODIFICATION NOTES

25.06.2021	Picture adapted.	P64.20-6772-06
25.06.2021	Method adapted.	Operation steps 6, 7.

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0
BE60.00-P-1017-01JA	Outer tail lamp to side wall	Dimension "Q"	mm	1 (+1/-0, 5)
BE60.00-P-1017-01JA	Outer tail lamp to side wall	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1017-01MA	Outer tail lamp to side wall	Dimension "Q"	mm	1, 5 (± 0, 5)	1, 5 (± 0, 5)
BE60.00-P-1017-01MA	Outer tail lamp to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1017-01MA	Outer tail lamp to side wall	Dimension "Q"	mm	1, 5 (± 0, 5)
BE60.00-P-1017-01MA	Outer tail lamp to side wall	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0
BE60.00-P-1018-01JA	Outer tail lamp to bumper at rear	Dimension "R"	mm	2 (± 1)
BE60.00-P-1018-01JA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	Dimension "R"	mm	2 (± 1)	2 (± 1)
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	Dimension "R"	mm	2 (± 1)
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0
BE60.00-P-1019-01JA	Outer tail lamp to liftgate	Dimension "S"	mm	3, 5 (+1/-0, 5)
BE60.00-P-1019-01JA	Outer tail lamp to liftgate	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	Dimension "S"	mm	3, 5 (+1/-0, 5)	4 (± 1)
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	Dimension "S"	mm	4 (± 1)
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0
BE60.00-P-1020-01JA	Outside of taillamp to inside of taillamp	Dimension "T"	mm	3, 5 (+1/-0, 5)
BE60.00-P-1020-01JA	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1020-01MA	Outer tail lamp to inner tail lamp/rear continuous reflector strip	Dimension "T"	mm	3, 5 (+1/-0, 5)	4 (± 1)
BE60.00-P-1020-01MA		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1020-01MA	Outer tail lamp to inner tail lamp/rear continuous reflector strip	Dimension "T"	mm	4 (± 1)
BE60.00-P-1020-01MA		For picture, see		AR60.00-P-0700-01MFA

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

The next steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.

The superordinate service document as well as the safety information in the service document must be observed.

Install lamp unit mount (1) and fit.
Install lamp unit.
Check gaps using feeler gauge and adjust.
Model 177.0

Model 177.0

Model 177.0

Model 177.0

Model 247.0/6/7 Model 247.0/6/7 Model 247.0/6/7 Model 247.0/6/7

Shown on model 177.0

Courtesy of MERCEDES-BENZ USA
Fix lamp unit mount (1) in place.
Remove lamp unit.

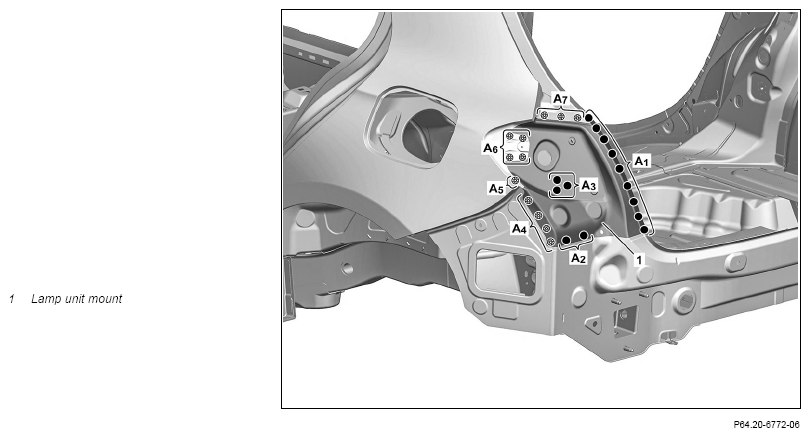

Lamp unit mount (1) (area A₁ , A ₂ and A₃ ).
Lamp unit mount (1) (area A₄ , A₅ , A₆ and A₇ ).
Clean weld joints.
