Main Floor Panel Removal - Ar63.40-P-1180-09MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

Courtesy of MERCEDES-BENZ USA

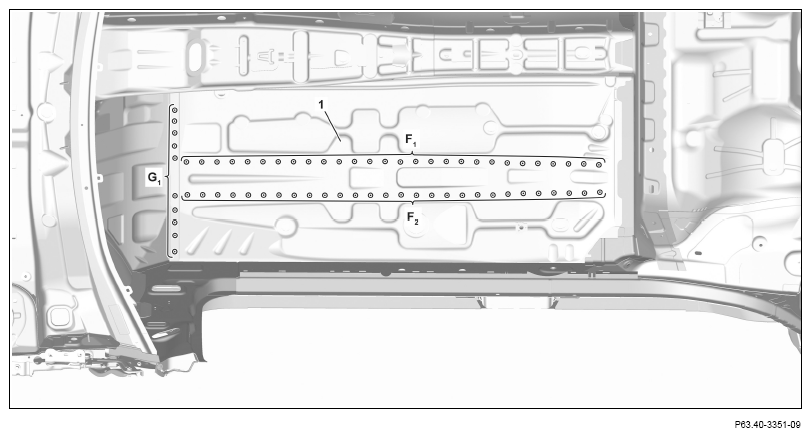

1. Expose spot welds on main floor (1) and cut off (areas F₁ , F₂ , and G ₁ ).

   Courtesy of MERCEDES-BENZ USA

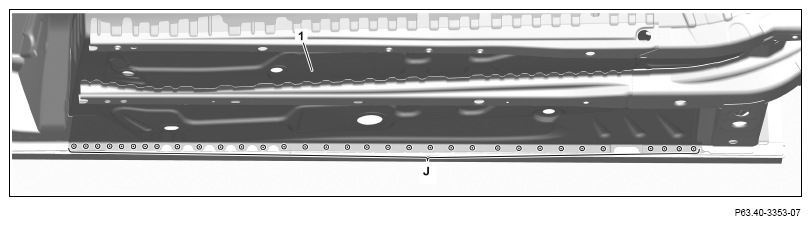

2. Expose spot welds on main floor (1) and cut off (area J).

   Courtesy of MERCEDES-BENZ USA

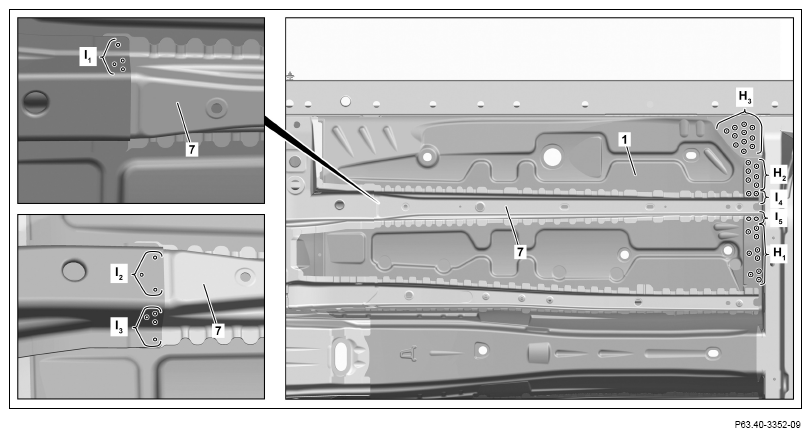

3. Expose spot welds on floor longitudinal member (7) and cut off (areas I₄ and I₅ ).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

4. Drill spot welds on floor longitudinal member (7) with a diameter of 6.2 mm (areas I₁ , I₂ , and I₃ ).
5. Remove floor longitudinal member (7).
6. Expose spot welds on main floor (1) and cut off (areas H₁ , H₂ , and H₃ ).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

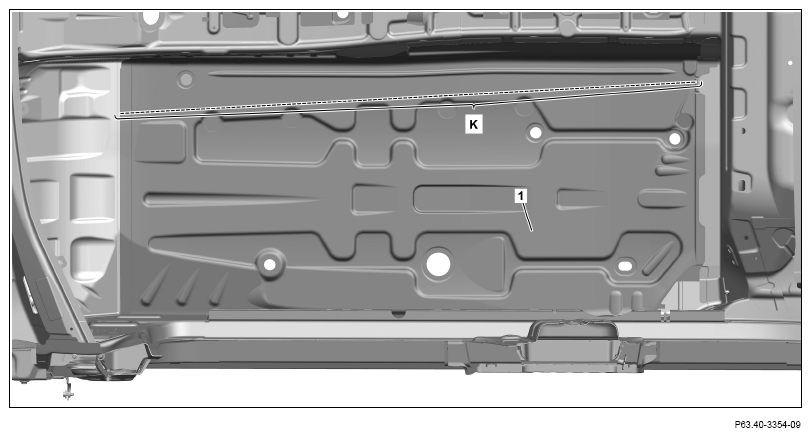

7. Mark separating point for old part on main floor (1) and disconnect (area K).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Courtesy of MERCEDES-BENZ USA

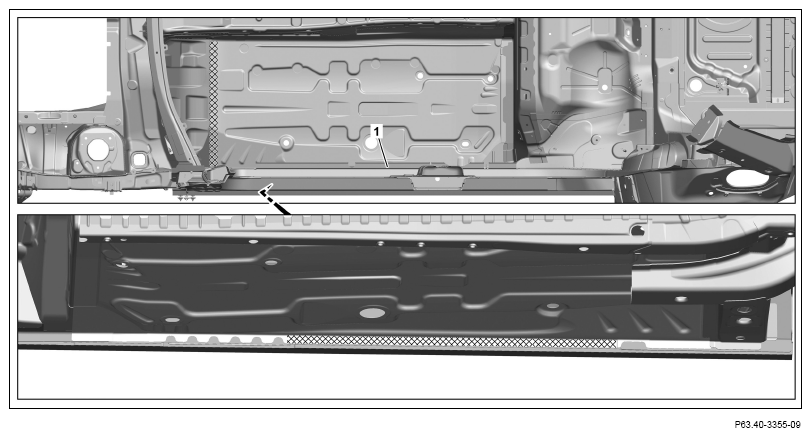

8. Heat up main floor (1) in the cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

9. Remove main floor (1).

   Courtesy of MERCEDES-BENZ USA

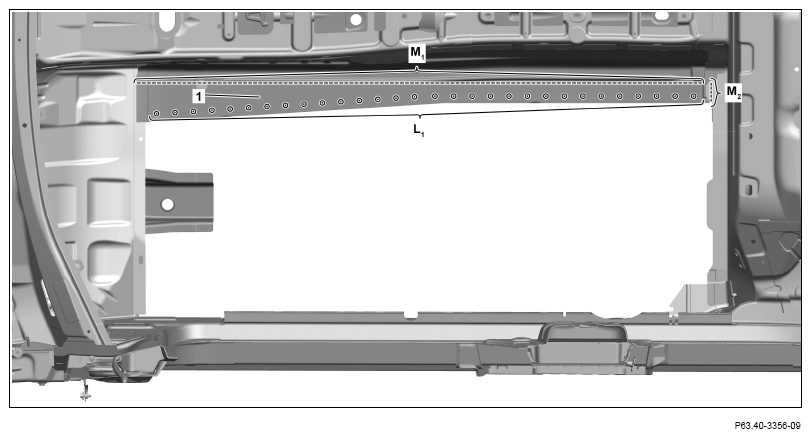

10. Expose spot welds on main floor (1) and cut off (area L₁ ).
11. Mark separating points for new part on the main floor (1) and disconnect (areas M1 and M2).

    Do not cut too deeply.

    Otherwise the components below can be damaged and weakened.

12. Remove main floor (1).

    Courtesy of MERCEDES-BENZ USA

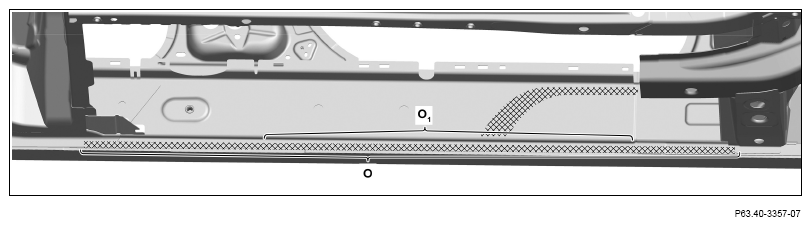

13. Sand down mating surfaces to bare metal in cross-hatched areas.
14. Grind mating surfaces down to bare metal in the cross-hatched areas on both sides (area O).
15. Remove grinding dust and drill chips.
16. Apply zinc dust paint in the cross-hatched areas.

    Bonding surfaces may not be coated with zinc dust paint (area O₁ ).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

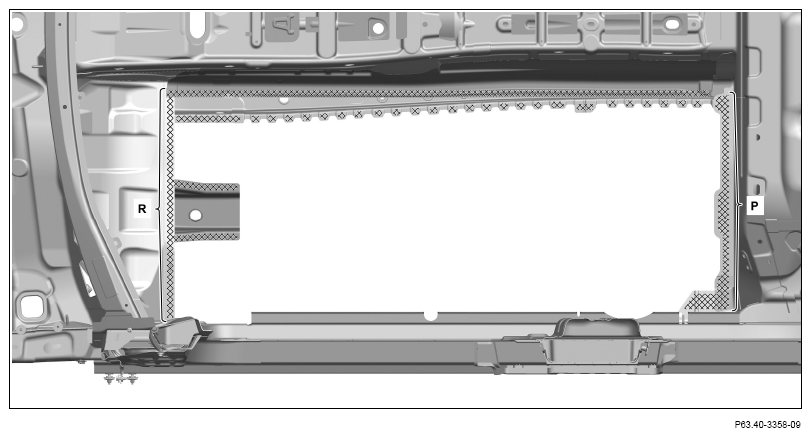

17. Sand down mating surfaces to bare metal in cross-hatched areas.
18. Grind mating surfaces down to bare metal in the cross-hatched areas at the bottom (area P).
19. Remove grinding dust and drill chips.
20. Apply zinc dust paint in the cross-hatched areas.

    Do not coat bonding surfaces with zinc dust paint (area R).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.
