Inner C-Pillar Side Wall Install And Weld In - Ar63.10-P-0700-03MFB
Model 247.0/6/7
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
The next steps are shown on the left side of the vehicle. Perform work in the same way in the event of damage to the right side of the vehicle.
Further information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

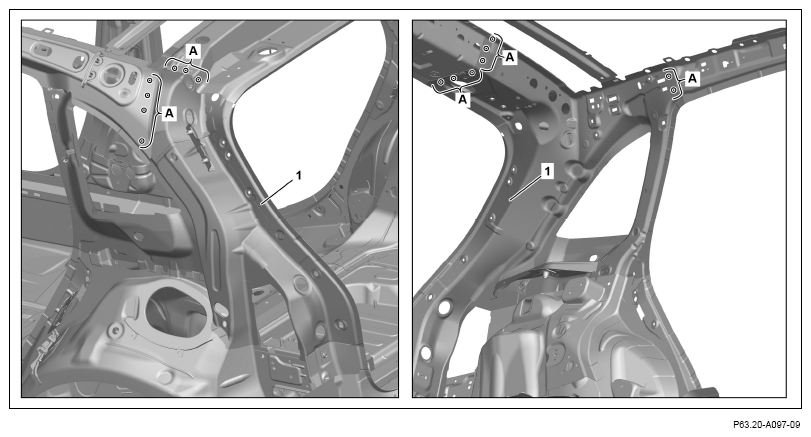

- Install inner C-pillar side wall (1), fit and fix in place.
- Drill rivet holes through the inner C-pillar side wall (1) with a Ø 6.7 mm bit (area A).
- Remove inner C-pillar side wall (1)
- Deburr rivet holes on inner C-pillar side wall (1) and body on both sides.
- Remove drill chips.
- Coat insides of riveted joints with zinc dust paint.

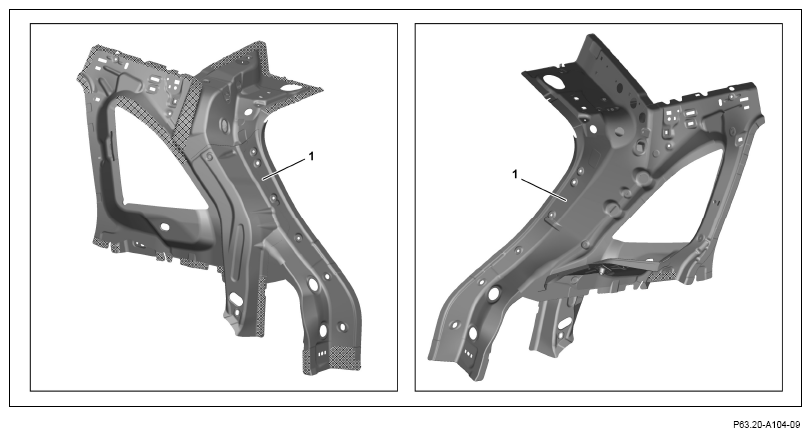

- Apply 2-component adhesive in cross-hatched areas on body.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

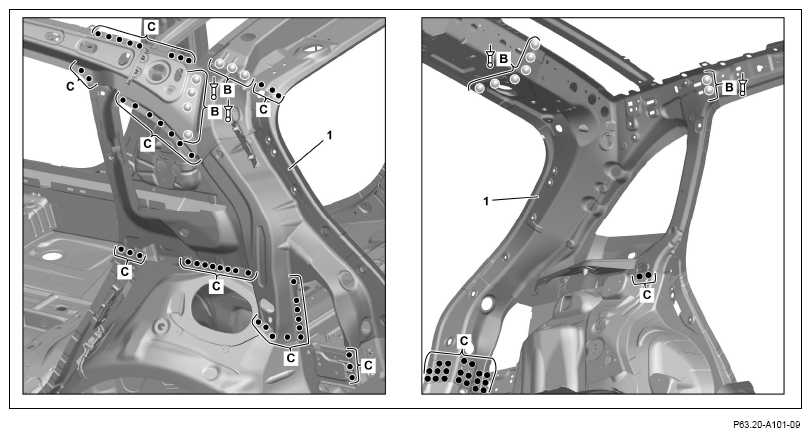

- Install inner C-pillar side wall (1), fit and fix in place.
- Rivet inner C-pillar side wall (1) with Ø 6.4x12 mm rivets (areas B).
- Inner C-pillar side wall (1)
(areas C).
- Clean weld joints no longer accessible after installing rear fender and coat with zinc dust paint.
