Inner B-Pillar Separation - Ar63.20-P-1350-01MFX

Model 247.6/7

The next steps are shown on the left side of the vehicle on model 247.6. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

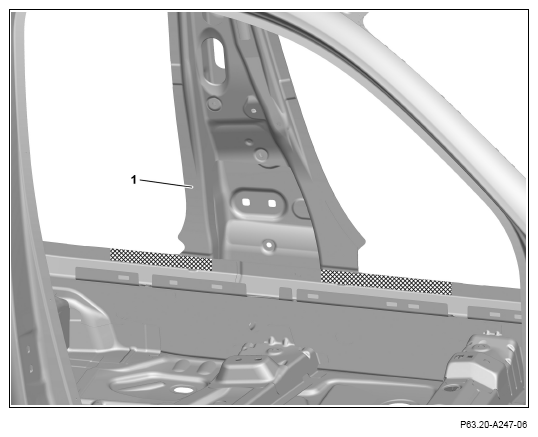

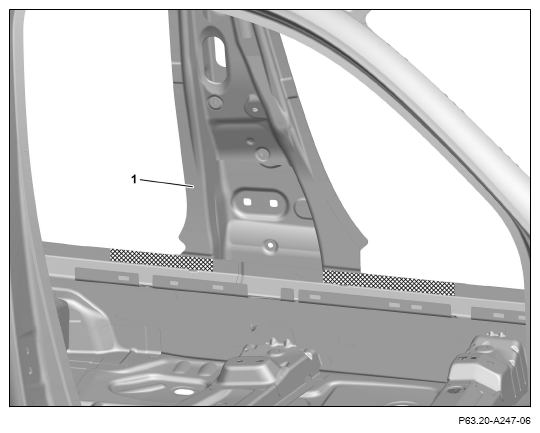

1. Mark separating points on the B-pillar (1) and disconnect (areas A).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Mark separating points along the Y-markings (areas A).

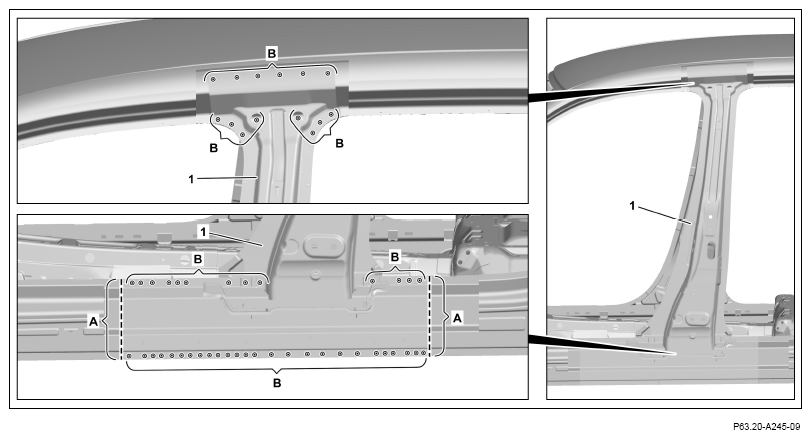

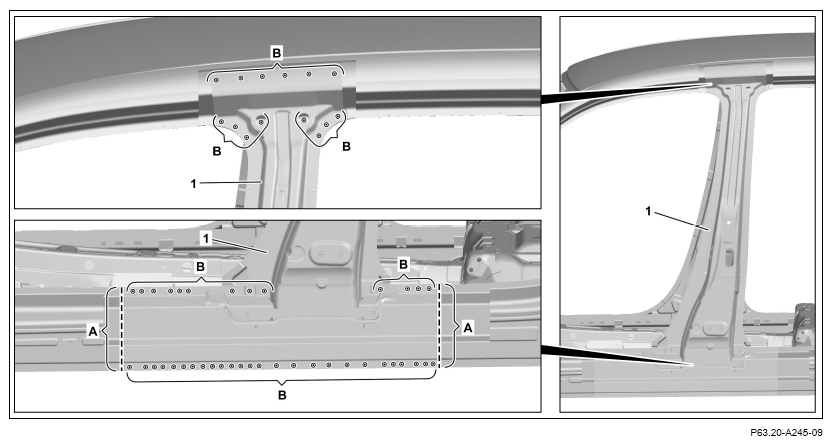

2. Expose spot welds on the B-pillar (1) and cut off (areas B).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

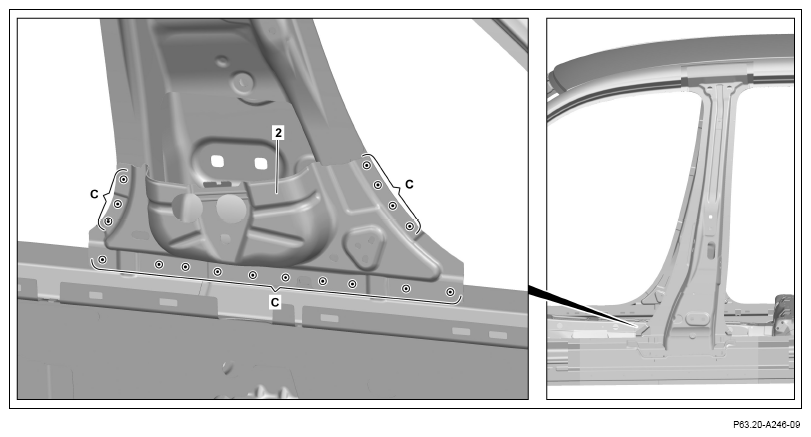

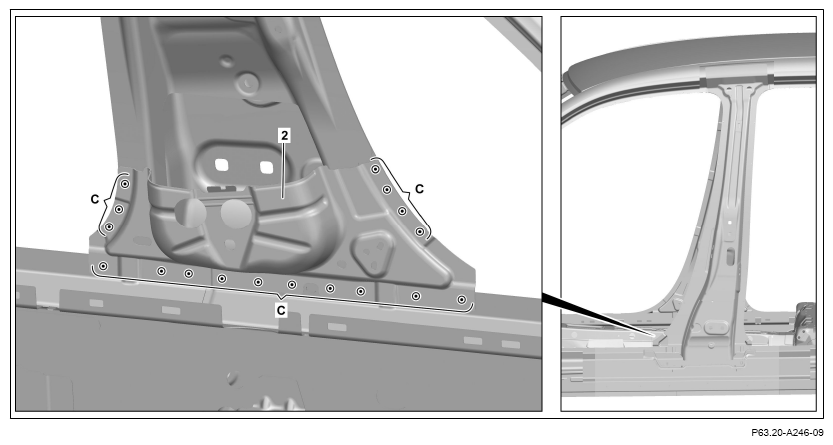

3. Expose spot welds on the reinforcement (2) and cut off (areas C).
4. Remove reinforcement (2).
5. Heat B-pillar (1) in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

6. Remove B-pillar (1).

   Courtesy of MERCEDES-BENZ USA

7. Grind mating surfaces down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

8. Remove grinding dust and drill chips.
9. Coat insides of spot weld flanges with zinc dust paint.

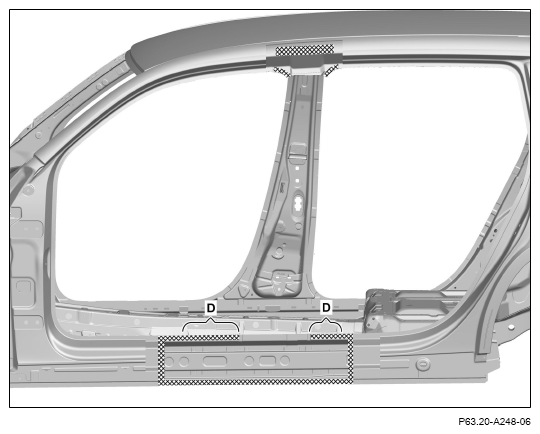

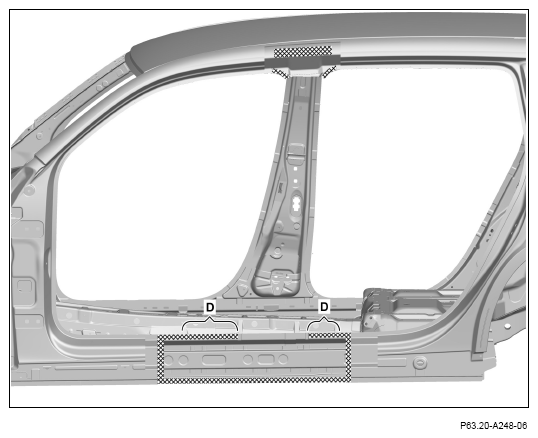

   Do not coat bonding surfaces with zinc dust paint (D areas).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.
