Side Roof Paneling Install And Weld In - Ar65.10-P-1020-03MFB

Model 247.0/6/7

GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1009-01MA Front door to rear door Dimension "I" mm 4 (±0, 5) 4 (±0, 5)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1009-01MA Front door to rear door Dimension "I" mm 4 (±0, 5)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1010-01MA Front door cover to rear door cover (B-pillar) Dimension "J" mm 4 (±1) 4 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1010-01MA Front door cover to rear door cover (B-pillar) Dimension "J" mm 4 (±1)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1013-01MA Roof spoiler to side wall Dimension "M" mm 4, 5 (±1) 4, 5 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1013-01MA Roof spoiler to side wall Dimension "M" mm 4, 5 (±1)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1014-01MA Roof spoiler to roof Dimension "N" mm 5, 5 (±1, 5) 5, 0 (±1, 5)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1014-01MA Roof spoiler to roof Dimension "N" mm 5 (+1/-1, 5)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1015-01MA Liftgate/trunk lid to side wall Dimension "O" mm 4, 5 (±1) 5 (-1/+0, 5)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1015-01MA Liftgate/trunk lid to side wall Dimension "O" mm 5 (±1, 5)
For picture, see   AR60.00-P-0700-01MFA
Fig 1: Feeler Gauge (129 589 03 21 00)
G07469060Courtesy of MERCEDES-BENZ USA
Fig 2: Set Of Spacer Blocks (216 589 02 23 00)
G07321227Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1057-07A Basic body filler A 012 989 29 71

IMPORTANT The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Refer to the superordinate service document for further information. The safety information in the superordinate service document must be observed.

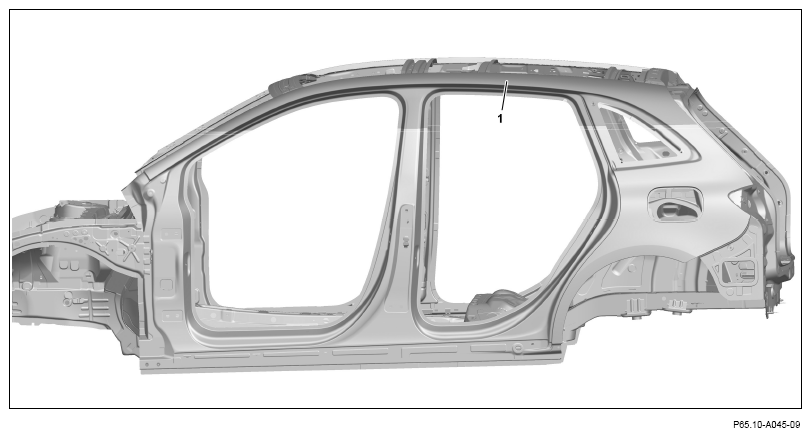

G14689593Courtesy of MERCEDES-BENZ USA
    1. Model 247.0/6/7

      except code 413 (Automatic panoramic sliding sunroof)

      Install side roof paneling (1) and center roof paneling and fit with SPECIAL TOOL spacer blocks and SPECIAL TOOL feeler gauge.

    2. Model 247.0/6/7

      with code 413 (Automatic panoramic sliding sunroof)

      Install side roof paneling (1) and rear roof paneling and fit with SPECIAL TOOL spacer blocks and SPECIAL TOOL feeler gauge.

    1. Model 247.0/6/7

      except code 413 (Automatic panoramic sliding sunroof)

      Remove side roof paneling (1) and center roof paneling.

    2. Model 247.0/6/7

      with code 413 (Automatic panoramic sliding sunroof)

      Remove side roof paneling (1) and rear roof paneling.

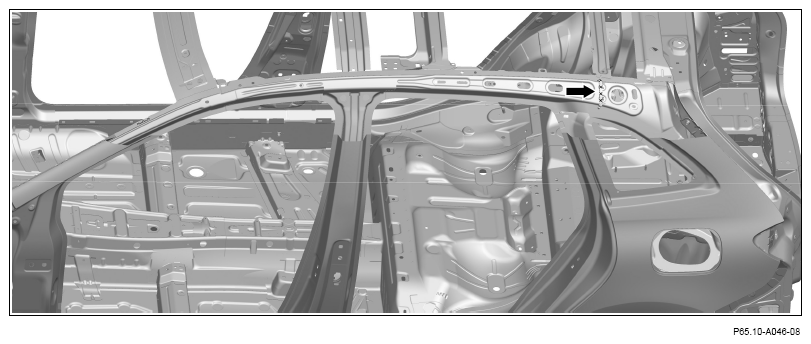

      G14689594Courtesy of MERCEDES-BENZ USA
  3. Sealant shall be applied to foam part (arrow).
  4. Install side roof paneling (1) and fix in place.
  5. SPECIAL TOOL Remove spacer blocks.

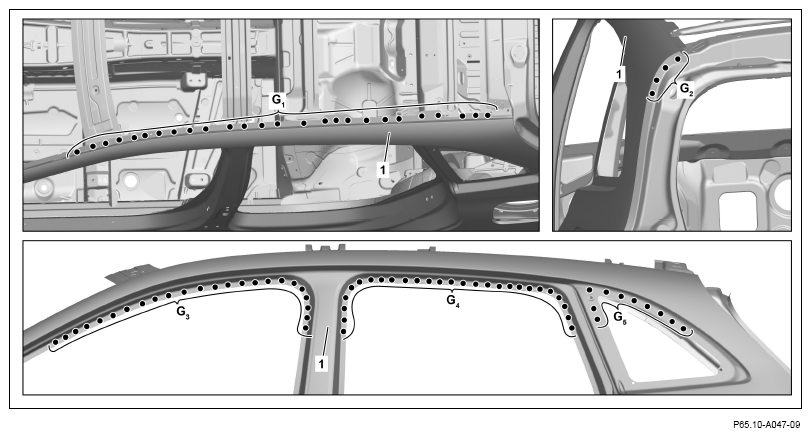

    G14689595Courtesy of MERCEDES-BENZ USA
  6. Side roof paneling (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas G1 , G3 , G4 , and G5 ).
  7. Side roof paneling (1) SHIELDED GAS PLUG WELD (area G2 ).

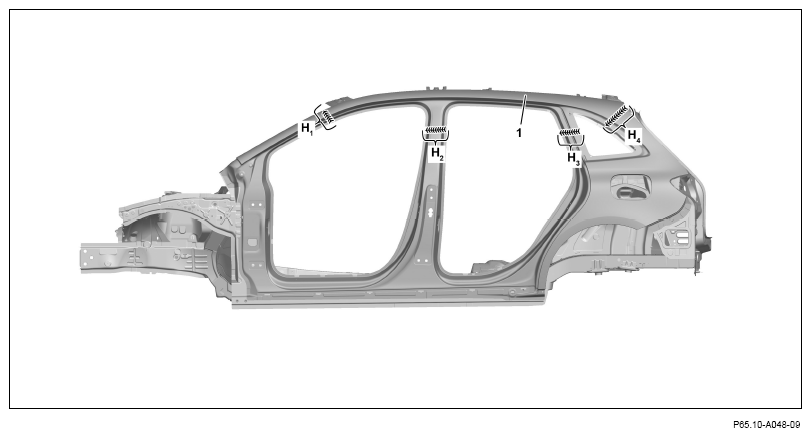

    G14689596Courtesy of MERCEDES-BENZ USA
  8. Side roof paneling (1) SHIELDED GAS SEAM WELD (areas H1 , H2 , H3 , and H4 ).
  9. Surface grind inert gas welds on side roof paneling (1) (areas H1 , H2 , H3 , and H4 ).
  10. Grind inert gas plug welds down flat on side roof paneling (1) (area G2 ).
  11. Clean weld joints on side roof paneling (1).
  12. Tin surfaces on rear side roof paneling (1) with body solder or use basic body filler to spackle them and grind them off (areas H1 , H2 H3 and H4 ).
  13. Remove solder residues or grinding dust.
