Remove/Install Bottom Side Paneling In Trunk - AR68.30-P-4801MFX

Model 243.6, 247.6

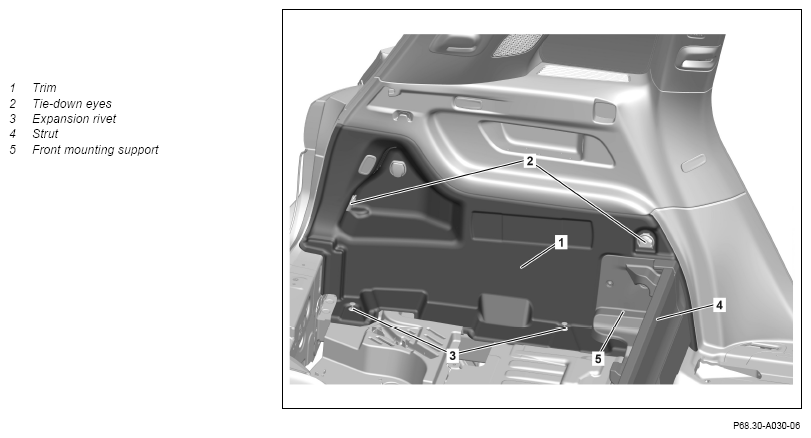

Shown on model 247.6 without code 847 (3rd seat row)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove corresponding rear seat of 3rd seat row.	Model 243.6, 247.6 with code 847 (3rd seat row)	AR91.12-P-0007MFX
2	Remove rear-end center-section trim.		AR68.30-P-4786MFV
3	Remove tie-down eyes (2).	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
4	Remove expansion rivets (3).	Dismantling tool	Fig 1
5	Remove cover of the rear mounting support and remove the nuts underneath.	Model 243.6, 247.6 with code 847 (3rd seat row)
6	Fold back rear seat.
7	Remove strut (4).	Model 243.6, 247.6 except code 847 (3rd seat row)
8	Release front mounting support (5) until the trim (1) can be removed.	Model 243.6, 247.6 except code 847 (3rd seat row)
9	Release trim (1) until the electrical connectors are accessible.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
10	Release and disconnect electrical connectors.	The number of electrical connectors varies according to vehicle equipment.
11	Remove trim (1).	: Ensure that the trim (1) is inserted correctly in the adjacent trims. Damage to adjacent trim can otherwise occur.
12	Convert detachable parts.	When replacing trim (1).
13	Install in the reverse order.
14	Position edge guard in the working area.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
