Remove/Install TV Antenna Amplifier Under Left A-Pillar Trim - AR82.62-P-8308MFA

Model 118, 177, 243, 247 with code 498 (Japanese version) with code 865 (digital TV)

Shown on model 177.0

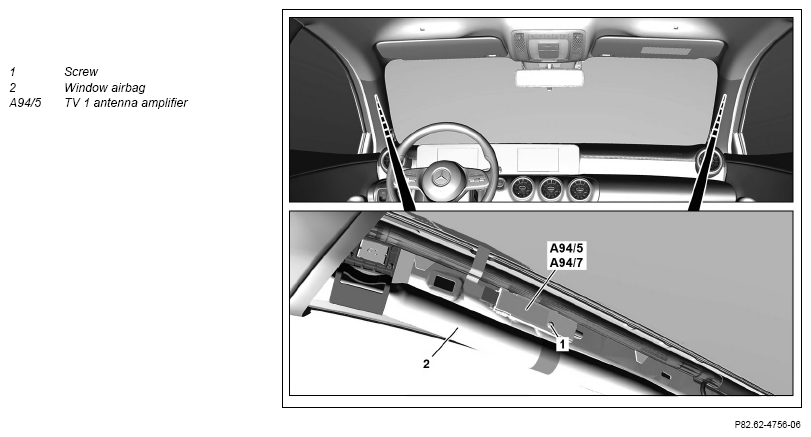

Fig 1: TV Antenna Amplifier Under Left A-Pillar Trim Components Location - Model 247 With Code 498 With Code 865 (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left A-pillar trim.		AR68.30-P-4050MFA
2	Loosen screw/bolt (1).	The screw (1) remains on the TV 1 antenna amplifier (A94/5), but it must be completely unscrewed.
3	Unclip TV 1 antenna amplifier (A94/5) and release and disconnect electrical connector.	Do not damage window airbag (2). Dismantling tool	Fig 2
4	Install in the reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
