Remove/Install Remote Parking Pilot/Stationary Heater/Telephony Antenna Splitter - AR82.70-P-0013MFA
Model 177, 247
with code 503 (Remote-controlled parking)
with code 899 (Multifunction telephony)
with code B24 (Remote control for Auxiliary heating)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel | AR68.10-P-1000MFA | |

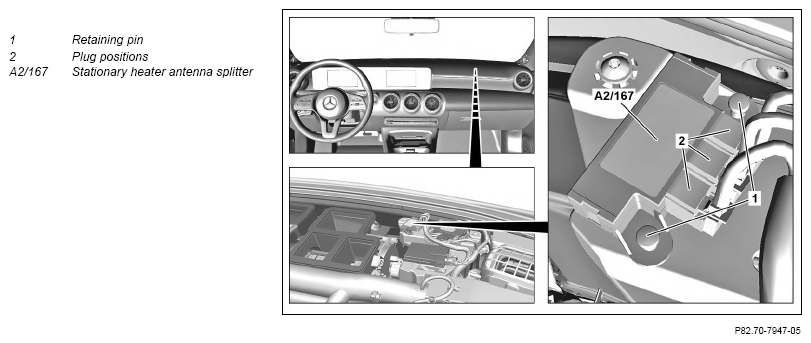

| 2 | Use suitable tool to pull out retaining pins (1) | ||
| 3 | Release and disconnect electrical connectors from slots (2) | ||
| 4 | Unclip stationary heater antenna splitter (A2/167) from holder | ||
| 5 | Install in the reverse order |
