Remove/Install Loudspeaker On D-Pillar - AR82.62-P-7860MFX
Model 243.6, 247.6 with code 810 (Premium sound system)

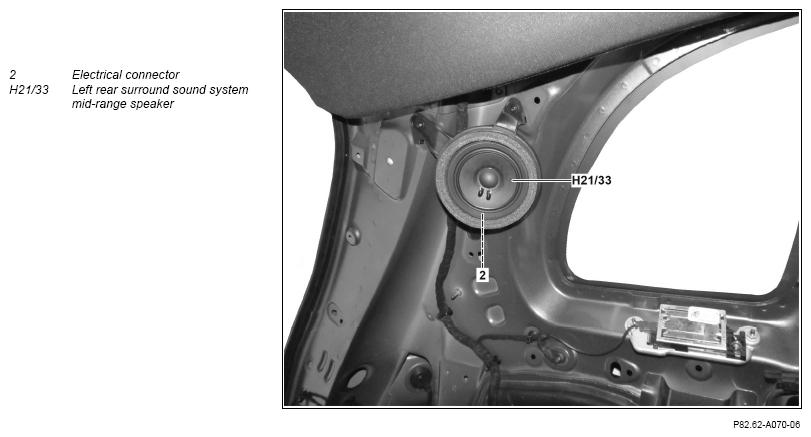

Shown on left side of vehicle
| Remove/install | |||
| 1 | Remove D-pillar trim. | AR68.30-P-4497MFX | |
| 2 | Unclip left rear surround sound system mid-range speaker (H21/33) or right rear surround sound system mid-range speaker (H21/34). | Do not crush or kink or subject electric lines to tension. This leads to line damage. |
|
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Install in the reverse order. |
