Remove/Install License Plate Lamps - AR82.10-P-5161MFV
Model 177, 247
MODIFICATION NOTES
| 13.08.2019 | Remove center liftgate trim. | Operation step 1.2. |

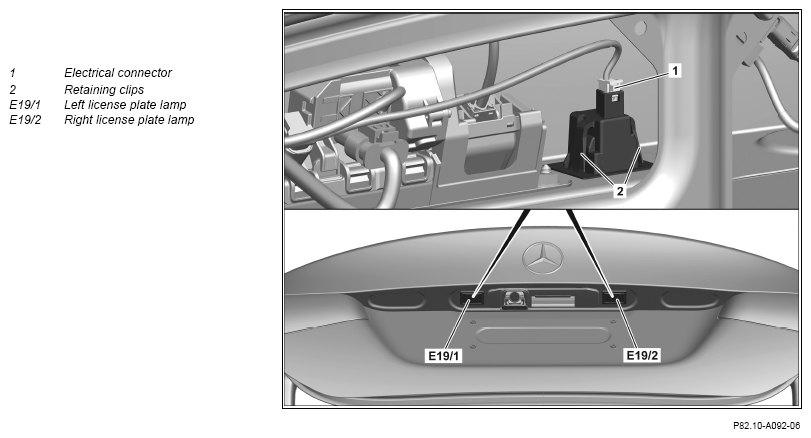

Shown on model 177.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Release trunk lid trim until left license plate lamp (E19/1) or right license plate lamp (E19/2) is accessible. | Model 177.1/9 | AR68.30-P-8151MFV |
| 1.2 | Remove center liftgate trim. | Model 177.0, 247 | AR72.20-P-6618MFA |
| 2 | Release retaining clamps (2) and take out left license plate lamp (E19/1) or right license plate lamp (E19/2) downward. | ||
| 3 | Release and disconnect electrical connector (1) on left license plate lamp (E19/1) or right license plate lamp (E19/2). | ||
| 4 | Install in the reverse order. |
