Check Wiper Arms And Adjust - AR82.30-P-6000MFA
Model 118, 177, 243, 247
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Check | |||
| 1 | Move windshield wiper system to park position | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

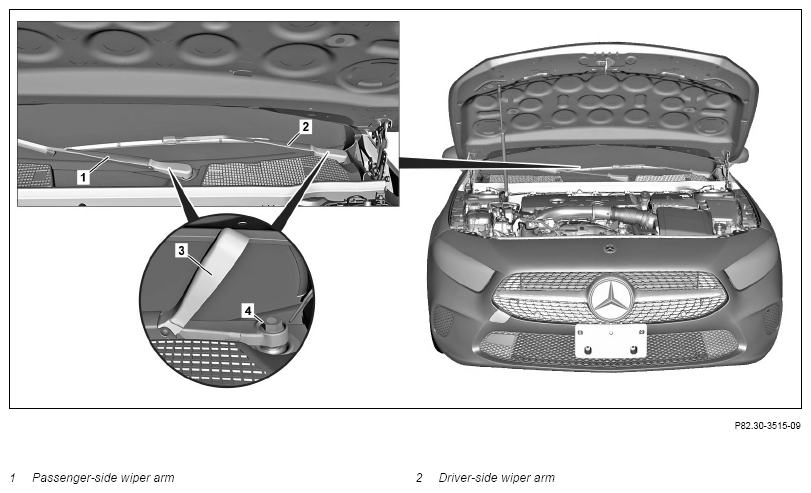

| 3 | Remove wiper blades | When working on the driver-side wiper arm (2) or passenger-side wiper arm (1), make sure that it does not drop onto the windshield. Otherwise, there is a risk of damage to the windshield. |
|
| Clean | |||
| 4 | Clean wiper blade mountings on driver-side wiper arm (2) and passenger-side wiper arm (i) using a clean cloth | ||
| 5 | Check angle of incidence for driver-side wiper arm (2) and passenger-side wiper arm (1) relative to windshield | AR82.30-P-6000-01MFA | |
| Angle of incidence of passenger-side wiper arm in parked position | *BE82.30-P-1004-01M | ||
| Angle of incidence of driver-side wiper arm in parked position | *BE82.30-P-1003-01M | ||
| Fig 2 | |||
| Fig 1 | |||
| 6 | Adjust angle of incidence for driver-side wiper arm (2) or passenger-side wiper arm (1) | If check values deviate from the tolerance range of the adjustment values. | |
| AR82.30-P-6000-01MFA | |||
| Angle of incidence of passenger-side wiper arm in parked position | *BE82.30-P-1004-01M | ||
| Angle of incidence of driver-side wiper arm in parked position | *BE82.30-P-1003-01M | ||
| Fig 2 | |||
| Fig 1 | |||
| 7 | Install wiper blades |
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BE82.30-P-1003-01M | Angle of incidence of driver-side wiper arm in parked position | Left-hand drive vehicle | ∠° | +3, 4...+7, 4 | +3, 4...+7, 4 |
| Right-hand drive vehicle | ∠° | -3, 4...-7, 4 | -3, 4...-7, 4 | ||
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 243, 247 | ||
|---|---|---|---|---|
| BE82.30-P-1003-01M | Angle of incidence of driver-side wiper arm in parked position | Left-hand drive vehicle | ∠° | +3, 5...+7, 5 |
| Right-hand drive vehicle | ∠° | -3, 5...-7, 5 | ||
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BE82.30-P-1004-01M | Angle of incidence of passenger-side wiper arm in parked position | Left-hand drive vehicle | ∠° | +3, 3...+7, 3 | +3, 3...+7, 3 |
| Right-hand drive vehicle | ∠° | -3, 3...-7, 3 | -3, 3...-7, 3 | ||
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS
| Number | Designation | Model 243, 247 | ||
|---|---|---|---|---|
| BE82.30-P-1004-01M | Angle of incidence of passenger-side wiper arm in parked position | Left-hand drive vehicle | ∠° | +3, 4...+7, 4 |
| Right-hand drive vehicle | ∠° | -3, 4...-7, 4 | ||
