Remove/Install Air Intake Pipe Upstream Of Exhaust Gas Turbocharger - AR09.10-P-0003MFG
Engine 139 in model 118, 177, 247
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove on-board electrical system battery (G1). | Engine 139 in model 118, 177, 247 except code B01 (48V technology) | AR54.10-P-0005MFA |
| 2 | Remove air filter housing. | AR09.10-P-1150MFG | |
| 3 | Remove screws (2) and remove heat shield (3). | ||
| 4 | Remove screw (20) and disconnect bleed line (8) from air intake pipe (1). | *BA00.10-P-1002-04A | |
| 5 | Unscrew screw (9). | *BA00.10-P-1002-04A | |
| 6 | Release and disconnect electrical connector (10) from the temperature sensor upstream of the exhaust gas turbocharger (B19/11). | ||
| 7 | Release and disconnect electrical connector (11) from the pressure sensor downstream of the air filter (B28/11). | ||
| 8 | Release and disconnect electrical connector (12) from the overrun mode bypass air switchover valve (Y101). | ||
| 9 | Remove retaining clamps (13) from the air intake pipe (1). | ||
| 10 | Remove screw (14) of the purge line. | *BA00.10-P-1002-04A | |
| 11 | Release and disconnect electrical connector (17). | ||
| 12 | Open clamp (15) of the air intake pipe (1) on the exhaust gas turbocharger. | ||

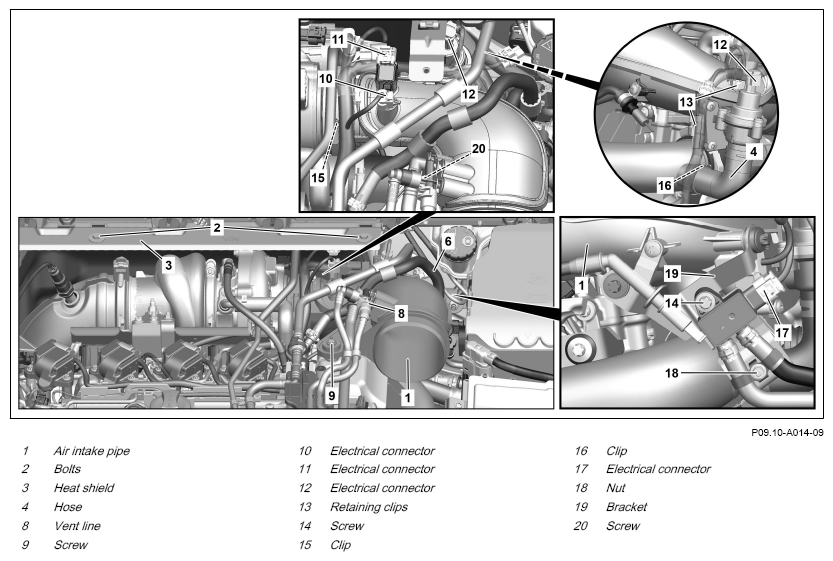

| 13 | Open clamp (16) and push upwards on hose (4). | Fig 1 | |
| 14 | Remove air intake pipe (1). | This leads to damage to the lines and impairs their function. |
|
| 15 | Seal exposed openings with suitable protective covers. | Fig 2 | |
| 16 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
