Drain/Fill Low-Temperature Circuit Coolant - AR09.41-P-6834MFG
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Remove upper engine cover. | ||
| AP01.10-P-2405-01K | |||
| 2 | Remove bottom engine compartment lining. | AR61.20-P-1105MFR | |
| Drain off | |||

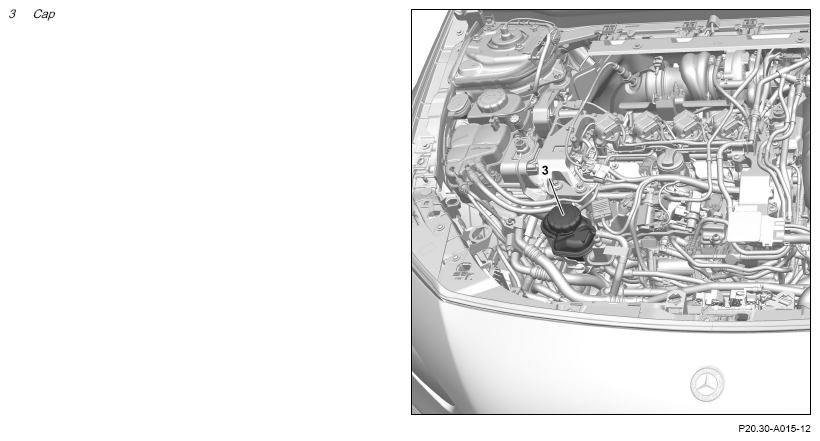

| 3 | Unscrew cap (3) from low-temperature coolant expansion reservoir. | Otherwise, severe injuries may result. |
|

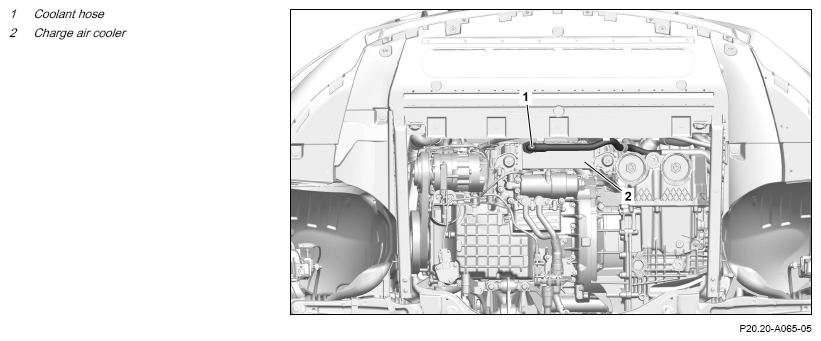

| 4 | Remove coolant hose (1) from charge air cooler (2) and drain coolant into a suitable container. | AR09.41-P-1311-01AL | |
| 5 | Attach coolant hose (1) to charge air cooler. | AR09.41-P-1311-01AL | |
| Pour in | |||
| 6 | Add coolant, bleed engine cooling system, and correct fluid level. | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-06J | |||
| Fig 3 | |||
| Fig 1 | |||
| Fig 4 | |||
| Fig 2 | |||
| Check | |||
| 7 | Check engine cooling system for leak tightness. | AR09.41-P-1010MFG | |
| Install | |||
| 8 | Install lower engine compartment lining. | AR61.20-P-1105MFR | |
| 9 | Install upper engine cover. | ||
| AP01.10-P-2405-01K |
COOLING SYSTEM
| Number | Designation | Engine 139 in model 118, 177, 247 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-06J | Cooling system | Workshop replacement amount | Main circuit | Liter | 11, 6 |
| Low-temperature circuit 1 | Liter | 2, 6 | |||
| Low-temperature circuit 2 | Liter | - | |||
| Antifreeze/water | to -37°C | % | 50/50 | ||
| as from -38°C | % | 55/45 | |||
| References to sheet specification | BB00.40-P-0310ZZ | ||||
