Remove/Install Mechanical Stop Lamp Switch - AR42.10-P-0040MFA
Model 118, 177, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove trim at bottom for instrument panel on driver's side. | AR68.10-P-1501MFA | |

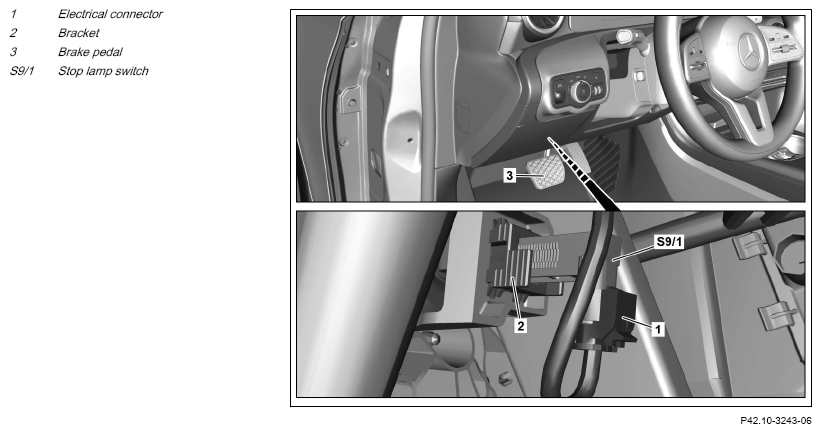

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Pull out brake light switch (S9/1). | ||

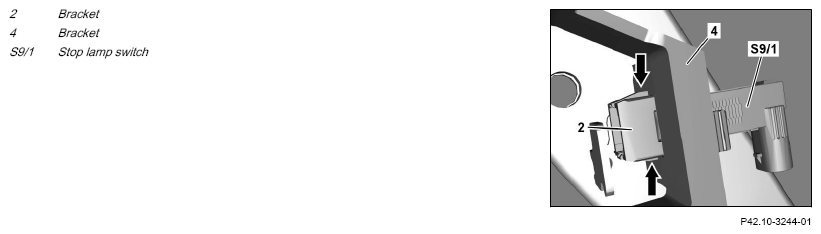

| 4 | Press catch hooks (arrows) together and remove holder (2). | ||
| Install | |||
| 5 | Insert brake light switch (S9/1) all the way into the holder (2). | ||
| 6 | Press brake pedal (3) and insert holder (2) with brake light switch (S9/1) into holder (4). | ||
| 7 | Slowly release and pull back brake pedal (3). | ||
| 8 | Connect electrical connector (1). | ||
| 9 | Install trim at bottom for instrument panel on driver's side. | AR68.10-P-1501MFA |
