Remove/Install Additional Radiator - AR20.20-P-3866MFG
Engine 139 in model 118, 177, 247
MODIFICATION NOTES
| 26.11.2019 | Document completely revised. |

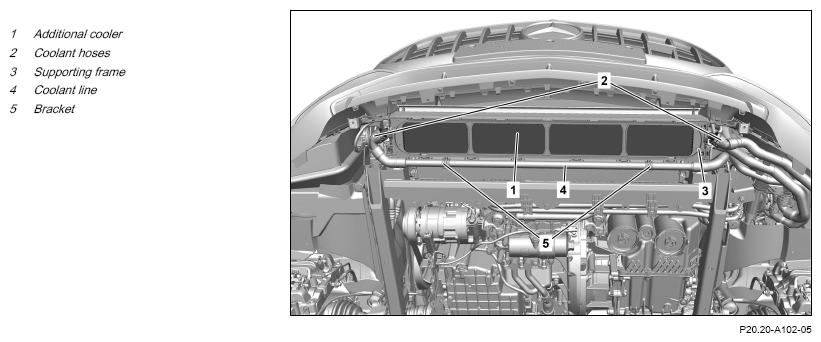

Shown on model 177
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Drain off coolant. | AR20.00-P-1142MFG | |
| 2 | Unclip coolant line (4) from the brackets (5). | ||
| 3 | Unclip and remove the supporting frame (3). | ||
| 4 | Remove coolant hoses (2) from the additional cooler (1). | AR20.20-P-7441-01RQ | |
| 5 | Remove additional cooler (1) downwards. | ||
| 6 | Seal openings using protective cover. | Fig 2 | |
| 7 | Check additional cooler (1) for damage. | If there are problems: ↓ Replace additional cooler (1) |
|
| 8 | Install in the reverse order. |
