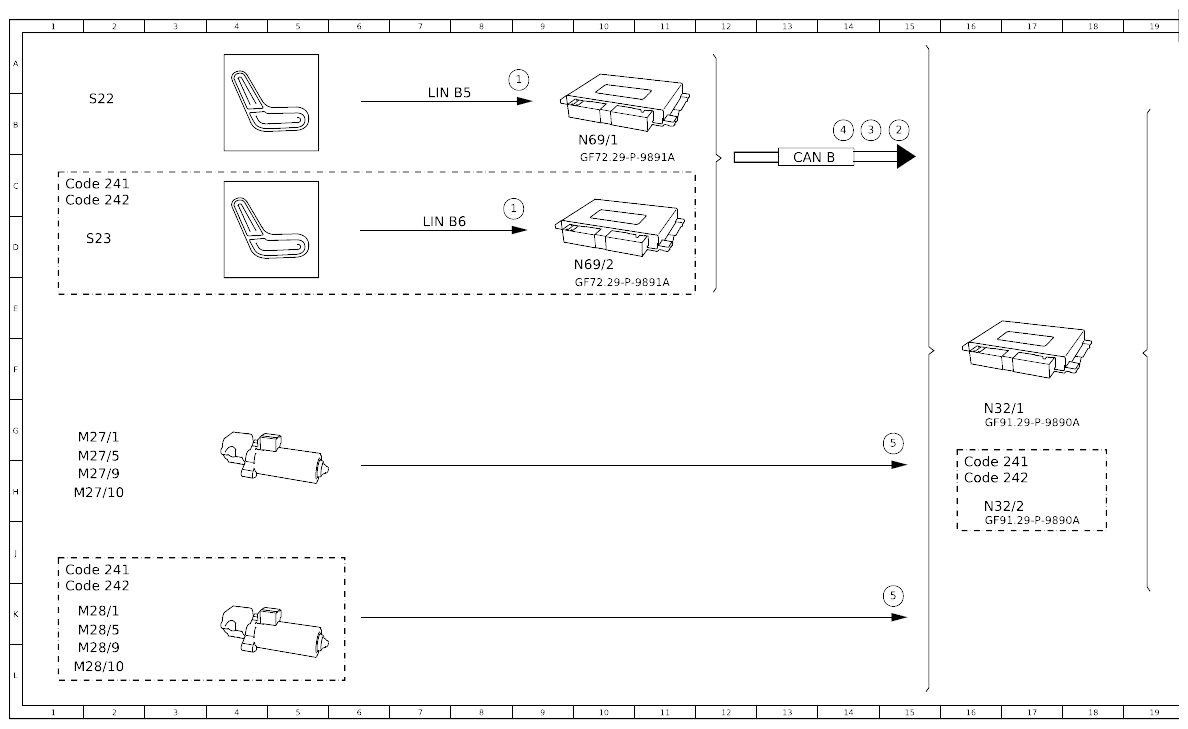

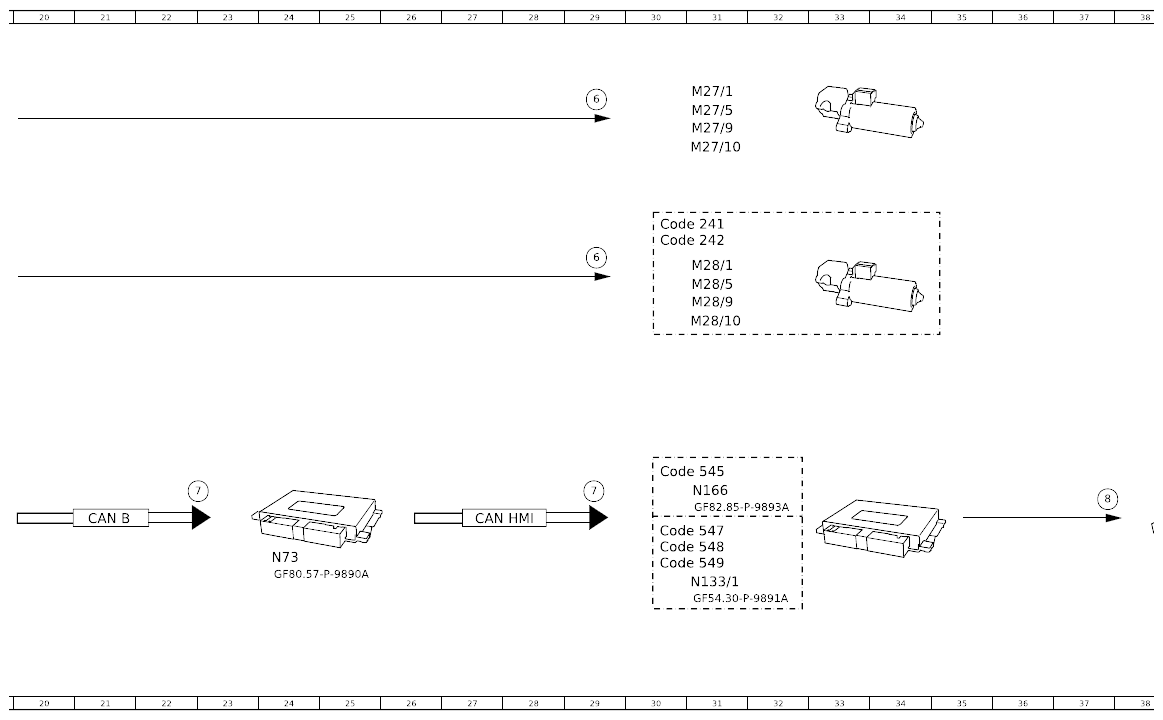

Function Schematic For Front Seat Electric Seat Adjustment - PE91.29-P-2501-97A
Model 118, 177, 243, 247 with code 241 (Left electric adjustable driver's seat with memory)
Model 118, 177, 243, 247 with code 242 (Right electric adjustable driver's seat with memory)
Model 118, 177, 243, 247 with code 275 (Memory Package (driver's seat, steering column and mirror))'
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment switch group, status | 9A |
| 1 | Seat adjustment switch group, status | 9C |
| 2 | Manual adjustment, request | 15B |
| 3 | Store memory position, request | 14B |
| 4 | Adopt memory position, request | 14B |
| 5 | Hall sensors, signal | 15G |
| 5 | Hall sensors, signal | 15K |
| 6 | Seat adjustment motor, actuation | 29B |
| 6 | Seat adjustment motor, actuation | 29D |
| 7 | Acknowledgement tone after memory positions stored successfully, request | 29F |
| 7 | Acknowledgement tone after memory positions stored successfully, request | 29J |
| 8 | Speaker, actuation | 36F |
| 8 | Speaker, actuation | 36J |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 21J |
| CAN HMI | User interface CAN | 27J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 16H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 1C |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 1J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 30D |
| Code 242 | Electrically adjustable front passenger seat with memory function | 16H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 1C |
| Code 242 | Electrically adjustable front passenger seat with memory function | 1K |
| Code 242 | Electrically adjustable front passenger seat with memory function | 30D |
| Code 545 | Connect 5 (NTG6) | 30H |
| Code 547 | Connect 20 Entry (NTG6) | 30J |
| Code 548 | Connect 20 MID (NTG6) | 30J |
| Code 549 | Connect 20 HIGH (NTG6) | 30J |
| H4/61 | Instrument cluster speaker | 38J |
| LIN B5 | Driver door LIN | 7B |
| LIN B6 | Front passenger door LIN | 7D |
| M27/1 | Driver seat fore/aft adjustment motor | 2G |
| M27/1 | Driver seat fore/aft adjustment motor | 31B |
| M27/10 | Driver seat height adjustment motor | 2H |
| M27/10 | Driver seat height adjustment motor | 31C |
| M27/5 | Driver seat backrest inclination adjustment motor | 2G |
| M27/5 | Driver seat backrest inclination adjustment motor | 31B |
| M27/9 | Seat inclination adjustment motor, driver seat | 2H |
| M27/9 | Seat inclination adjustment motor, driver seat | 31B |
| M28/1 | Front passenger seat fore/aft adjustment motor | 2K |
| M28/1 | Front passenger seat fore/aft adjustment motor | 31E |
| M28/10 | Front passenger seat height adjustment motor | 2L |
| M28/10 | Front passenger seat height adjustment motor | 31E |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 2K |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 31E |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 2L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 31E |
| N133/1 | Instrument cluster control unit | 31K |
| N166 | Head unit/instrument cluster control unit | 31H |
| N32/1 | Driver seat control unit | 16G |
| N32/2 | Front passenger seat control unit | 16H |
| N69/1 | Driver door control unit | 10B |
| N69/2 | Front passenger door control unit | 10D |
| N73 | Electronic ignition switch control unit | 24J |
| S22 | Driver seat adjustment switch group | 2B |
| S23 | Front passenger seat adjustment switch group | 2D |
