Bring Up Workshop Level On Instrument Cluster - AP00.20-P-0046E

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 167, 177, 243, 247

with code 521 (Connect 20 Mid (NTG7))

Model 118, 167, 177, 243, 247

with code 525 (Connect 20 High (NTG7))

Model 213

except code 800 (Model year 2020)

except code 806 (Model year 2016)

except code 807 (Model year 2017)

except code 808 (Model year 2018)

except code 809 (Model year 2019)

Model 238

except code 800 (Model year 2020)

except code 807 (Model year 2017)

except code 808 (Model year 2018)

except code 809 (Model year 2019)

Model 257

except code 800 (Model year 2020)

except code 801 (YoM 20/1)

except code 808 (Model year 2018)

except code 809 (Model year 2019)

Model 290

except code 800 (Model year 2020)

except code 801 (YoM 20/1)

except code 809 (Model year 2019)

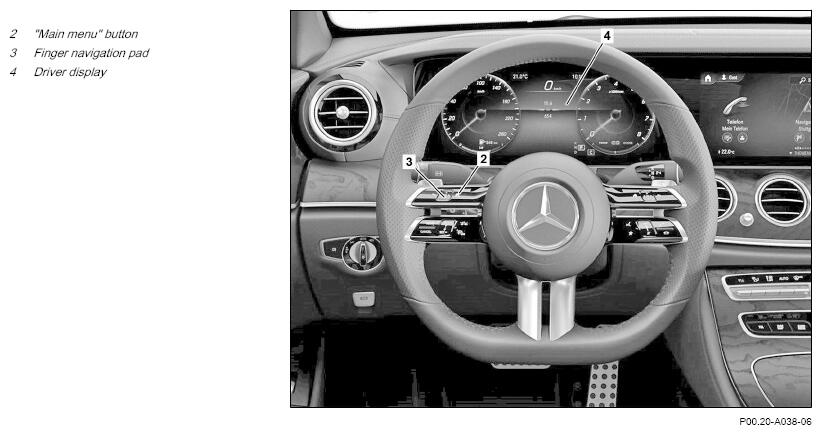

Shown on model 213.073

Courtesy of MERCEDES-BENZ USA

	Preparatory activity
1	Close hood, doors and the trunk lid or liftgate.
2	Switch electronic ignition lock control unit to position "1" (circuit 15R).	No fault messages are allowed to appear on the driver's display (4).
	Open workshop level
3	Press "Main menu" button (2).	The main menu appears on the driver's display (4).
4	Use swipe movements on the finger navigation pad (3) to select the "Trip" menu item on the driver's display (4).
5	Press and hold the "Main menu" button (2) for at least 5 s. Then let go of it completely and, within 1 s, press and hold the "OK" button on the finger navigation pad (3) for 3 s.
6	Press "Main menu" button (2).	The main menu appears on the driver's display (4).
7	Use swipe movements to the left on the finger navigation pad (3) to select the "Workshop" menu item in the driver's display (4).	The Workshop menu with the menu items is shown on the driver display (4): "Vehicle data", "ASSYST PLUS", And other equipment-dependent menu items.
	Close workshop level
8	Press "Main menu" button (2) and close "Workshop" menu.	The main menu appears on the driver's display (4).
	Finishing activity
9	Switch electronic ignition lock control unit to position "0".
