Bring Up Workshop Level On Instrument Cluster - AP00.20-P-0046C
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
except code 521 (Connect 20 Mid (NTG7))
except code 525 (Connect 20 High (NTG7))
Shown on model 177.087
| Preparatory activity | |||
| 1 | Close hood, doors and the trunk lid or liftgate. | ||
| 2 | Switch electronic ignition lock control unit to position "1" (circuit 15 R). | ||
| Open workshop level | |||

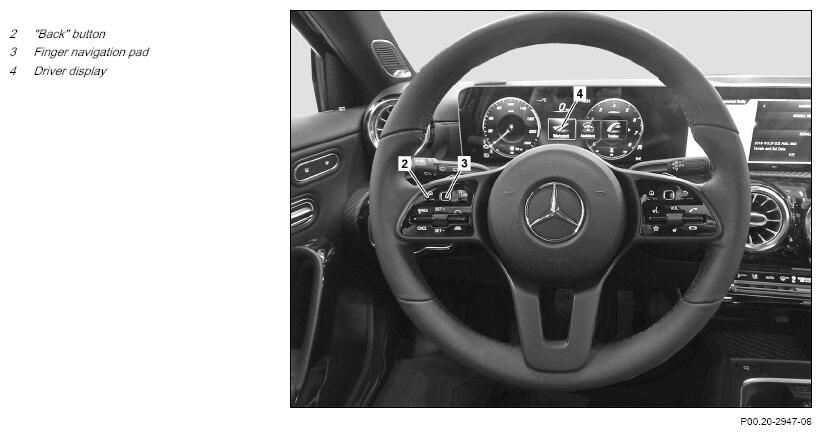

| 3 | Press "Back" button (2) until the main menu is shown on the driver's display (4). | ||
| 4 | Use swipe movements on the finger navigation pad (3) to select the "Trip" menu item on the driver's display (4). | ||
| 5 | Press the "Back" (2) button, then press the finger navigation pad (3) and hold for 5 s. | ||
| 6 | Press "Back" button (2) until the main menu is shown on the driver's display (4). | ||
| 7 | Use swipe movements to the left on the finger navigation pad (3) to select the "Workshop" menu item in the driver's display (4). | "Dynamometer test", "Change brake pad", "ASSYST PLUS". |
|
| Close workshop level | |||
| 8 | Press "Back" button (2) and close "Workshop" menu. | ||
| Finishing activity | |||
| 9 | Switch electronic ignition lock control unit to position "0". |
