Restart Tire Pressure Monitor (TPM) - AR54.30-P-1001-01MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247

Shown on model 177 without code 233 (DISTRONIC PLUS)

Correct tire pressure of all complete wheels.
Switch on ignition.
Confirm fault message.
If installed.

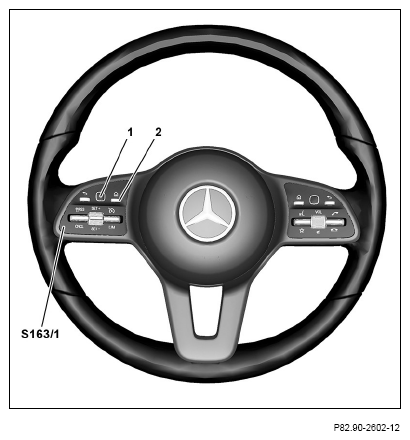

In the instrument cluster multifunction steering wheel button group (S163/1) press the main menu button (2) and use Touch button (1) to call up "Service" menu item in instrument cluster.
Press Touch button (1) to confirm.
Call up "Accept current pressure values as a guideline value only take over" menu item and confirm with Touch button in the multifunction display (1).
Service →

Tire pressure →

Accept current pressure values as a guideline value.

A "Tire pressure monitor restarted" message is shown on the instrument cluster. After the teach-in process, the tire pressure monitor (TPM) monitors the tire pressure set on all wheel and tire assemblies.
Switch off ignition.

Courtesy of MERCEDES-BENZ USA
