Retrofit Mercedes-Benz Dashcam Wiring Harness - AZ54.71-P-0001-01MFY
Model 247.7
Except Code 409 (Left and right front multicontour seat)
Except Code U22 (Lumbar support adjustment)
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A |
| Number | Designation | Model 247 | |||
|---|---|---|---|---|---|
| BA00.19-P-1019-02E | Right front footwell ground point | W15 | M6 | Nm | 10 |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1133-06A | Silikonspray Silikon-Fluid, 0.4 l art. no. 0893 221 000 | Adolf Wurth GmbH & Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 http://www.wuerth.de |
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

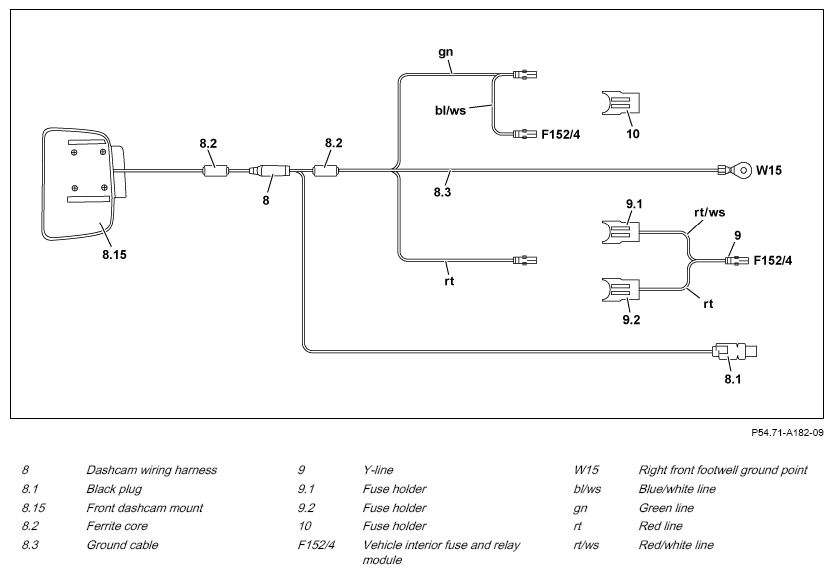

Connection scheme

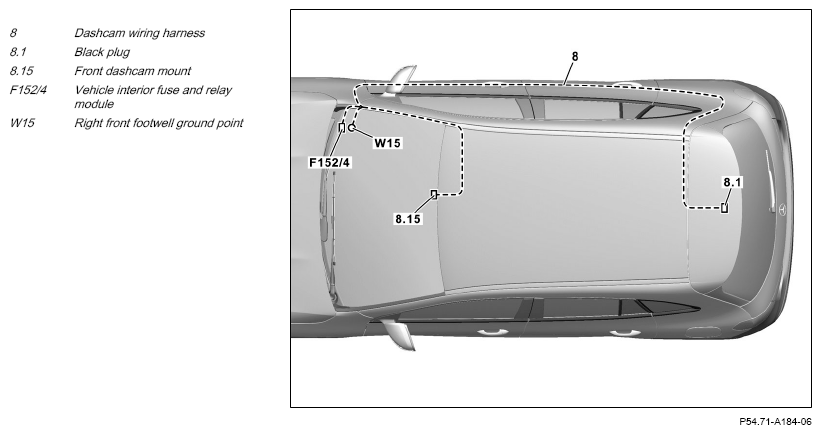

"Retail" routing diagram
"Vehicle Preparation Center" routing diagram
The following work procedure is described using the "Retail" routing diagram.

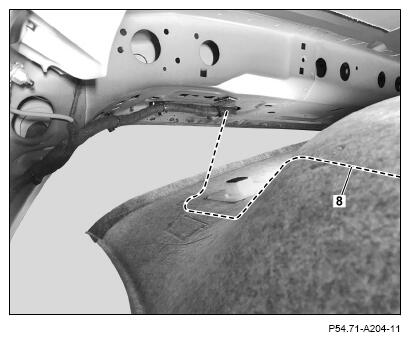

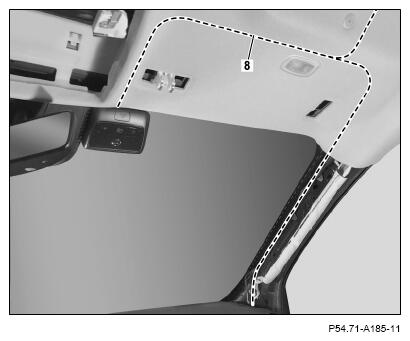

- Route dashcam wiring harness (8) from front dashcam mount (8.15) under roof lining to the right to the A-pillar.

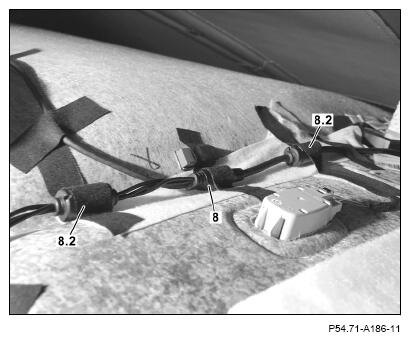

- Use felt adhesive tape to fasten ferrite cores (8.2) of dashcam wiring harness (8) to roof lining.

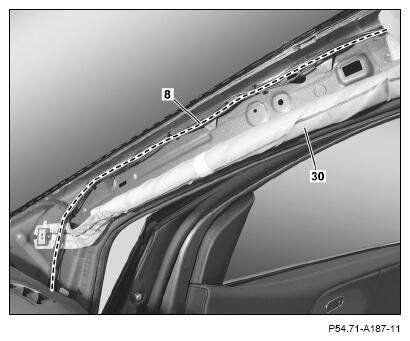

- Route the three individual lines (8.3, GN, RD) of the dashcam wiring harness (8) above the window airbag (30) and into the footwell.
Route the three individual lines (8.3, GN, RD) of the dashcam wiring harness (8) through the cable duct behind the crossmember for the instrument panel.
Use a pull-through device.

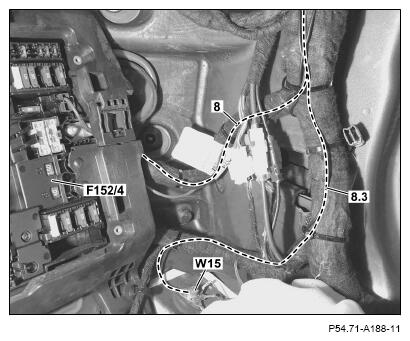

- Route ground line (8.3) of dashcam wiring harness (8) to front right footwell ground point (W15) and connect.
- Route the two individual lines (GN, RD) of the dashcam wiring harness (8) to the vehicle interior fuse and relay module (F152/4) at the right.

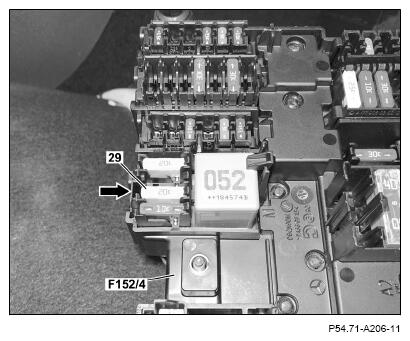

- Remove electrical fuse (29) from slot 124 (arrow) of vehicle interior fuse and relay module (F152/4).
The electrical fuse (29) is reused.
The fuse rating of the electrical fuse (29) is 20 A.

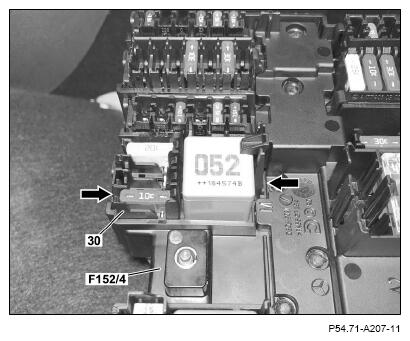

- Release fuse holder (30) of vehicle interior fuse and relay module (F152/4) (arrows) and remove.

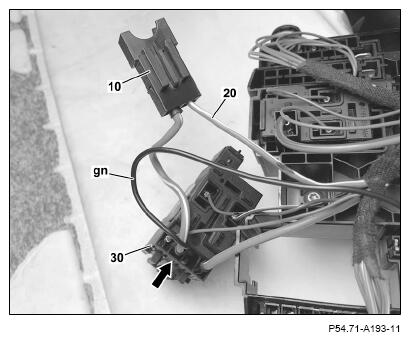

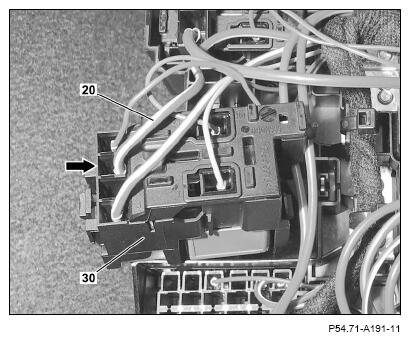

- Remove red/yellow line (20) from contact cavity "5" (arrow) of fuse holder (30).
Take appropriate tool from the
basic wiring harness repair kit or the

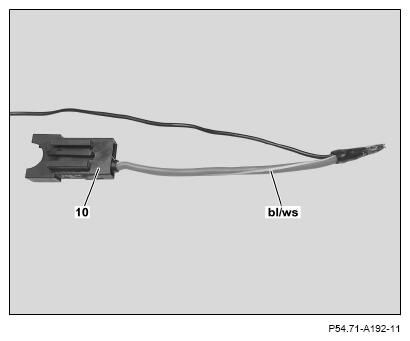

- Install blue/white line (BU/WH) of dashcam wiring harness (8) into fuse holder (10).
- Install removed red/yellow line (20) into free contact cavity of fuse holder (10).
- Install green line (GN) into contact cavity "5" (arrow) of fuse holder (30).

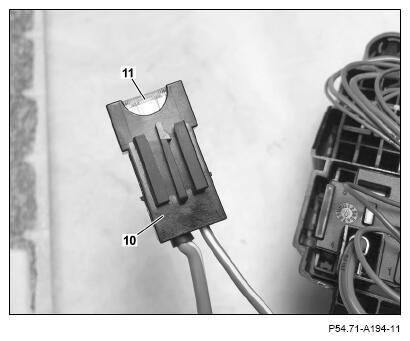

- Install electrical fuse (11) included in parts kit into fuse holder (10).
The fuse rating of the electrical fuse (11) is 25 A.
- On vehicle except code 457 (Comfort suspension with adjustable damping), except code 459 (Steel suspension with adjustable damping), except code U67 (230 V socket in rear), except code U80 (115 V socket)

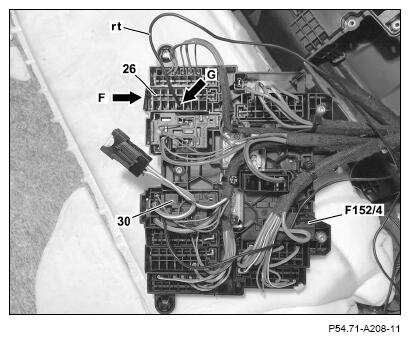

Install fuse holder (26) in empty space "M3D" (arrow F) in vehicle interior fuse and relay module (F152/4).
- Install red line (RD) of dashcam wiring harness (8) into contact cavity "4" (arrow G) of fuse holder (26).
- Lock fuse holder (30) on vehicle interior fuse and relay module (F152/4) again.
Shown on vehicle without code 457 (Comfort suspension with adjustable damping), without code 459 (Steel suspension with adjustable damping), without code U67 (230 V socket in rear), without code U80 (115 V socket)
- Fasten fuse holder (10) using a cable tie.
- Fasten red line (RD) of dashcam wiring harness (8) using a cable tie.

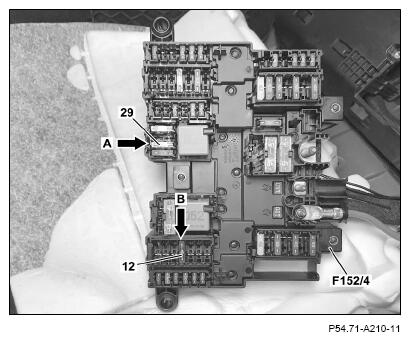

- Install electrical fuse (29) into slot 124 (arrow A) of vehicle interior fuse and relay module (F152/4).
The electrical fuse (29) was removed beforehand.
The fuse rating of the electrical fuse (29) is 20 A.

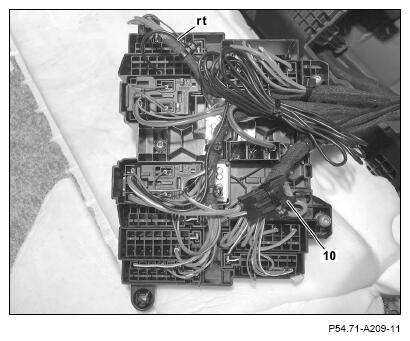

- Install electrical fuse (12) included in parts kit into slot 116 (arrow B) of vehicle interior fuse and relay module (F152/4).
The fuse rating of the electrical fuse (12) is 5 A.
Shown with removed roof lining

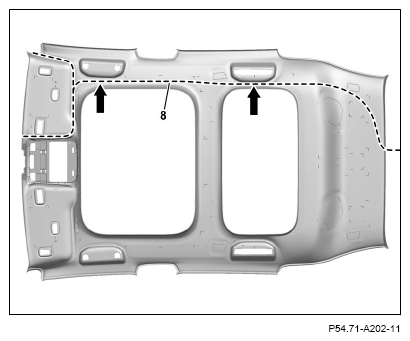

- Route branch-off line for rear dashcam of dashcam wiring harness (8) on roof lining towards rear up to center of roof lining.
Route branch-off line for rear dashcam behind mounts for front and rear grab handles (arrows).
- Strap down excess lengths of dashcam wiring harness (8) in area of their routing.
- Fasten dashcam wiring harness (8) on roof lining using felt adhesive tape.

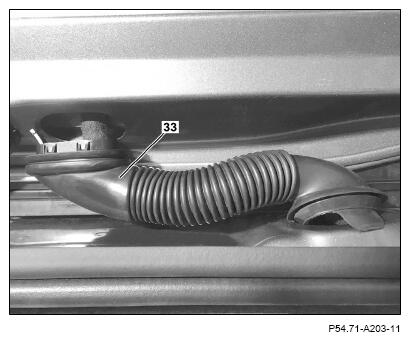

- Remove cable duct (33) from liftgate and from rear roof frame.
- Route dashcam wiring harness (8) through the opening in the rear roof frame up to the opening for the cable duct (33) on the rear roof frame.
- Route dashcam wiring harness (8) through cable duct (33) into liftgate.

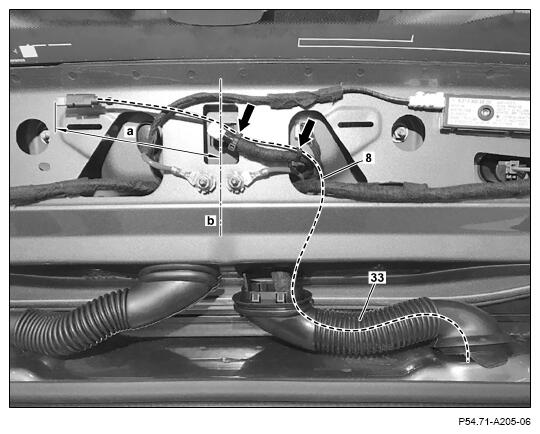

- Route dashcam wiring harness (8) by dimension (a) beyond center of liftgate (b) to the left.
Dimensions:
a = 170 mm
Apply silicon spray to inside of cable duct (33) before routing it.
Use a pull-through device.
- Fix dashcam wiring harness (8) in place using cable ties (arrows).
- Attach cable duct (33).
