Windshield Wiper Motor, Basic Function - GF82.30-P-2001A
Model All (4xWD)
Model All (CAR)

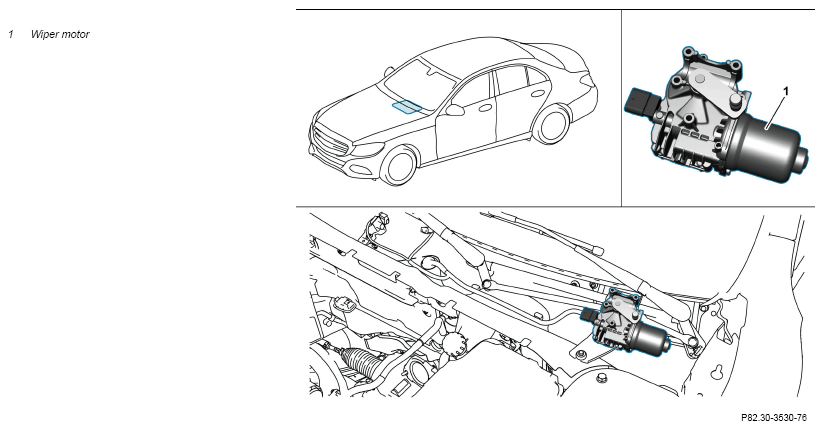

Example illustration of wiper motor
Overview
This document contains information on:
- General
- Function
General
The wiper motor (1) drives the windshield wiper arms.
Function
Depending on the vehicle model, the wiper motor (1) is actuated by the central signal acquisition and actuation module or by the front signal acquisition and actuation module via a LIN connection.
| Component descriptions | |||
| Wiper motor - Component description | Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) |
GF82.30-P-5010A | |
| Model 243 | GF82.30-P-5010B | ||
| Model 206 | GF82.30-P-5010C | ||
| Model 297 | GF82.30-P-5010D | ||
| Model 295 | GF82.30-P-5010E | ||
| Model 232 | GF82.30-P-5010F | ||
| Model 296 | GF82.30-P-5010G | ||
| Model 254 | GF82.30-P-5010H | ||
| Model 464 | GF82.30-P-5010J | ||
| Model 214 | GF82.30-P-5010K | ||
| Model 118, 177, 247 as of model year 2023 |
GF82.30-P-5010L | ||
| Model 167 as of model year 2023 |
GF82.30-P-5010M | ||
| Model 294 | GF82.30-P-5010N |
