Rear Fender New Preparation - Ar63.50-P-1400-03MFC

Model 247.0/6/7

The following operation steps are shown for the new part on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Refer to the superordinate service document for further information.

Observe safety information in the superordinate service document.

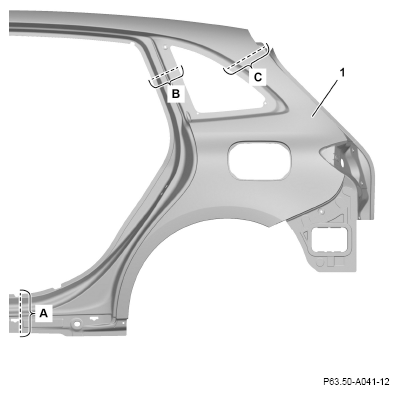

Shown on model 247.6/7

Courtesy of MERCEDES-BENZ USA

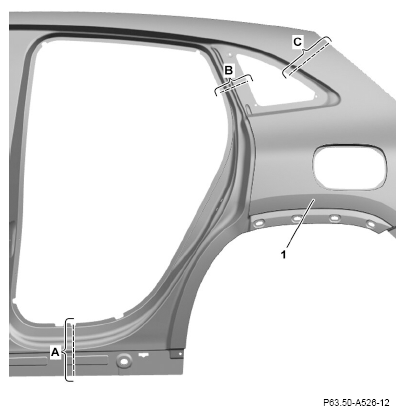

Shown on model 247.0

Courtesy of MERCEDES-BENZ USA

1. Mark the separating points on the rear fender (1) (areas A, B and C).

   Use separating points from vehicle.

   Observe overlap of approx. 5 mm.

2. Separate the separating points on the rear fender (1) (areas A, B and C).

   Courtesy of MERCEDES-BENZ USA

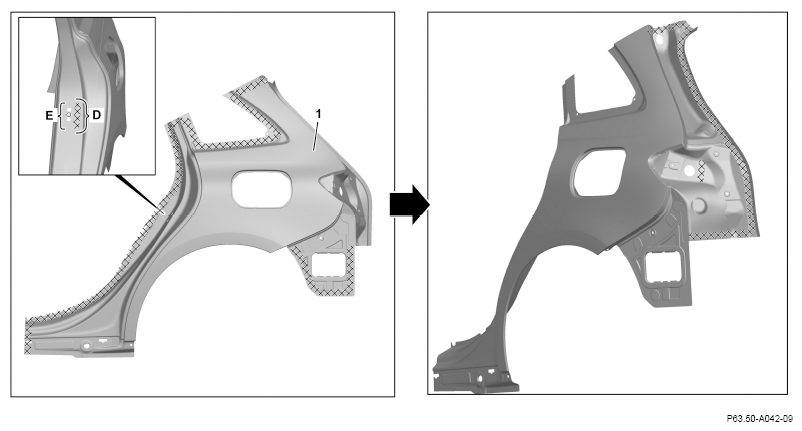

   Shown on model 247.6/7

   Courtesy of MERCEDES-BENZ USA

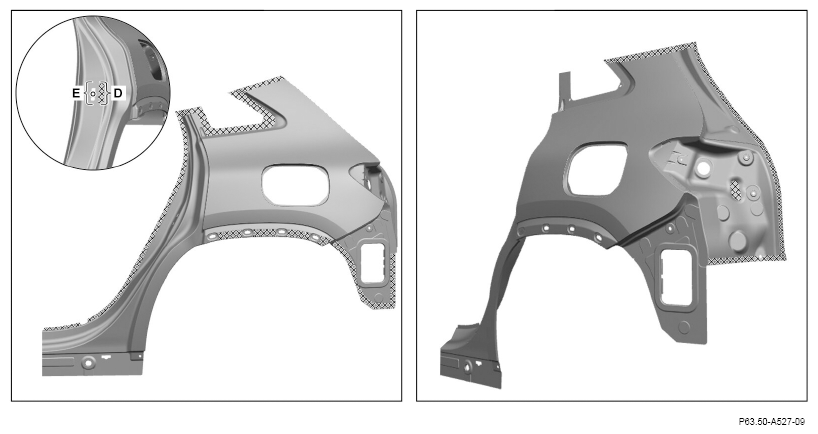

   Shown on model 247.0

3. Drill holes with ø7 mm (area E).
4. Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas.

   Grind bonding surface (area D) from rear down to bare metal.

   Grind spot weld flanges down to bare metal on both sides.

5. Remove grinding dust and drill chips.
6. Apply zinc dust paint to insides of spot weld flanges.

   Bonding surface (area D) may not be coated with zinc dust paint.

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surface (area D).
