Remove/Install Electric Parking Brake Actuator Motor - AR42.20-P-0600MFA
Model 118, 177, 243, 247
Shown on model 177
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Lift vehicle with lifting platform. | AR00.60-P-1006A | |
| 2 | Move brakepad on rear axle into assembly position. | AR42.10-P-1710-02MFA | |

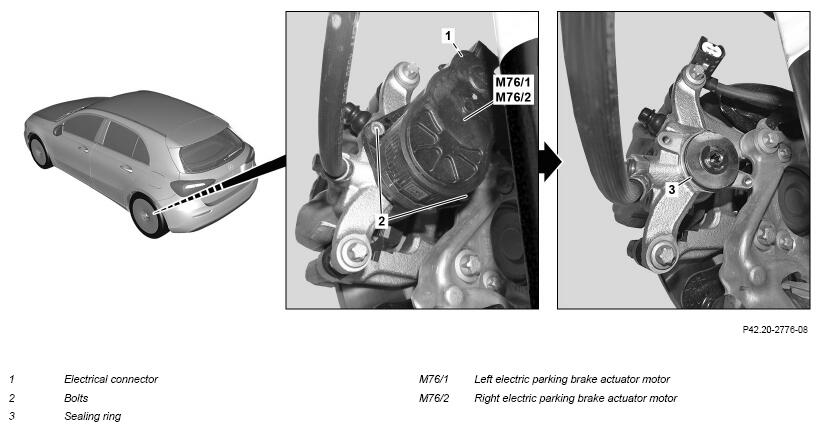

| 3 | Release electrical connector (1), disconnect it then place it to one side. | ||
| 4 | Remove bolts (2) and remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | *BA42.10-P-1005-12X | |
| 5 | Install in the reverse order. | ||
| Concluding tasks | |||
| 6 | Perform brake test on test stand. | ||
| Model 118, 177, 247 | AP42.00-P-4290BA | ||
| Model 243 | AP42.00-P-4290EQ |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 118 with code U54 (Compound-link axle) | Model 118 with code U55 (Multi-link axle) | ||
|---|---|---|---|---|---|
| BA42.10-P-1005-12X | Bolt, actuator motor to brake caliper | M6 | Nm | 10 | 10 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 177 with code U54 (Compound-link axle) | Model 177 with code U55 (Multi-link axle) | ||
|---|---|---|---|---|---|
| BA42.10-P-1005-12X | Bolt, actuator motor to brake caliper | M6 | Nm | 10 | 10 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 243 | Model 247 with code U54 (Compound-link axle) | ||
|---|---|---|---|---|---|
| BA42.10-P-1005-12X | Bolt, actuator motor to brake caliper | M6 | Nm | 10 | 10 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 247 with code U55 (Multi-link axle) | ||
|---|---|---|---|---|
| BA42.10-P-1005-12X | Bolt, actuator motor to brake caliper | M6 | Nm | 10 |
